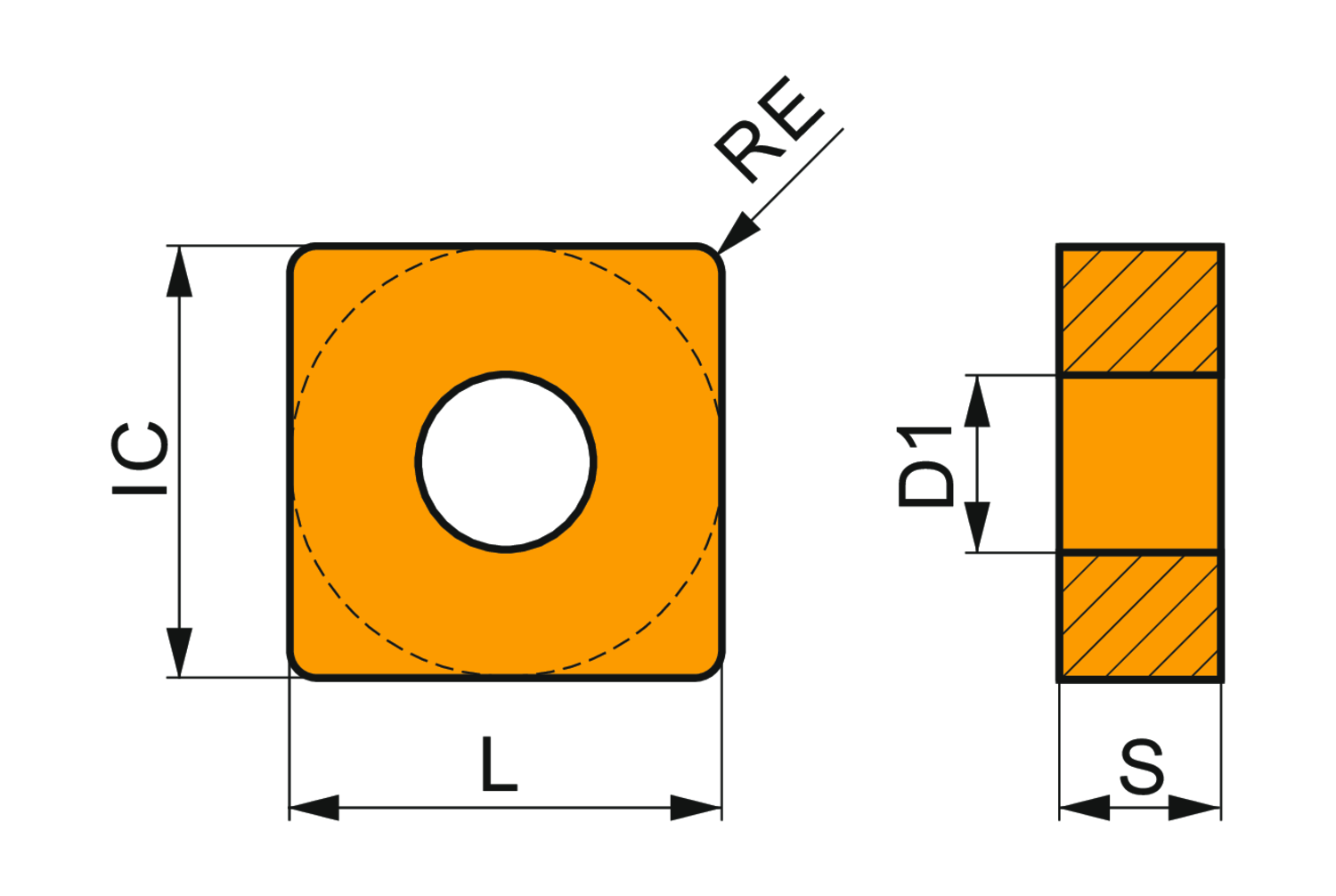

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for heavy to extra heavy machining of steels

• Product Name ISO: SNMM 190624E-HR:T9415
• Ordering Code ANSI: SNMM 646-HR:T9415
• EDP Number: 8244295
• Coating: T9415
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
