Double-sided negative turning insert, triangular with inscribed circle diameter of 5/8", 1/4" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for heavy to extra heavy machining of steels
- Product Name ISO: TNMM 270624E-HR:T9226
- Ordering Code ANSI: TNMM 546-HR:T9226
- EDP Number: 6931891
- Coating: T9226
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

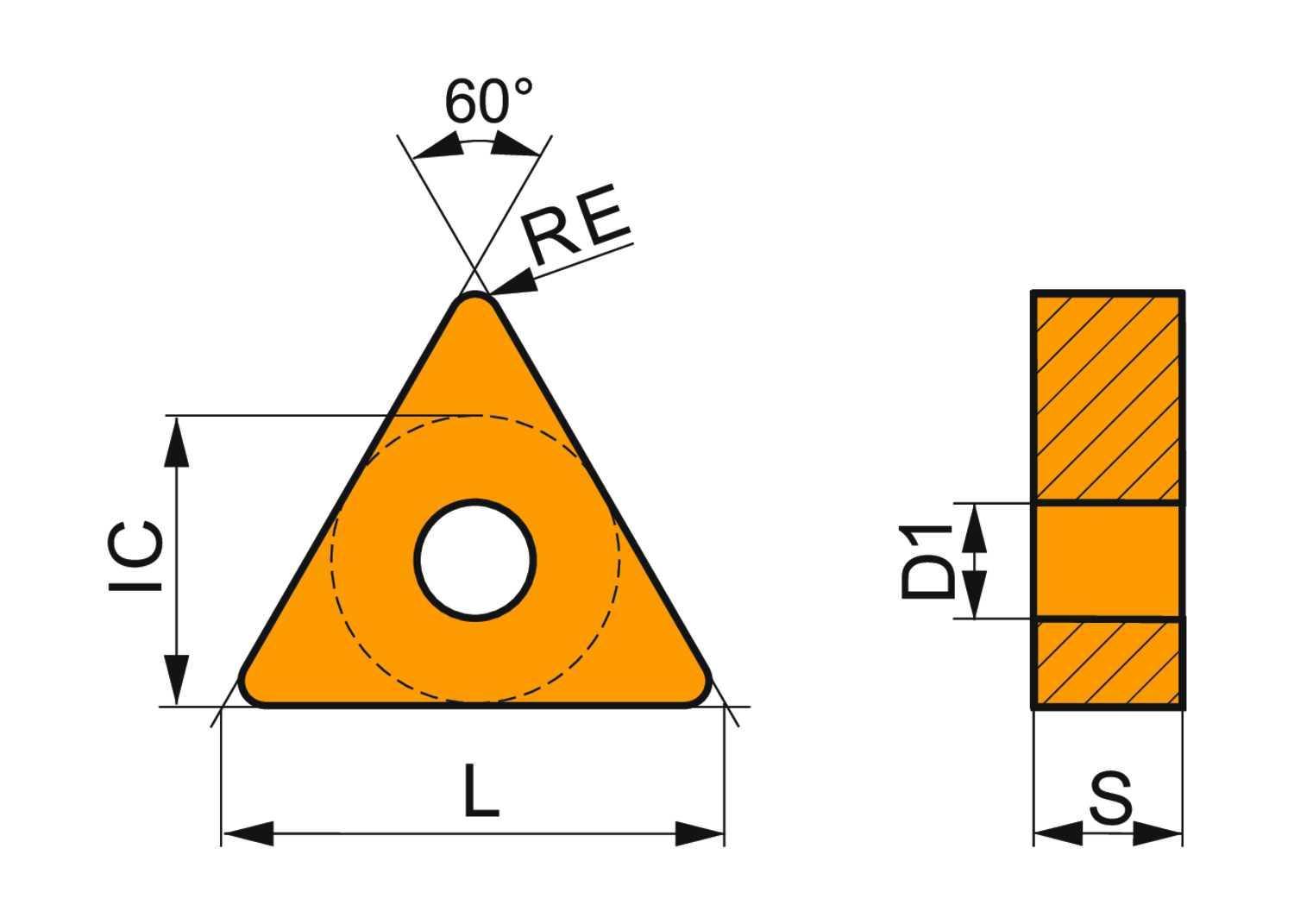

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8.9 |
| Corner Radius (Mm.) | 2.4 |
| Fixing Hole Diameter (Mm.) | 6.35 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.35 |
| Insert Geometry | Negative |
| Coating | T9226 |
