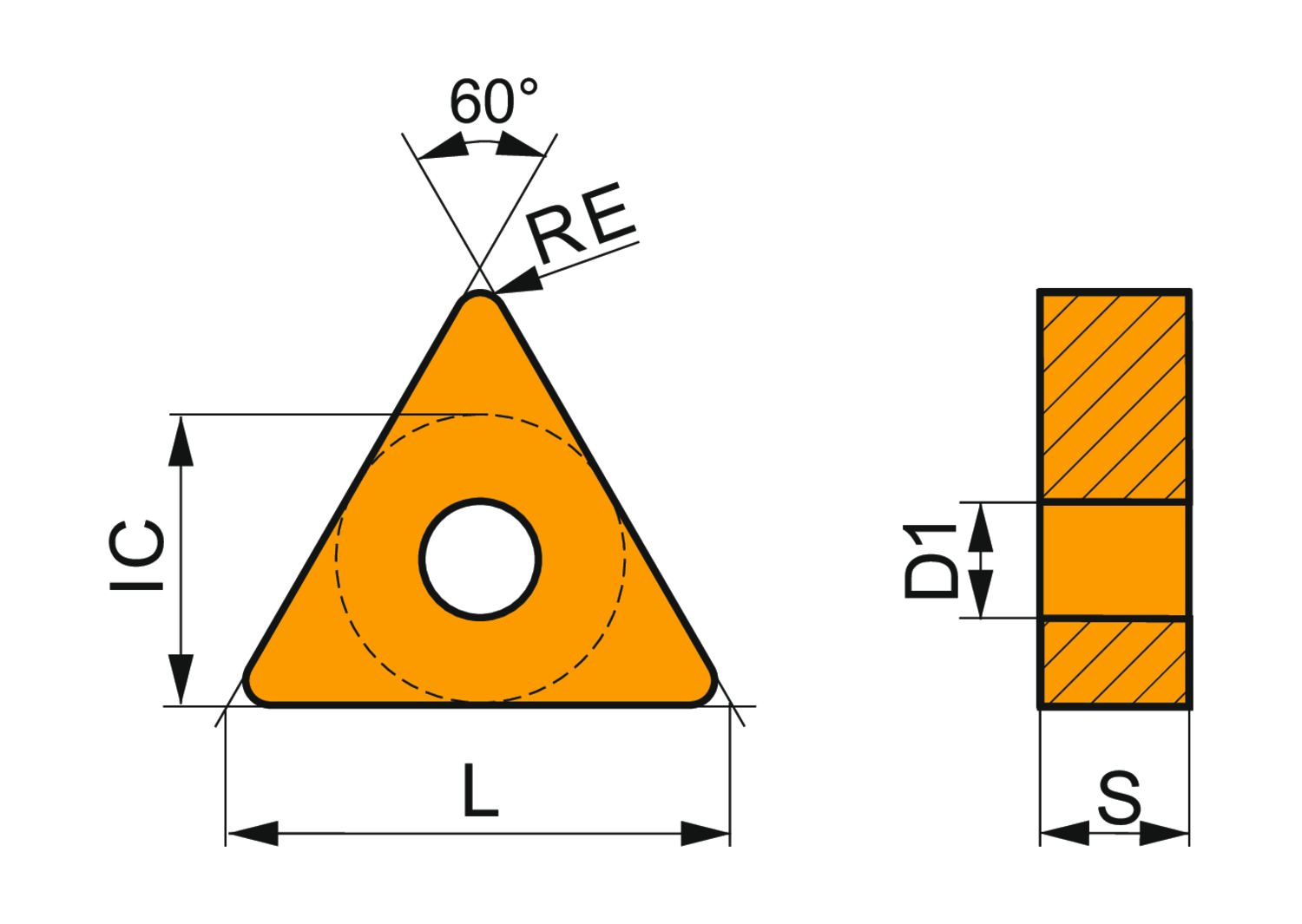

Double-sided negative turning insert, triangular with inscribed circle diameter of 5/8", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to heavy machining of steels and stainless-steels
- Product Name ISO: TNMG 270612E-RM:T9325
- Ordering Code ANSI: TNMG 543-RM:T9325
- EDP Number: 6926955
- Coating: T9325
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8.9 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 6.35 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.35 |
| Insert Geometry | Negative |
| Coating | T9325 |
