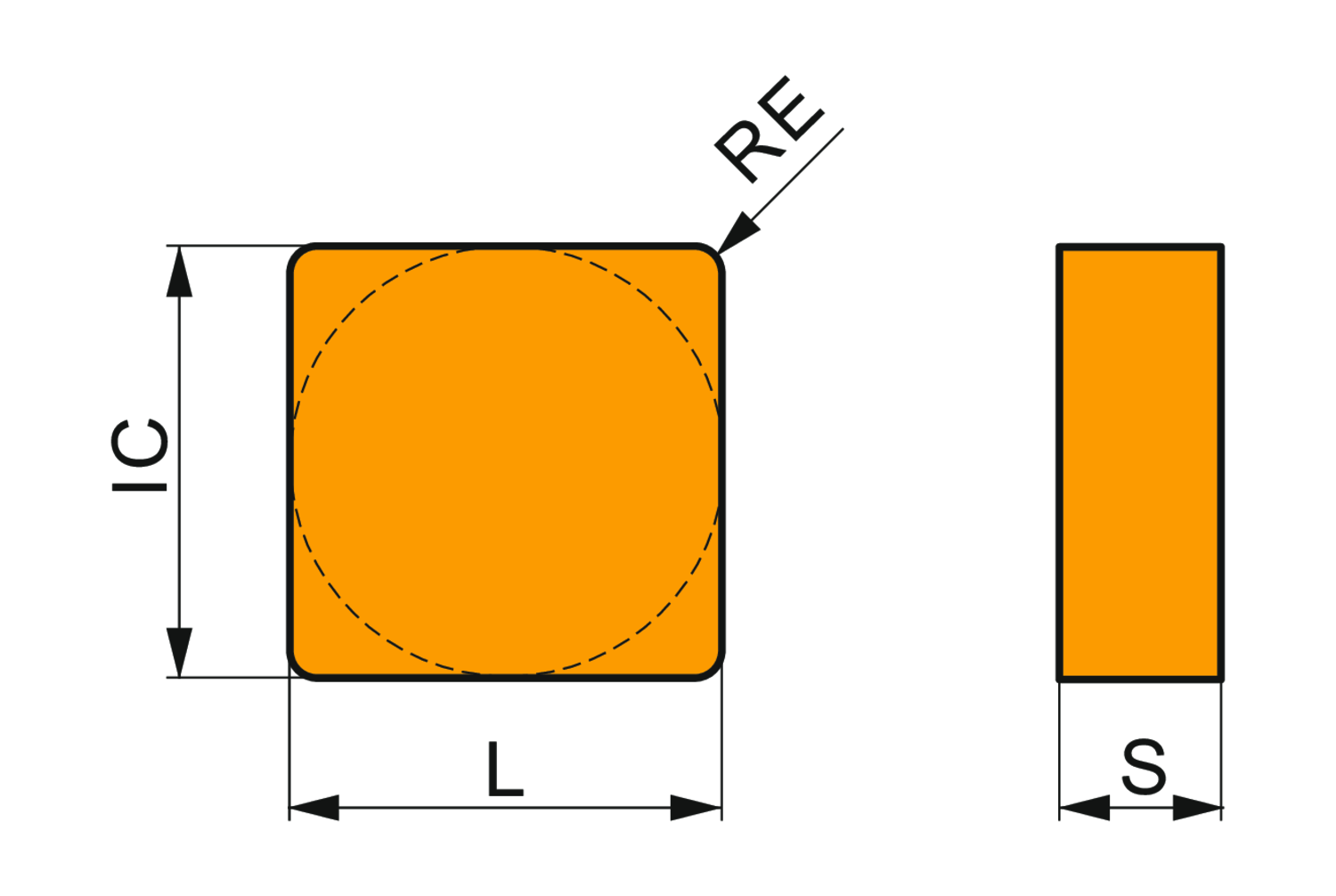

Double-sided turning insert, square, plain with inscribed circle diameter of 1/2", 5/16" thick, 3/64" nose radius, indexing accuracy according to ISO-tolerance class-G, cutting edges with facet T-land -20°/0.004", in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons
- Product Name ISO: SNGN 120712 T01020:TC100
- Ordering Code ANSI: SNG 453 T00420:TC100
- EDP Number: 6755443
- Coating: TC100
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6 |
| Corner Radius (Mm.) | 1.2 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.236 |
| Insert Geometry | Negative |
| Coating | TC100 |
