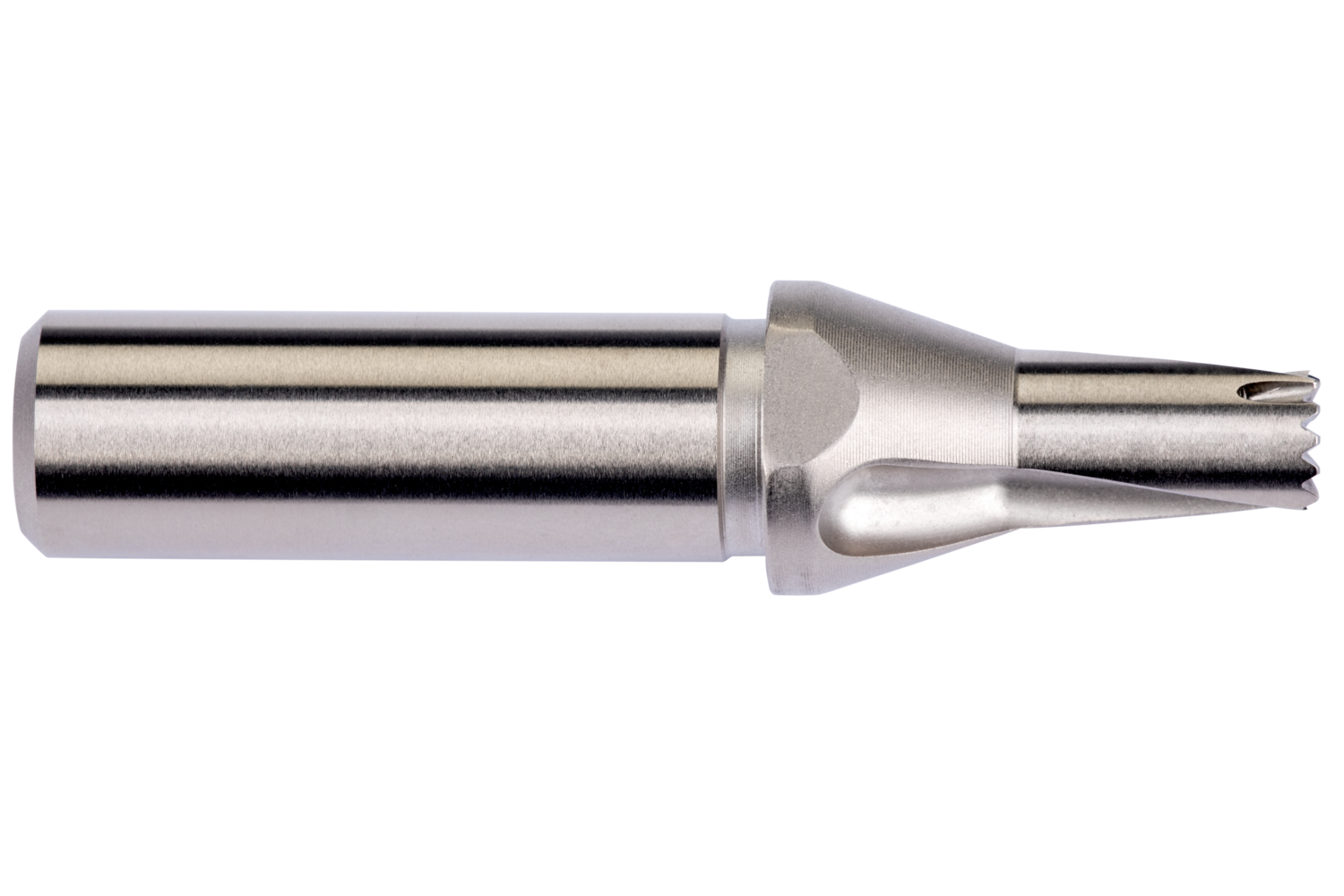

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 1.3/16" with an overall length of 133.4mm and flute length of 58.4mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 1.1811 up to 1.2008"
- Product Name ISO: H8511.3/16
- Ordering Code ANSI: H8511.3/16
- EDP Number: 7833356
- Coating: Nickel Plated
- Material Code (BMC): HSS

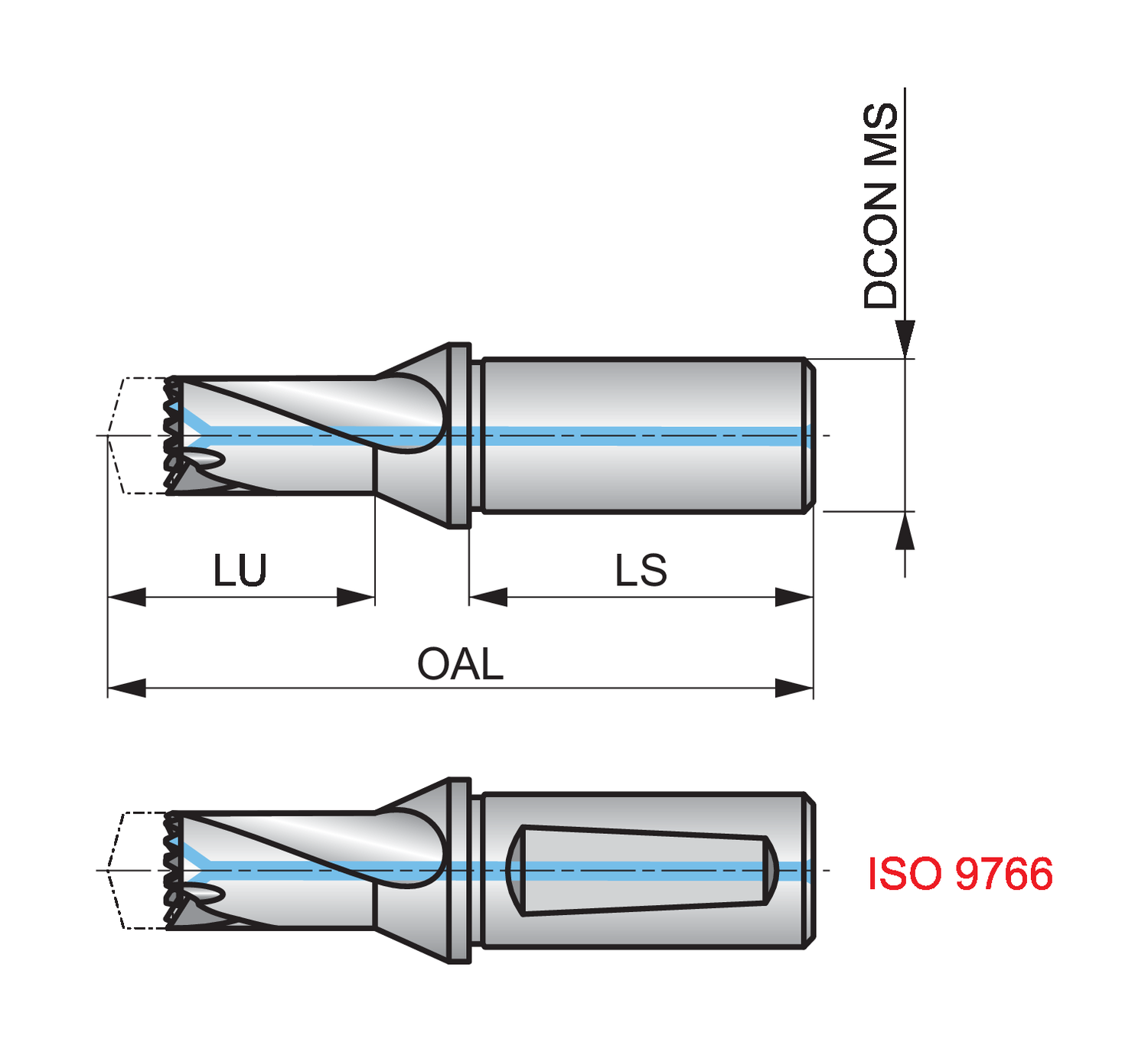

| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 133.4 |
| Usable Length (Mm.) | 58.4 |
| Shank Length (Mm.) | 60.33 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 5.252 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
