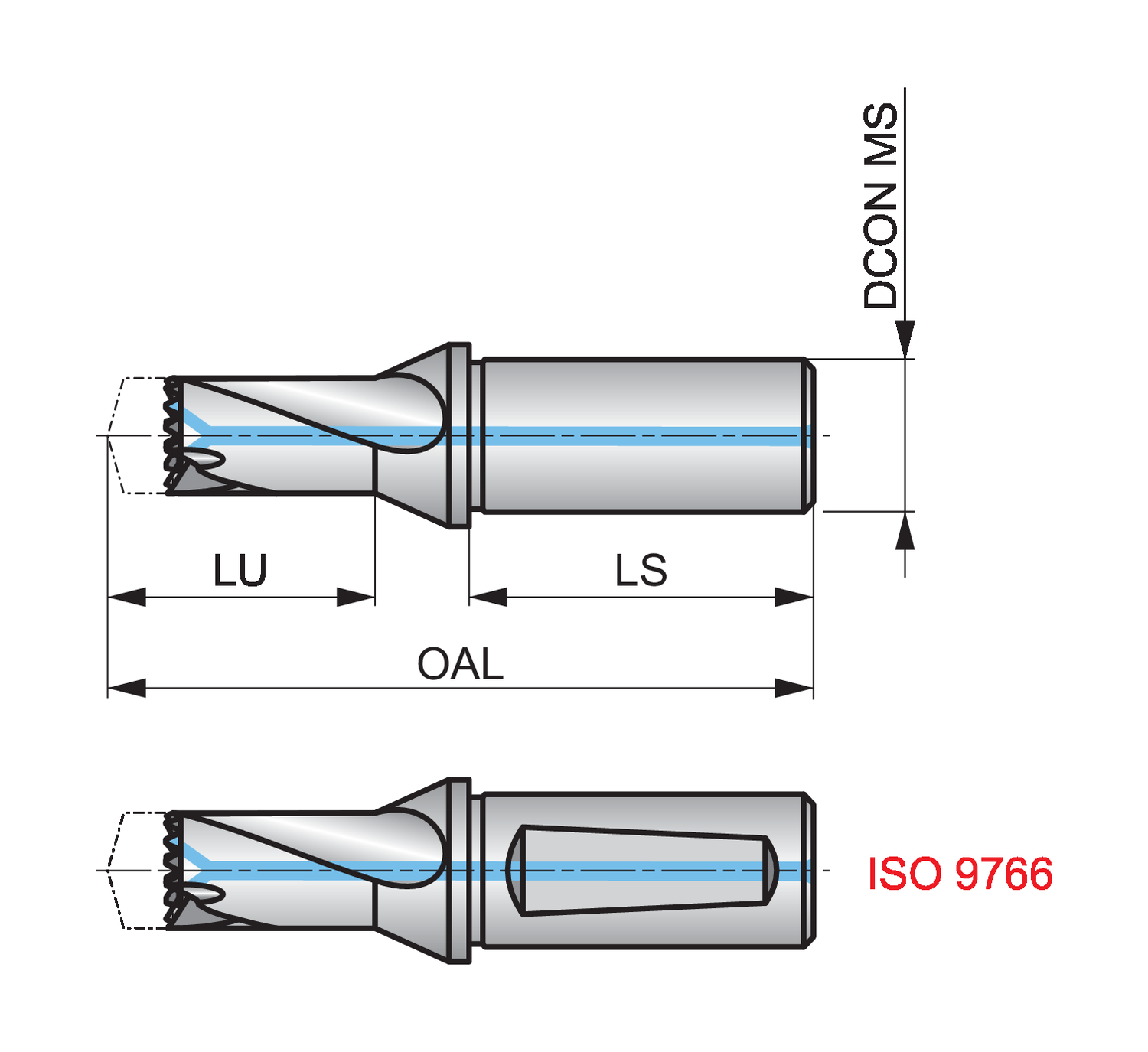

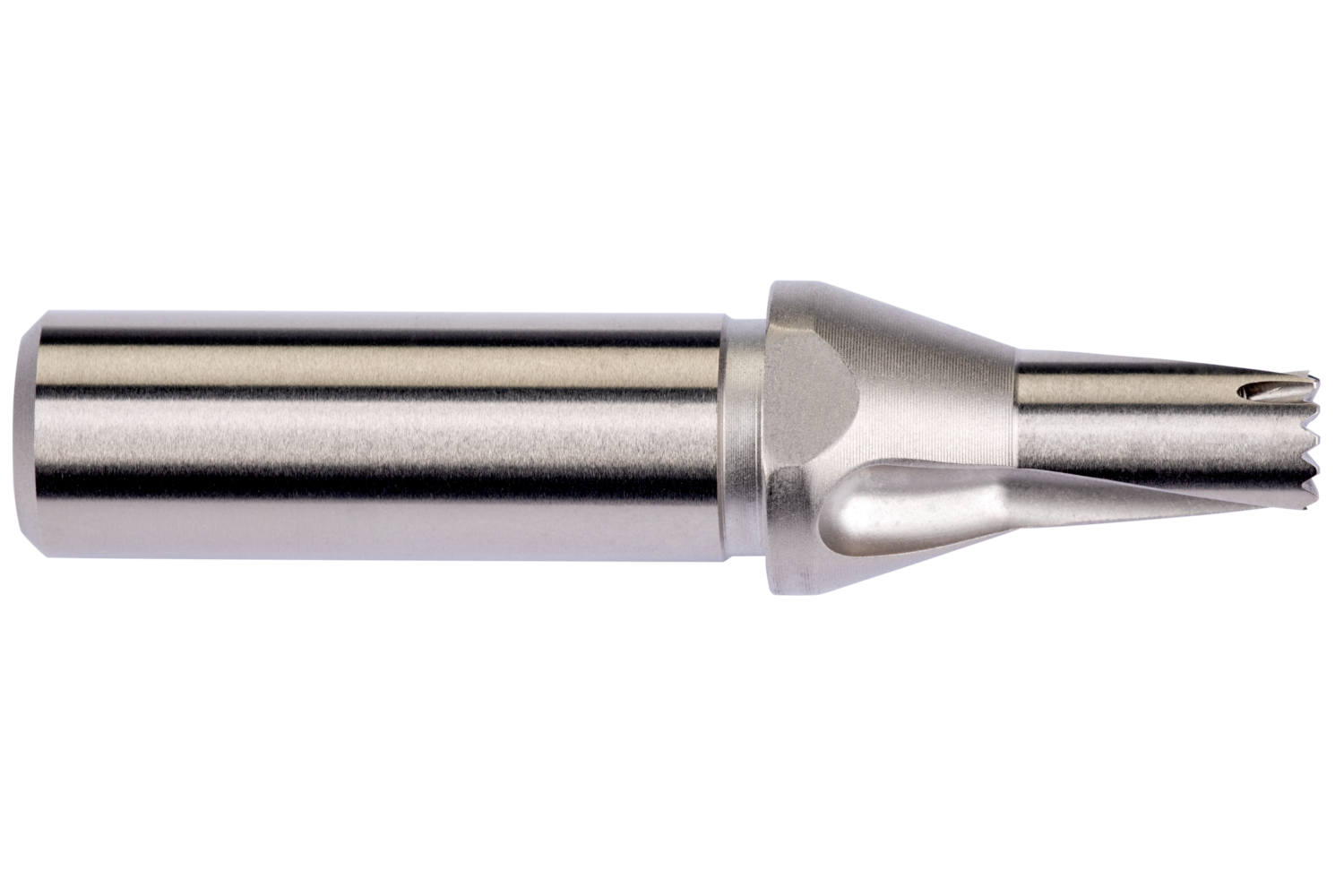

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 11/16" with an overall length of 101.4mm and flute length of 36.4mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.6535 up to 0.689"
- Product Name ISO: H85111/16
- Ordering Code ANSI: H85111/16
- EDP Number: 7833334
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 19.05 |
| Overall Length (Mm.) | 101.4 |
| Usable Length (Mm.) | 36.4 |
| Shank Length (Mm.) | 50.8 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 3.9921 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
