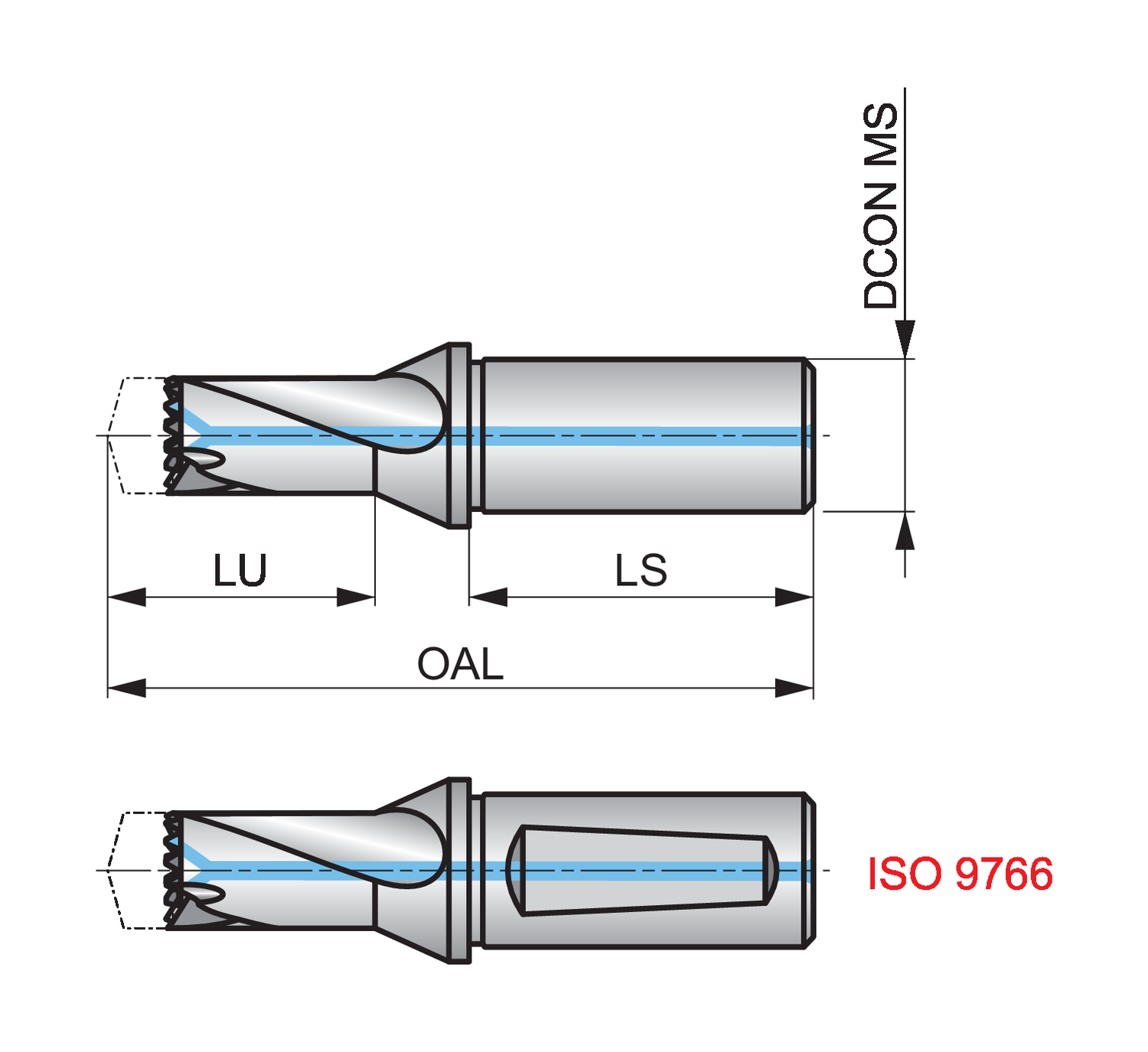

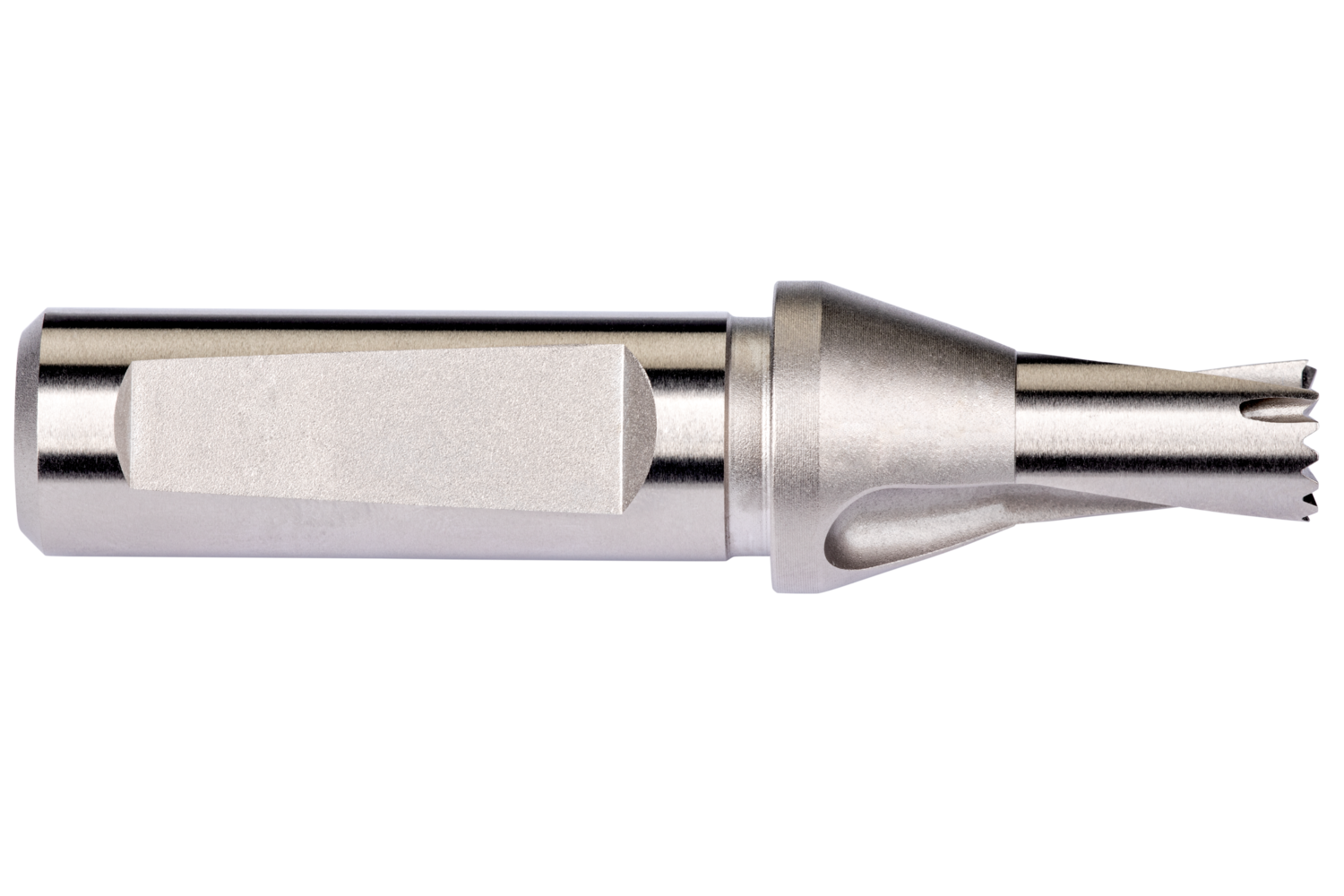

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 17.0mm with an overall length of 101.4mm and flute length of 36.4mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 16.6 up to 17.5mm
- Product Name ISO: H85117.0
- Ordering Code ANSI: H85117.0
- EDP Number: 7833338
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 20 |
| Overall Length (Mm.) | 101.4 |
| Usable Length (Mm.) | 36.4 |
| Shank Length (Mm.) | 50 |
| Connection Diameter (In.) | 0.7874 |
| Overall Length (In.) | 3.9921 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
