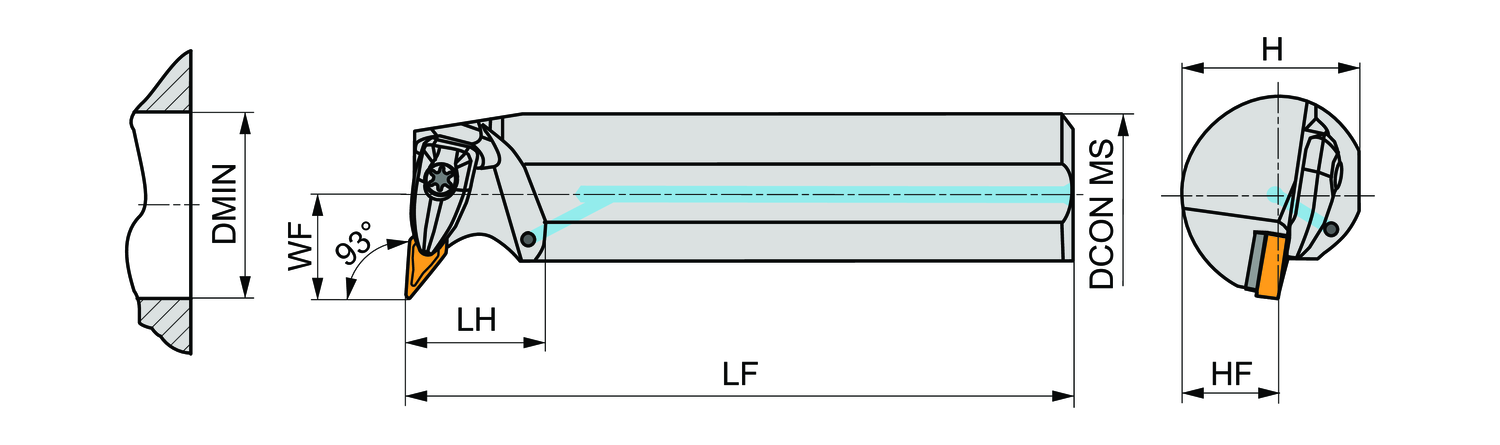

Double clamp boring bar for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

• Product Name ISO: A40T-DVUNL 16
• Ordering Code ANSI: A40T-DVUNL 16
• EDP Number: 7028497
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
