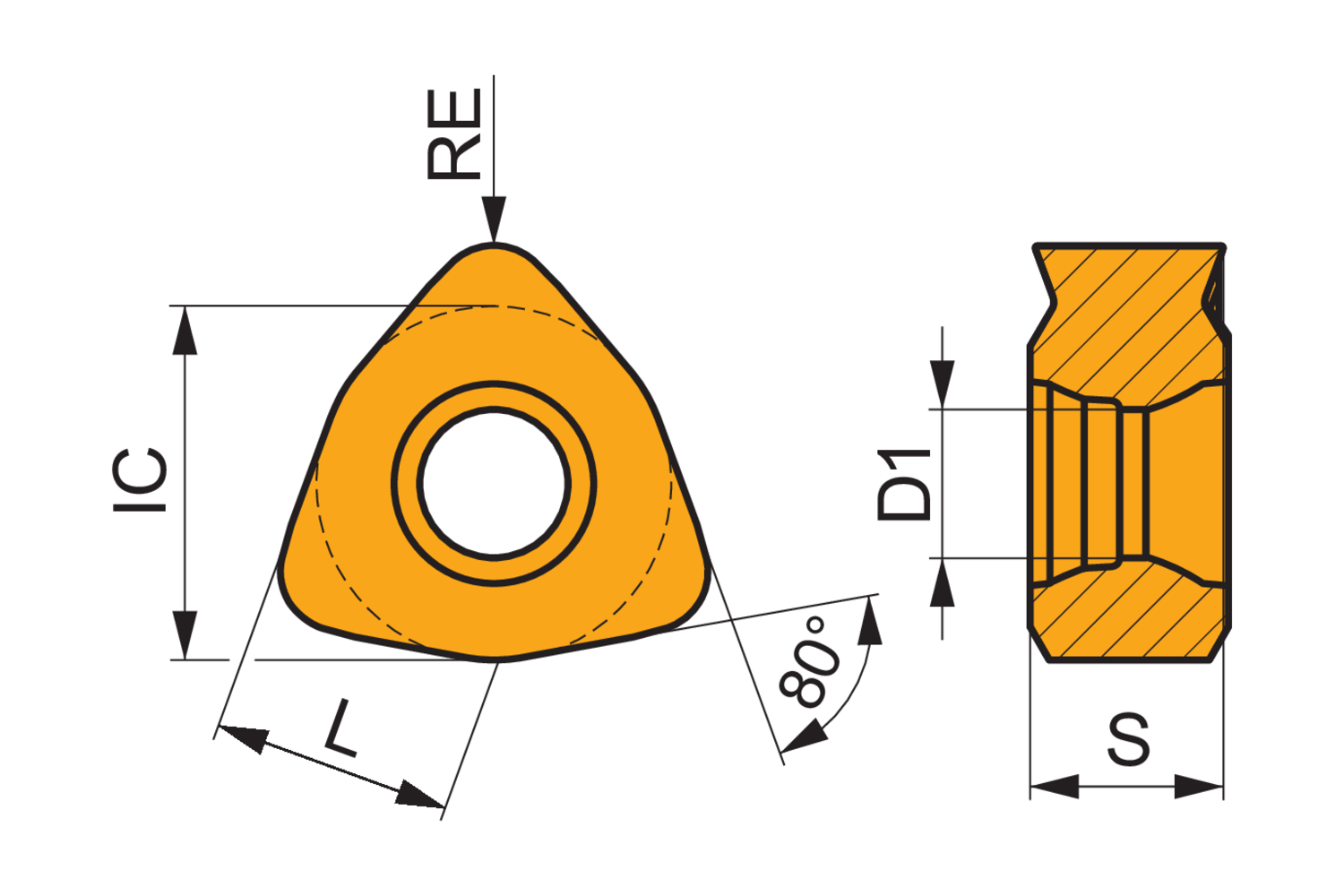

Double-sided milling insert WNHX 0403, 80° trigon and wiper design for a maximum depth of cut of .0787", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SWN04C
- Product Name ISO: WNHX 040305ER-WM:M8330
- Ordering Code ANSI: WNHX 040305ER-WM:M8330
- EDP Number: 7639271
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.5 |
| Fixing Hole Diameter (Mm.) | 2.6 |
| Inscribing Circle Dia. (Mm.) | 6.2 |
| Insert Thickness (Mm.) | 3.38 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8330 |
