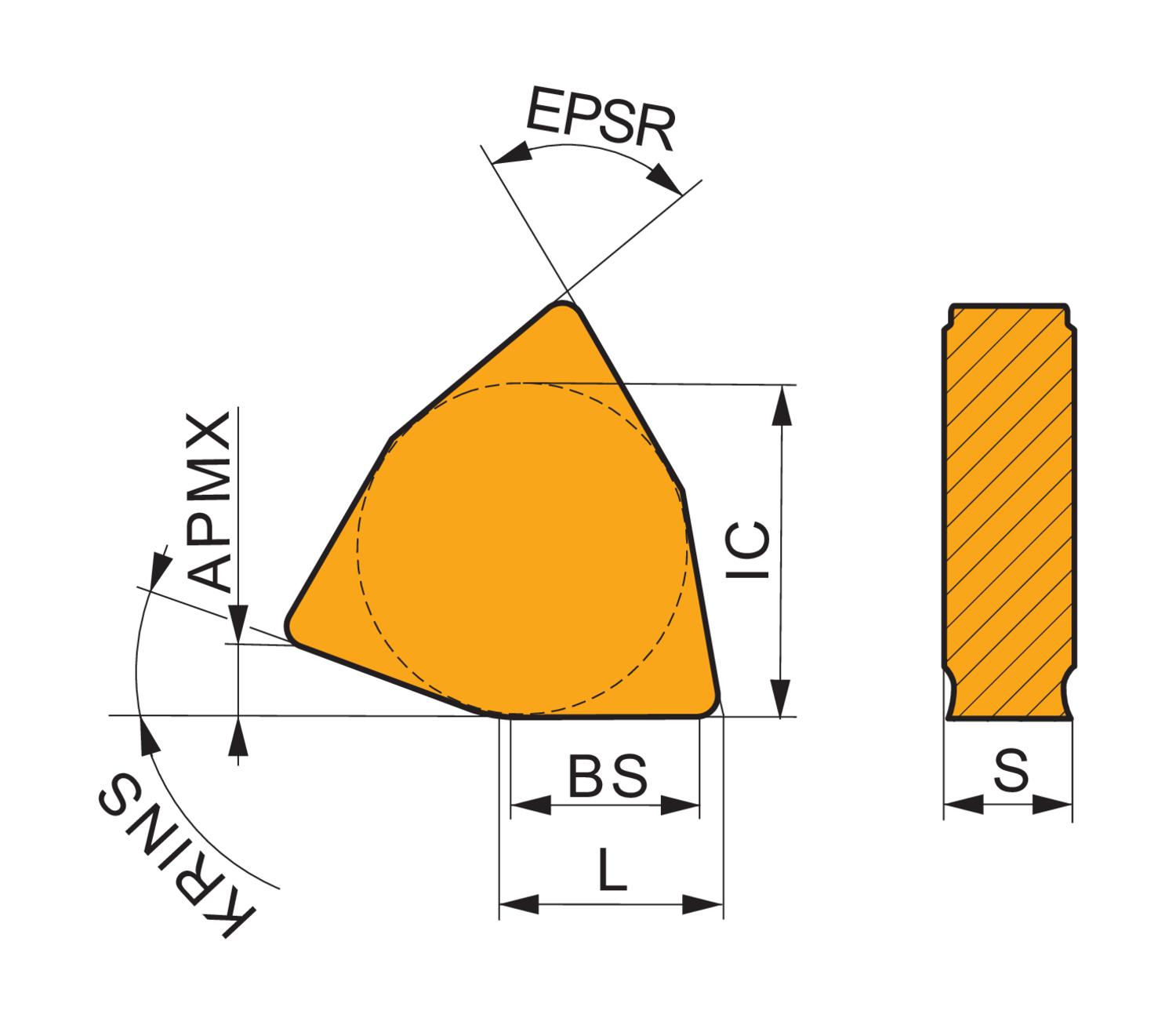

Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 31.75mm, 13mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-M, chip-breaker PM with S01 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for high strength steels
- Product Name ISO: WNMF 201380-PM-S01:T9226
- Ordering Code ANSI: WNMF 201380-PM-S01:T9226
- EDP Number: 6931836
- Coating: T9226
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Inscribing Circle Dia. (Mm.) | 31.75 |
| Insert Thickness (Mm.) | 13 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | T9226 |
