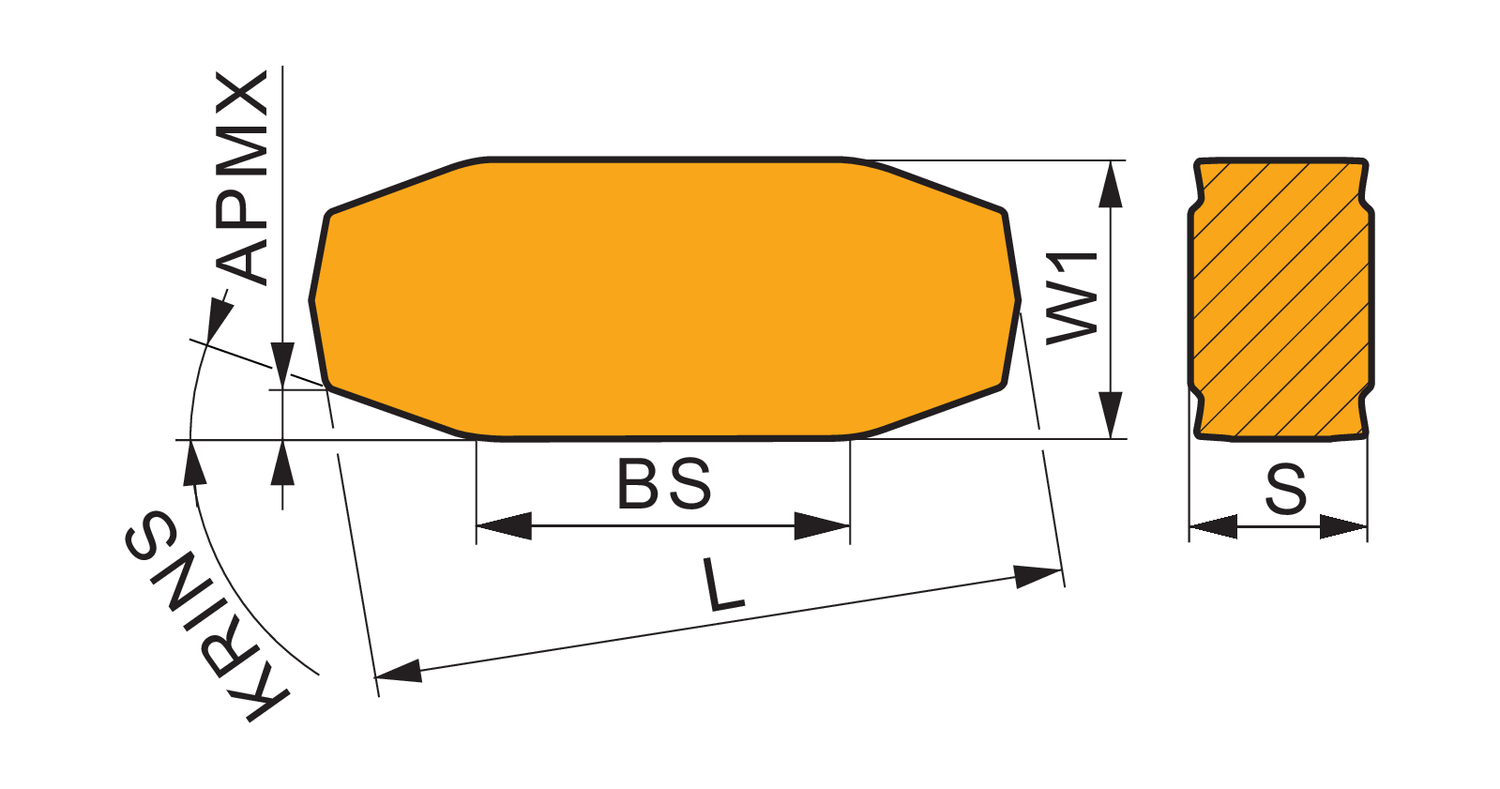

Double-sided negative barpeeling insert, rectangular with a length of 36.5mm, 12mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S02 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide
- Product Name ISO: LNGF 361220-PM-S02:T7325
- Ordering Code ANSI: LNGF 361220-PM-S02:T7325
- EDP Number: 7347217
- Coating: T7325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Insert Thickness (Mm.) | 12 |
| Insert Width (Mm.) | 18 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | T7325 |
