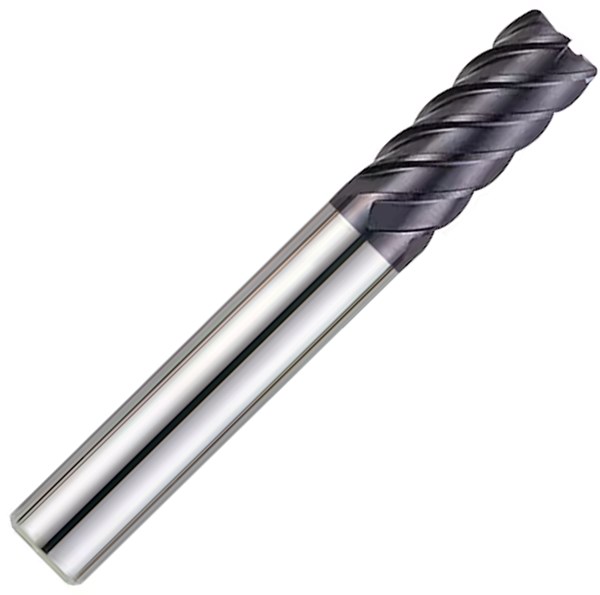

4 FL Standard Length - Series GMF59 V7 Plus Multi Helix Long CR Flat End Mill - 14 (R1)x14x26x83
- Application: P, M, K, S
- High-performance solid carbide construction for durability and consistent cutting in demanding applications
- Optimized for steels, stainless steel, cast iron, and high-temp alloys, making it a versatile production tool
- Designed for high productivity operations like slotting, profiling, and trochoidal milling with reduced vibration
| Quick Ship Items | No, but I will Ship Soon |
| Number of Flutes RH | 4 |
| Diameter Decimal (In.) | 0.55 |
| Diameter Decimal (Mm.) | 14 |
| Shank Diameter Decimal (In.) | 0.55 |
| Shank Diameter Decimal (Mm.) | 14.000 |
| Length of Cut (In.) | 1.024 |
| Length of Cut (Mm.) | 26.000 |
| Overall Length Decimal (In.) | 3.27 |
| Overall Length Decimal (Mm.) | 83 |
| Corner Radius Decimal (In.) | 0.039 |
| Corner Radius Decimal (Mm.) | 1 |
| Shank Type | Flat |
| Helix Angle | 35/37 |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Product Measurement Standard | Metric |
