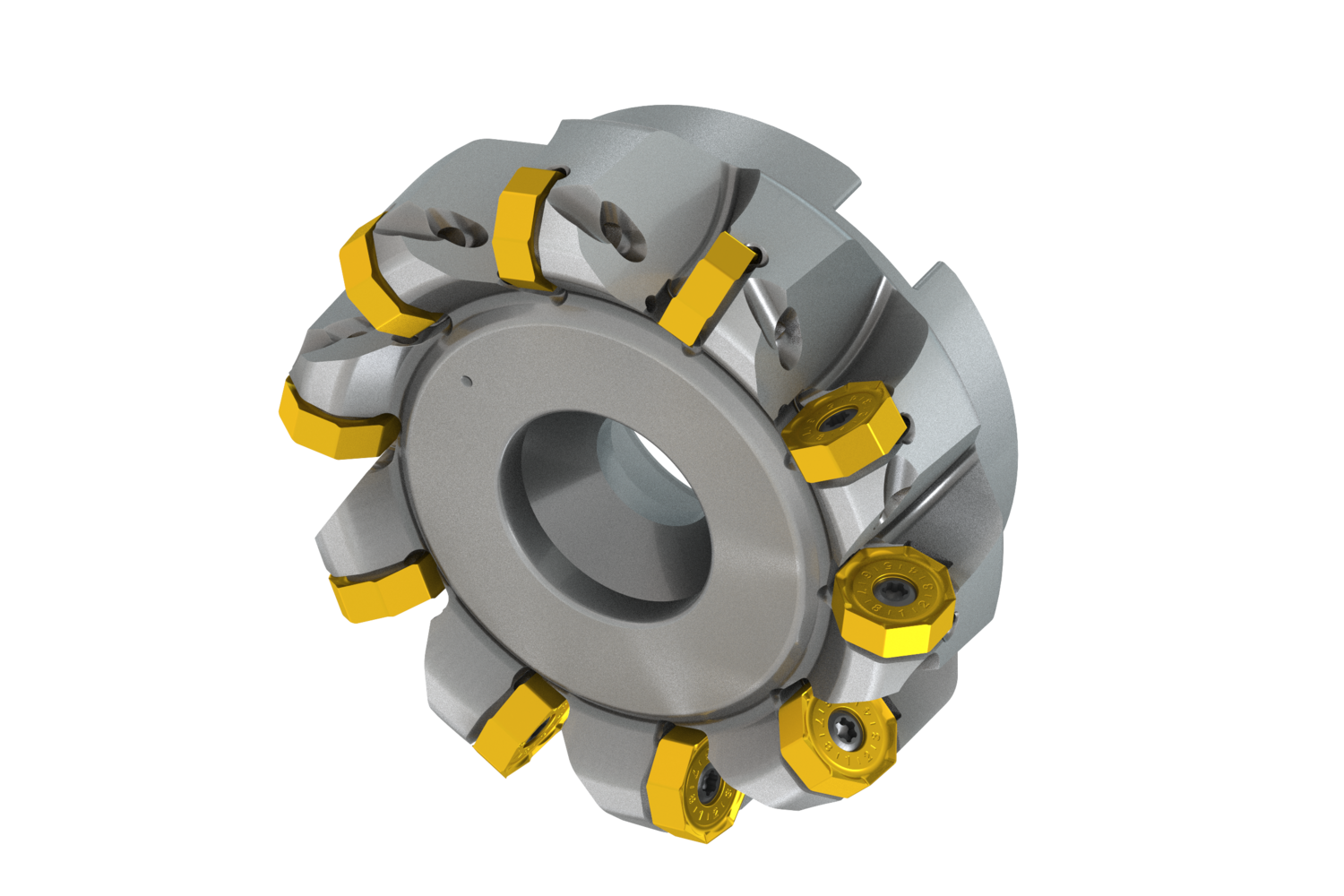

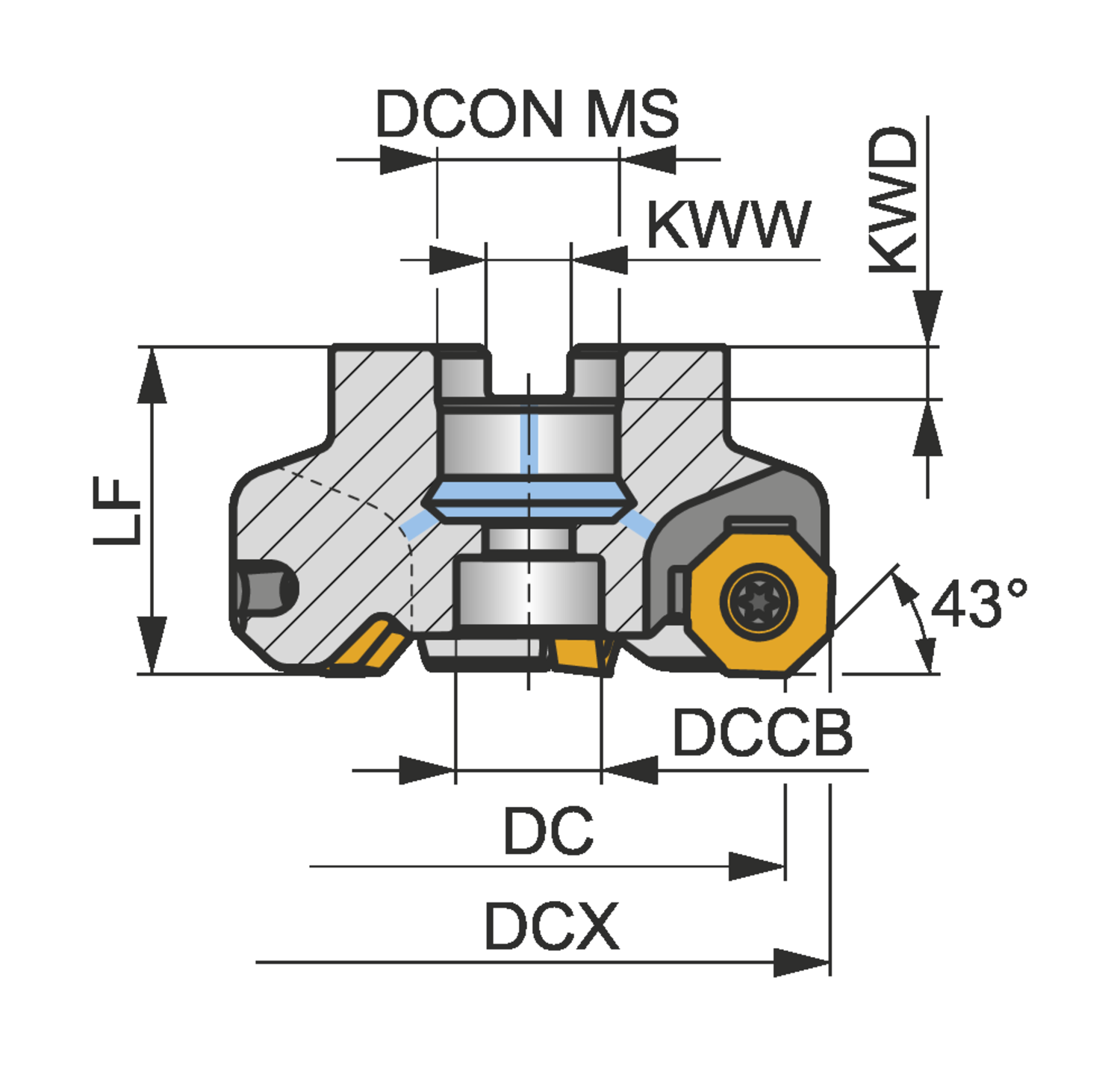

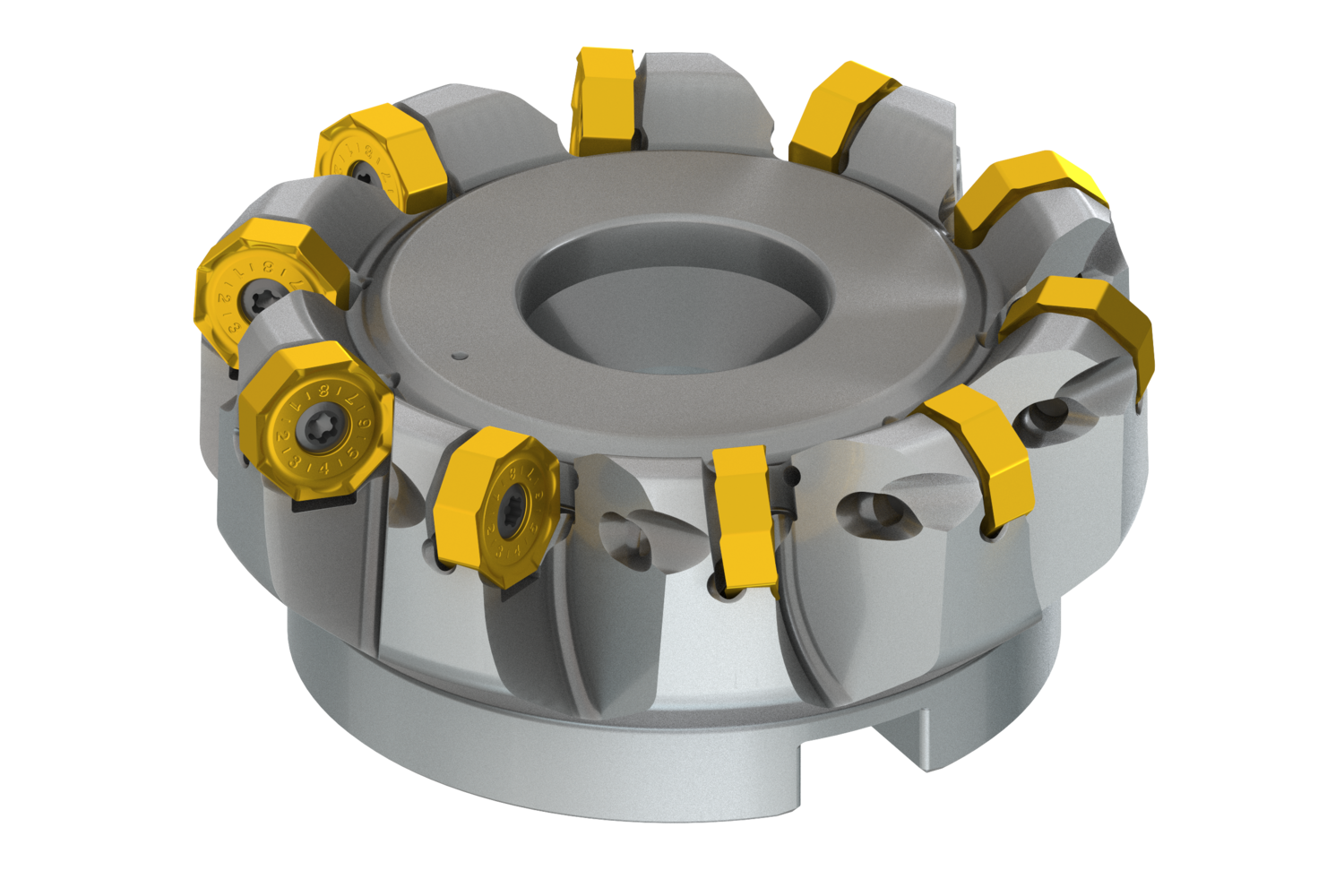

Face mill with double negative geometry which utilises 10 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 4.000" to maximum 4.425" with 43° approach angle and 1.500" connection bore according to DIN 8030-A, 1.969" functional and, through coolant for face milling and chamfering with a maximum depth of cut of ON.. 0,157", SN.. 0,276"
- Product Name ISO: 400A10R-IS45ON06-C
- Ordering Code ANSI: 400A10R-IS45ON06-C
- EDP Number: 8347800
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 101.6 |
| Cutting Diameter (In.) | 4 |
| Connection Diameter (Mm.) | 38.1 |
| Connection Diameter (In.) | 1.5 |
| Shank | Shell Mill DIN 8030 A |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
