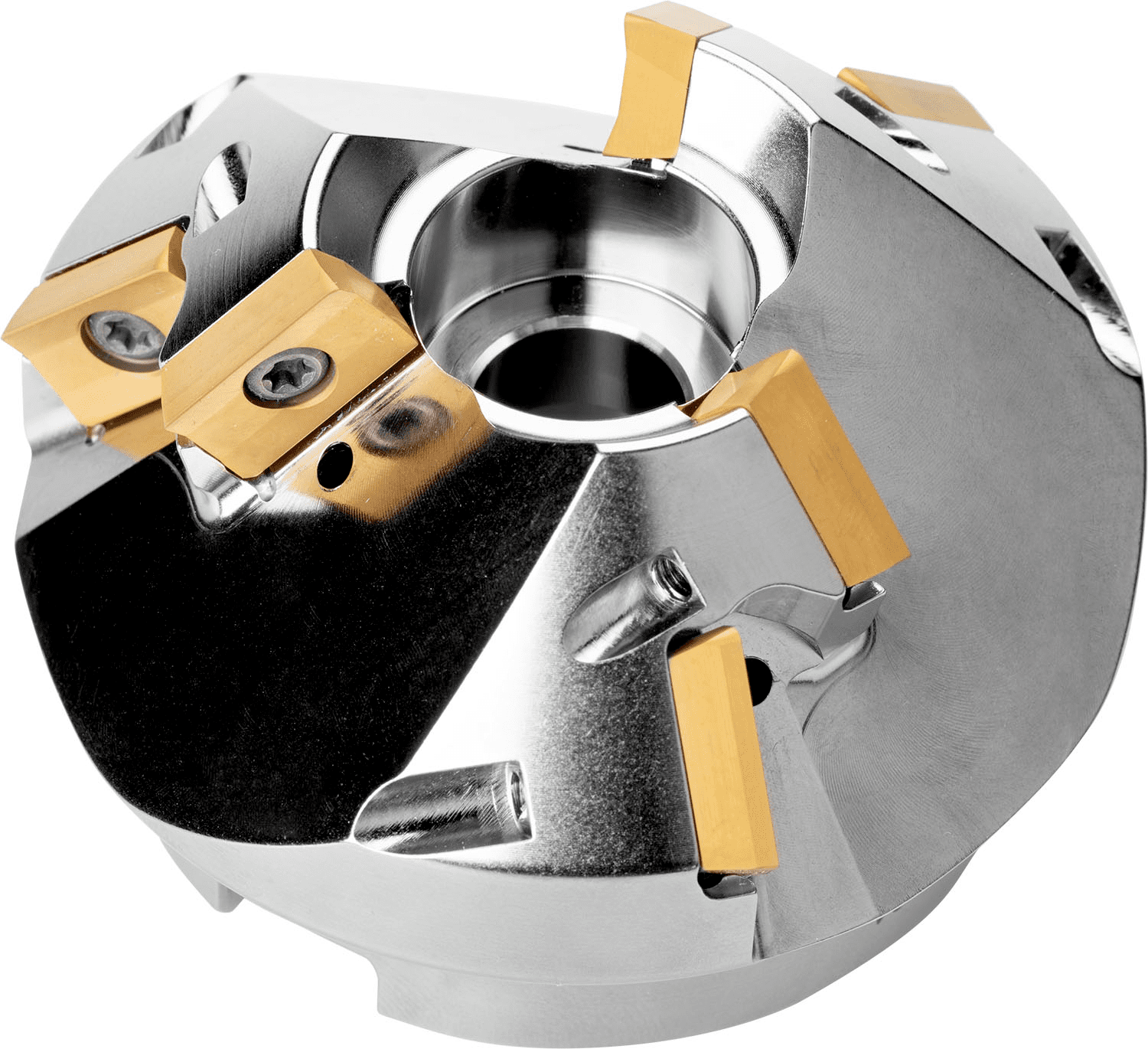

Chamfer mill with positve/negative geometry which utilises 6 off XPHT 1604.. single-sided inserts, cutting diameter 1.500 to maximum 3.035'' with 45° approach angle and 1.000'' connection bore according to DIN 8030, 1.969'' protrusion length, through coolant for chamfering with a maximum depth of cut of .787''
- Product Name ISO: 150T03R-IS45XP16-C
- Ordering Code ANSI: 150T03R-IS45XP16-C
- EDP Number: 6790026
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 38.1 |
Cutting Diameter (In.) | 1.5 |
Connection Diameter (Mm.) | 25.4 |
Max Depth of Cut (In.) | 0.787 |
Connection Diameter (In.) | 1 |
Shank | Shell Mill DIN 8030 – Helical Mill |
Flute Count | 3 |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
