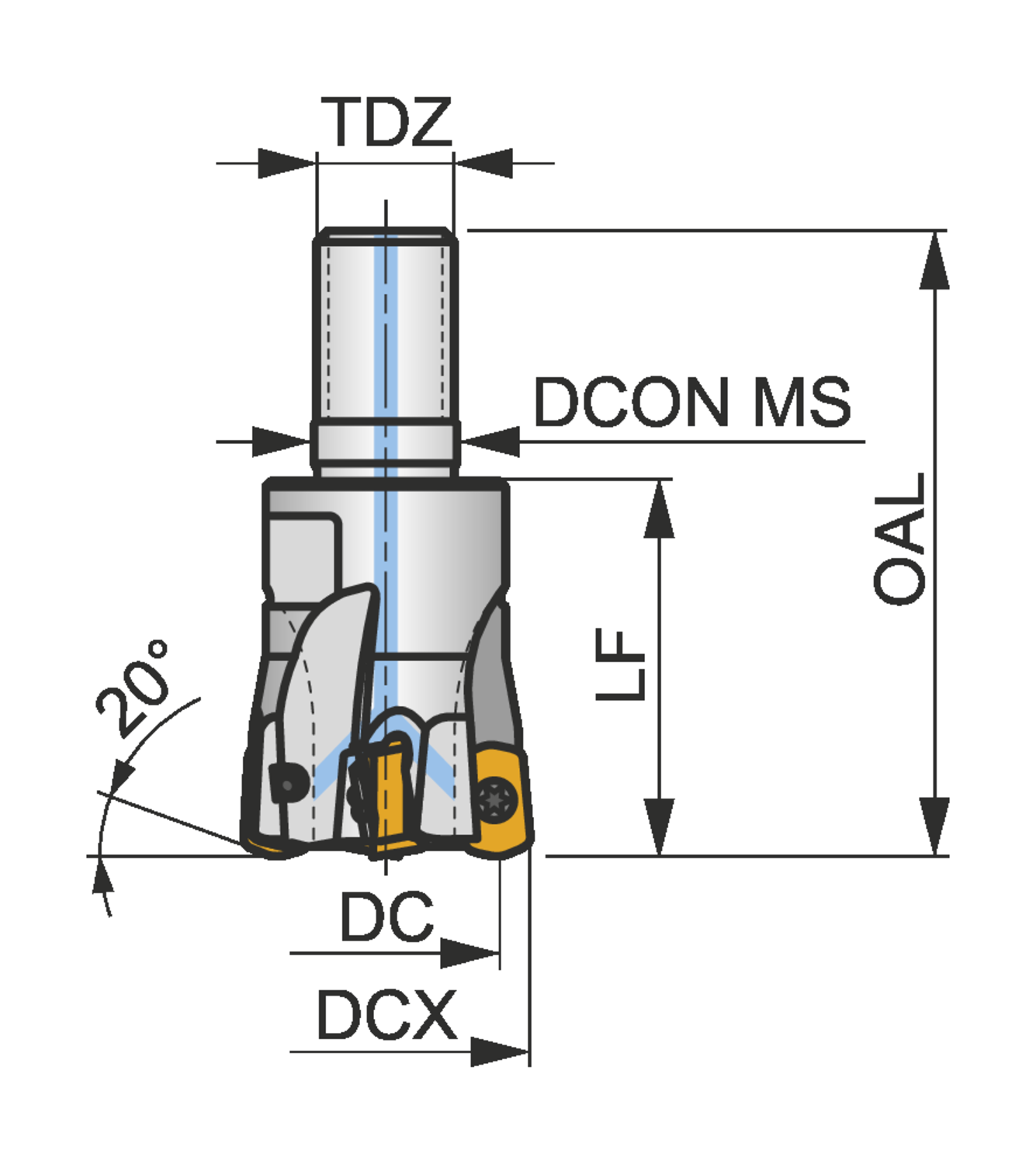

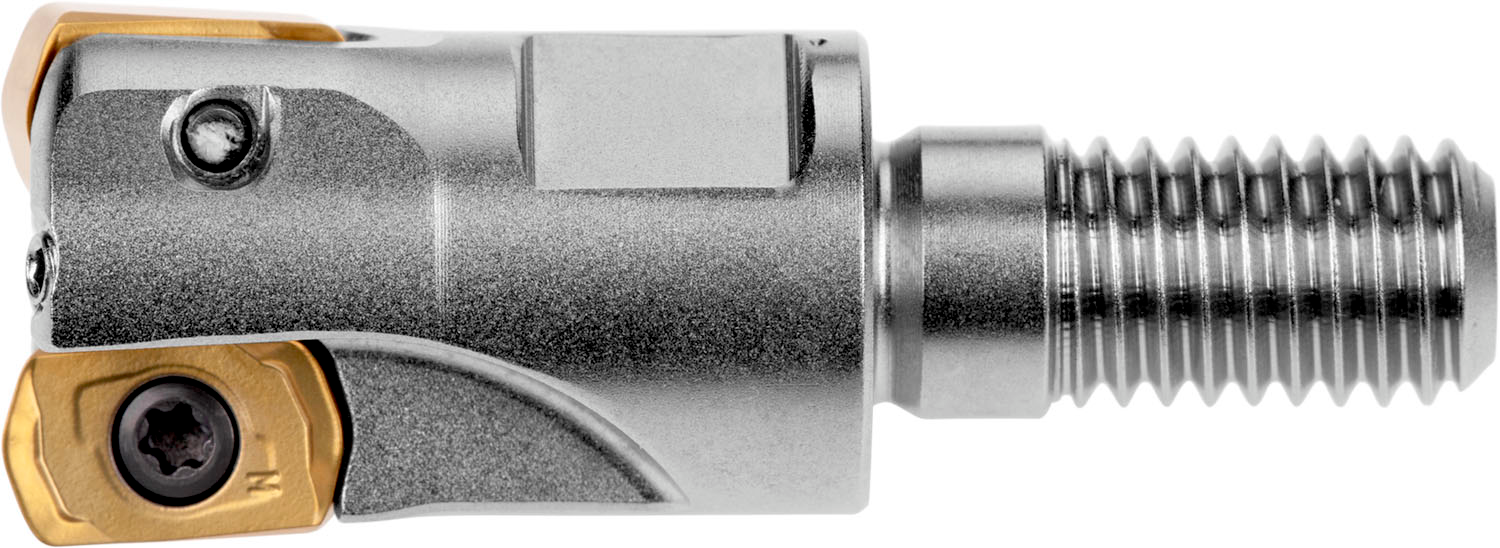

High feed cutter with double negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.00'' with 20° approach angle and M12 threaded shank for standard modular tool-holders, 1.299'' protrusion length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''

• Product Name ISO: 100E5R130M12-ISBN10-C
• Ordering Code ANSI: 100E5R130M12-ISBN10-C
• EDP Number: 7455322
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
