High feed copy milling insert with a diameter of .7874" for a maximum depth of cut of .0394", CE1 geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-PPH
- Product Name ISO: PPHF 200010-CE1:M8330
- Ordering Code ANSI: PPHF 200010-CE1:M8330
- EDP Number: 7447937
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

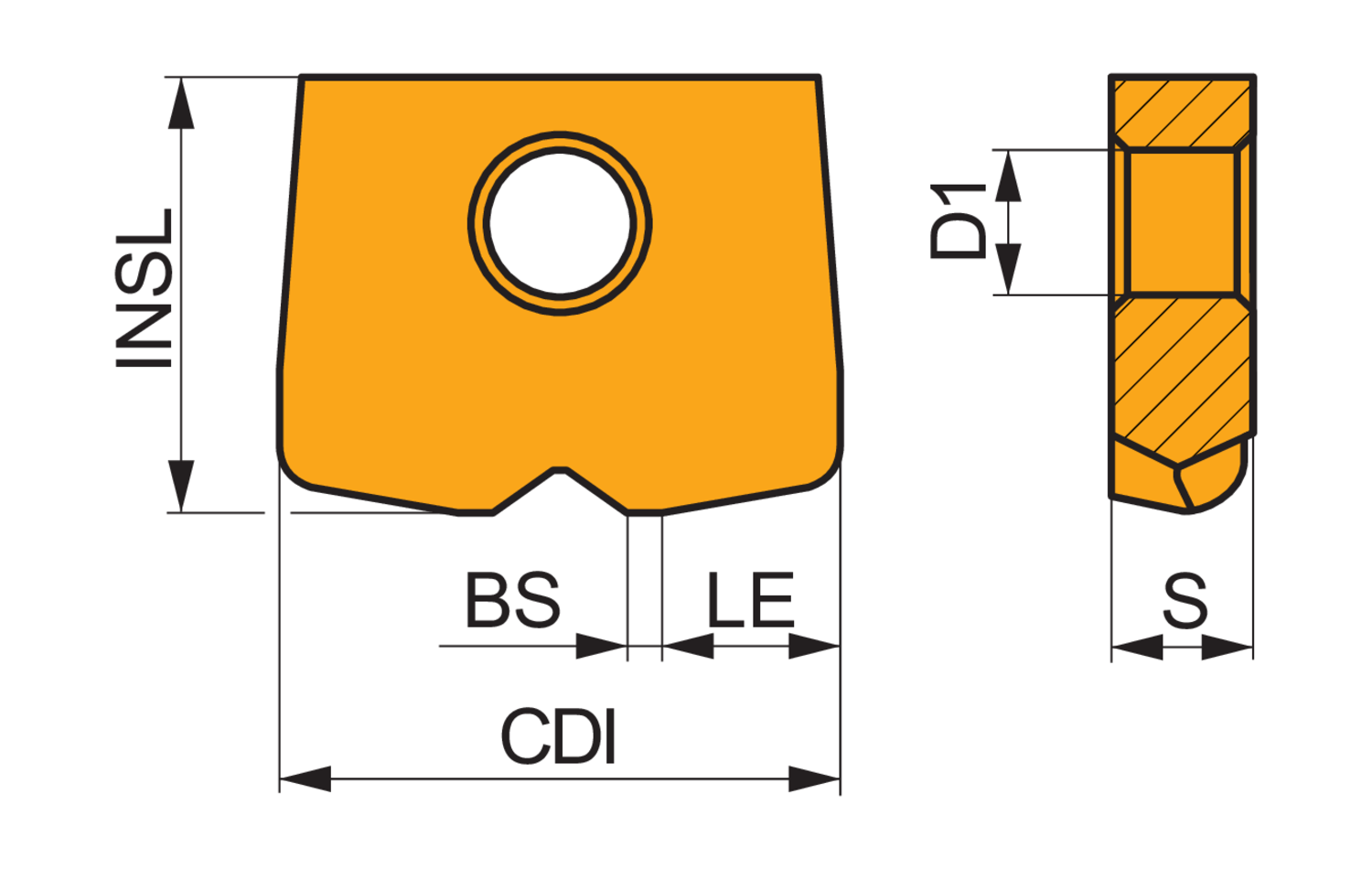

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Fixing Hole Diameter (Mm.) | 5 |
| Insert Length (Mm.) | 15 |
| Insert Thickness (Mm.) | 5 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M8330 |
