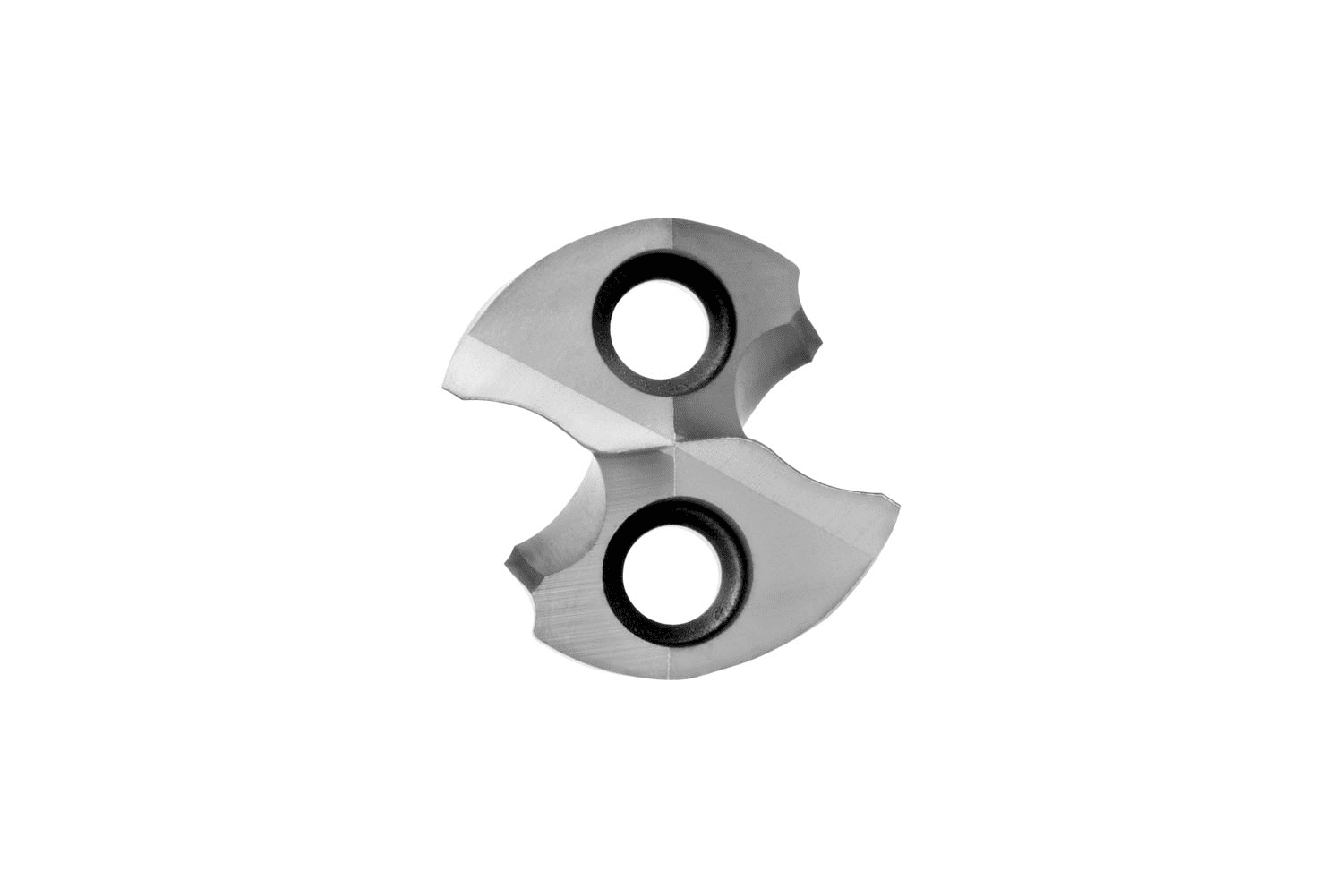

High-performance replaceable drill head HYDRA M, diameter 27.5mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 27mm or 1.3/32", H853 for up to 3xD, H855 for up to 5xD or H858 for up to 8xD
- Product Name ISO: R96027.5
- Ordering Code ANSI: R96027.5
- EDP Number: 0039885
- Coating: Ti-phon
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |

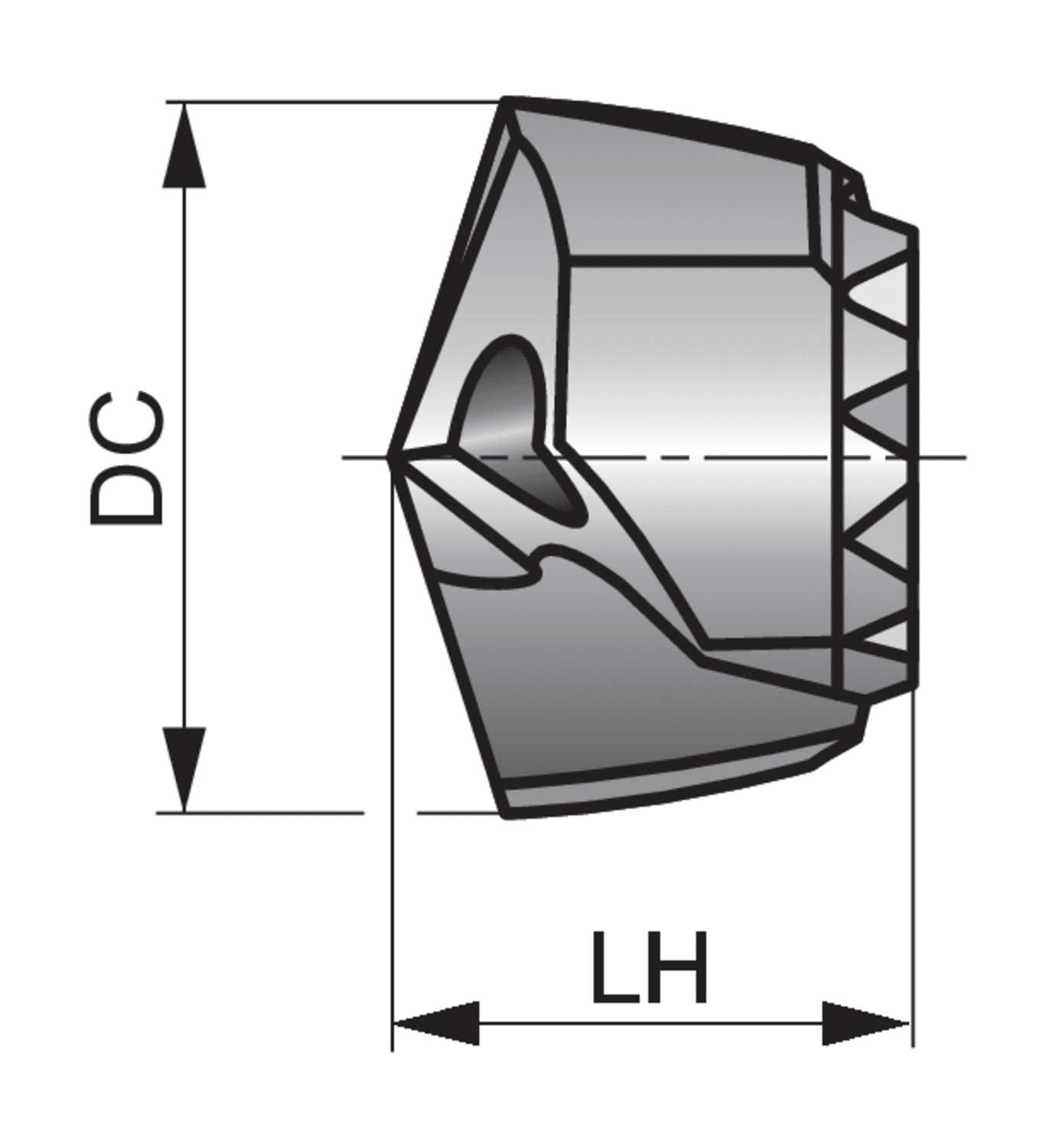

Cutting Diameter (Mm.) | 27.5 |
Cutting Diameter (In.) | 1.0827 |
Head Length (Mm.) | 17.1 |
Material Code | HM |
Coating | Ti-phon |
Point Angle | 140 |
Cutting Direction | Right |
Cooling | 1 |
