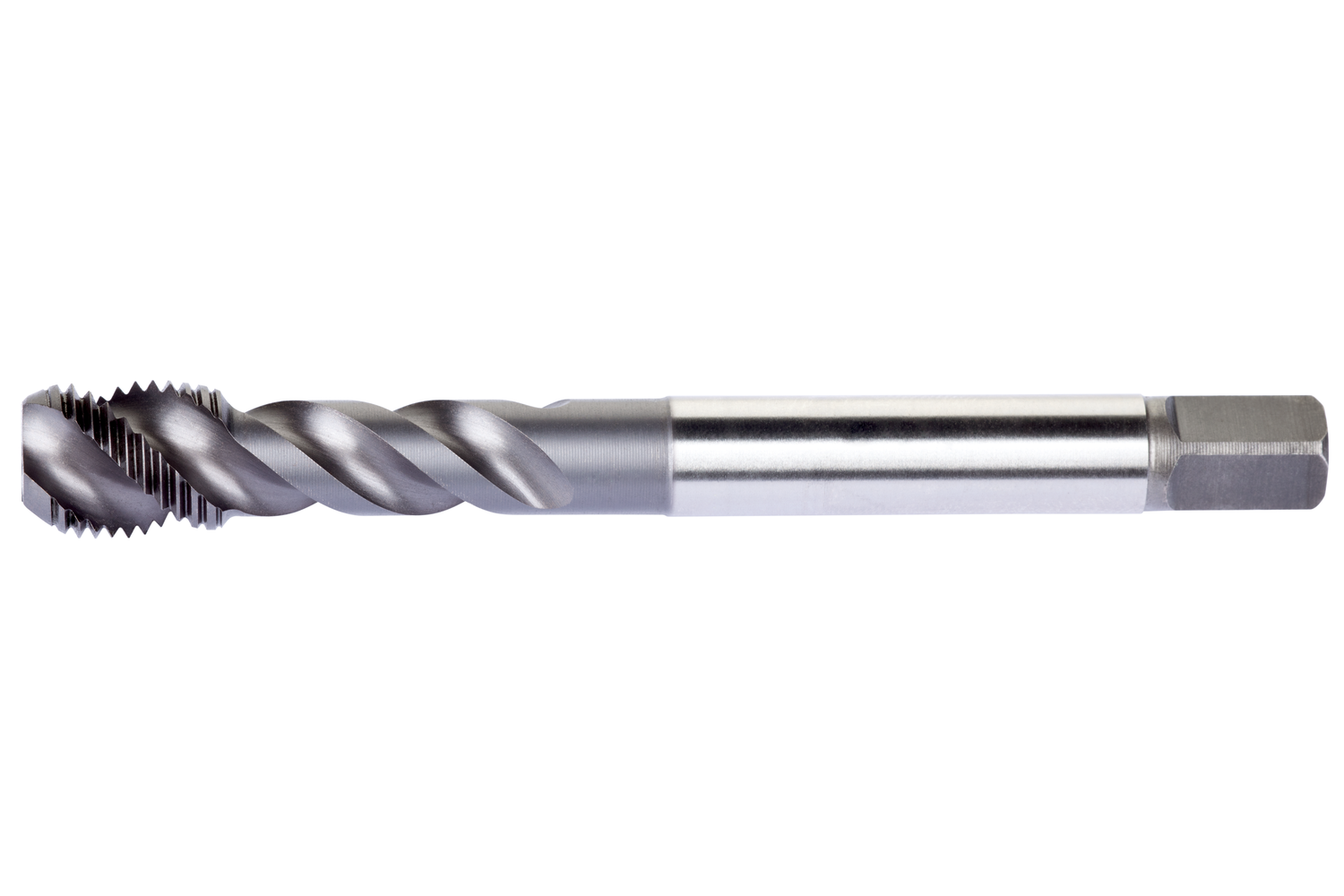

Thread size UNF 0.625 inch - 18 TPI, with thread tolerance class 93707, H5 pitch diameter limits, and maximum threading depth 1.5625 inches.
- Product Name ISO: E698UNF5/8
- Ordering Code ANSI: E698UNF5/8
- EDP Number: 8464302
- Coating: TiCN
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Threads Per Inch | 18 |
| Connection Diameter (In.) | 0.48 |
| Overall Length (In.) | 4.331 |
| Material Code | HSS-E-PM |
| Coating | TiCN |
| Flute Count | 4 |
| Tap Application | Blind Hole |
| Thread Form | UNF - Unified Fine |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 5/8 |
