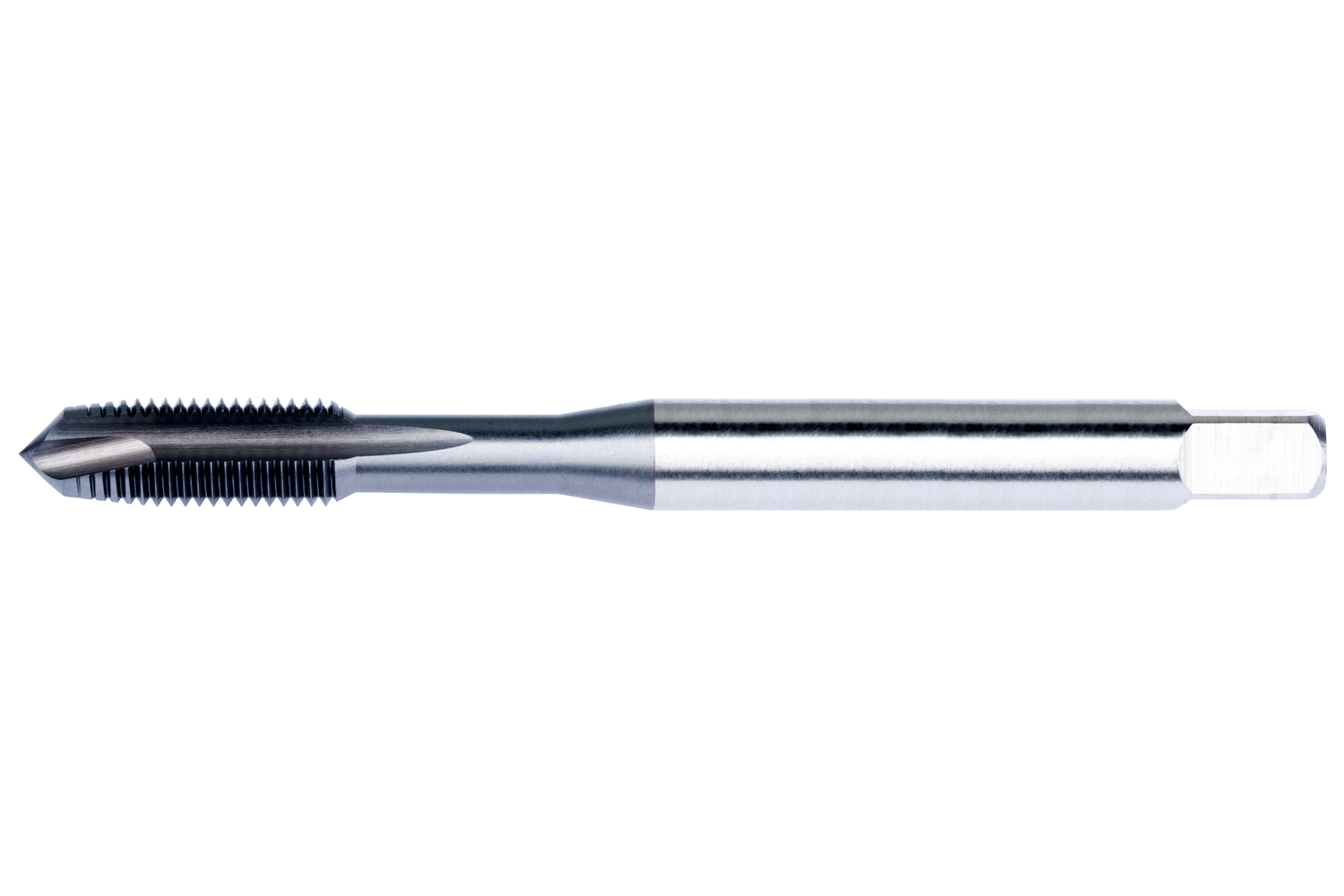

Thread size MF8 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 20 mm.
- Product Name ISO: E697M8X1.0
- Ordering Code ANSI: E697M8X1.0
- EDP Number: 8464250
- Coating: TiCN
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

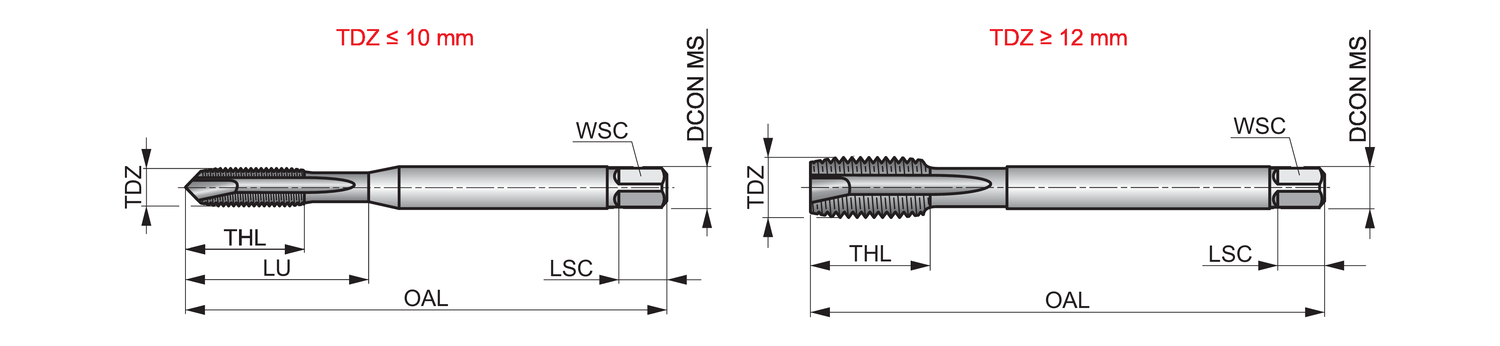

| Overall Length (Mm.) | 90 |
| Usable Length (Mm.) | 35 |
| Thread Pitch (In.) | 0.039 |
| Connection Diameter (In.) | 0.318 |
| Overall Length (In.) | 3.543 |
| Material Code | HSS-E-PM |
| Coating | TiCN |
| Flute Count | 3 |
| Tap Application | Through Hole |
| Thread Form | MF - Metric Fine |
| Flute Geometry | Spiral Point Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 8 |
