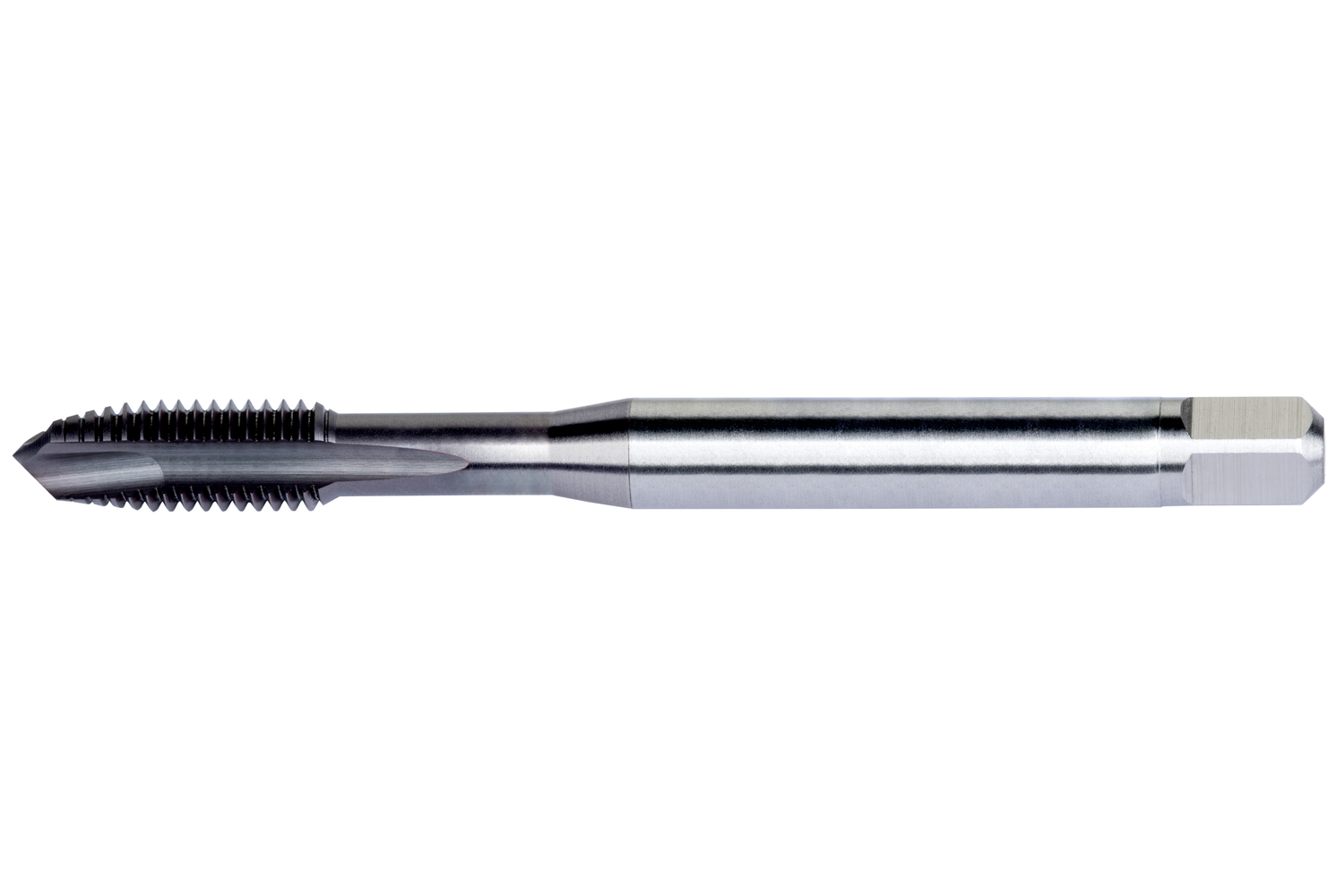

Thread size M5 mm x 0.8 mm, with thread tolerance class 93707, and maximum threading depth 12.5 mm.
- Product Name ISO: E697M5
- Ordering Code ANSI: E697M5
- EDP Number: 8464236
- Coating: TiCN
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Overall Length (Mm.) | 70 |
| Usable Length (Mm.) | 25 |
| Thread Pitch (In.) | 0.031 |
| Connection Diameter (In.) | 0.194 |
| Overall Length (In.) | 2.756 |
| Material Code | HSS-E-PM |
| Coating | TiCN |
| Flute Count | 3 |
| Tap Application | Through Hole |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Spiral Point Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 5 |
