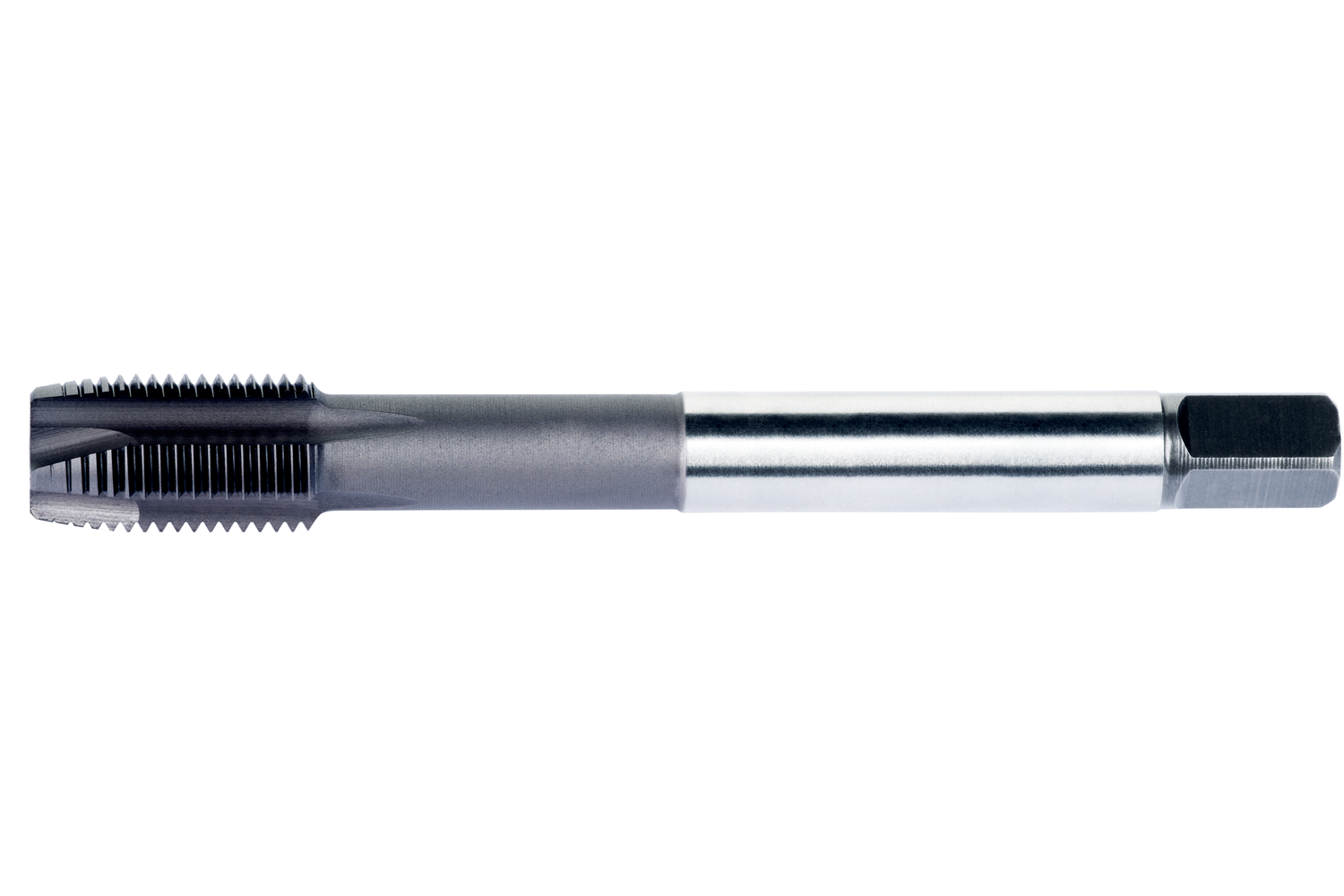

Thread size UNF 1 inch - 12 TPI, with thread tolerance class 93707, H6 pitch diameter limits, and maximum threading depth 2.5 inches.
- Product Name ISO: E697UNF1
- Ordering Code ANSI: E697UNF1
- EDP Number: 8464296
- Coating: TiCN
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Threads Per Inch | 12 |
| Connection Diameter (In.) | 0.8 |
| Overall Length (In.) | 6.299 |
| Material Code | HSS-E-PM |
| Coating | TiCN |
| Flute Count | 4 |
| Tap Application | Through Hole |
| Thread Form | UNF - Unified Fine |
| Flute Geometry | Spiral Point Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 1 |
