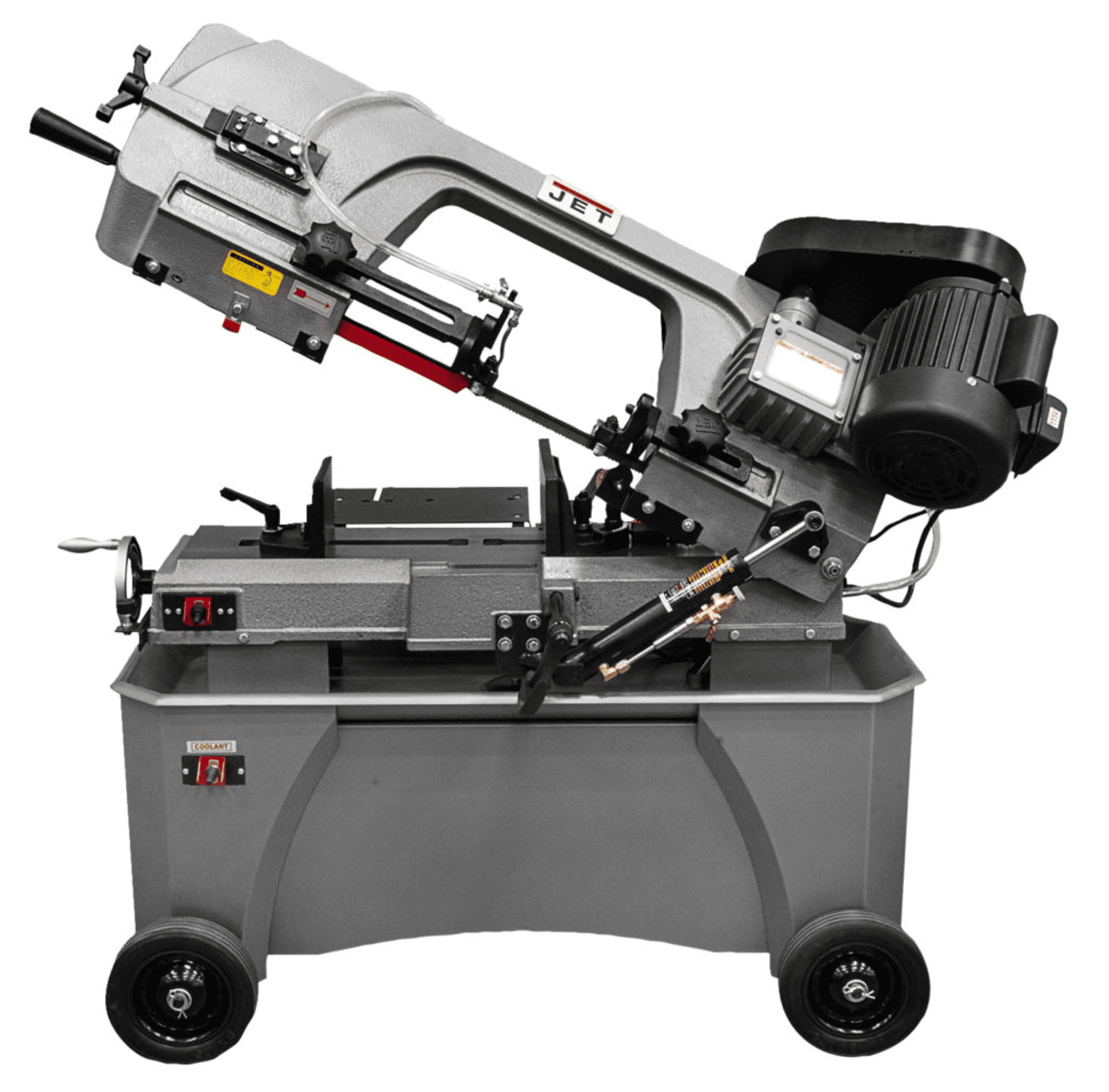

HVBS-712D, 7" x 12" Deluxe Horizontal / Vertical Bandsaw
- Large 10" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
- Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
- Tool-less quick lock vise with preset mitering positions at 15°, 30° & 45°
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Micro adjustable tool-less material stop for accurate set-up and repeatability
- CSA/CUS Certification
- Blade drive is a belt to sealed, hardened and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Auto shut-off after cut
- Adjustable ball bearing blade guides
| Round at 90 Degrees (In.) | 7 |
| Blade Size (In.) | 3/4 x 0.032 x 93 |
| Drive | Step Pulley |
| Blade Speeds (SFPM) | 86, 132, 178, 260 |
| Round at 45 Degrees (In.) | 5 |
| Rectangle at 90 Degrees (In.) | 4 x 11 / 7 x 10-1/4 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Square at 90 Degrees (In.) | 7 x 7 |
| Bed Height (In.) | 22-1/4 |
| Cutting Capacity (WxD)(In.) | 7 x 12 |
| Square at 45 Degrees (In.) | 5 x 5 |
| Rectangle at 45 Degrees (In.) | 6 x 4 |
| Weight (Lbs.) | 418 |
| Head Movement (Deg.) | 0 |
| Vise Swivels (Deg.) | 45 |
| Coolant Capacity (Gal.) | 1 |
| Blade Length (In.) | 93 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Overall Dimensions (LxWxH)(In.) | 48 x 17 x 44 |
| Throat Dpeth (In.) | 7 |
There are no reviews yet
| Manufacturer warranty | ||
| 2 Year | ||
| Warranty details | ||
|
|
||
Customers who bought this item also bought

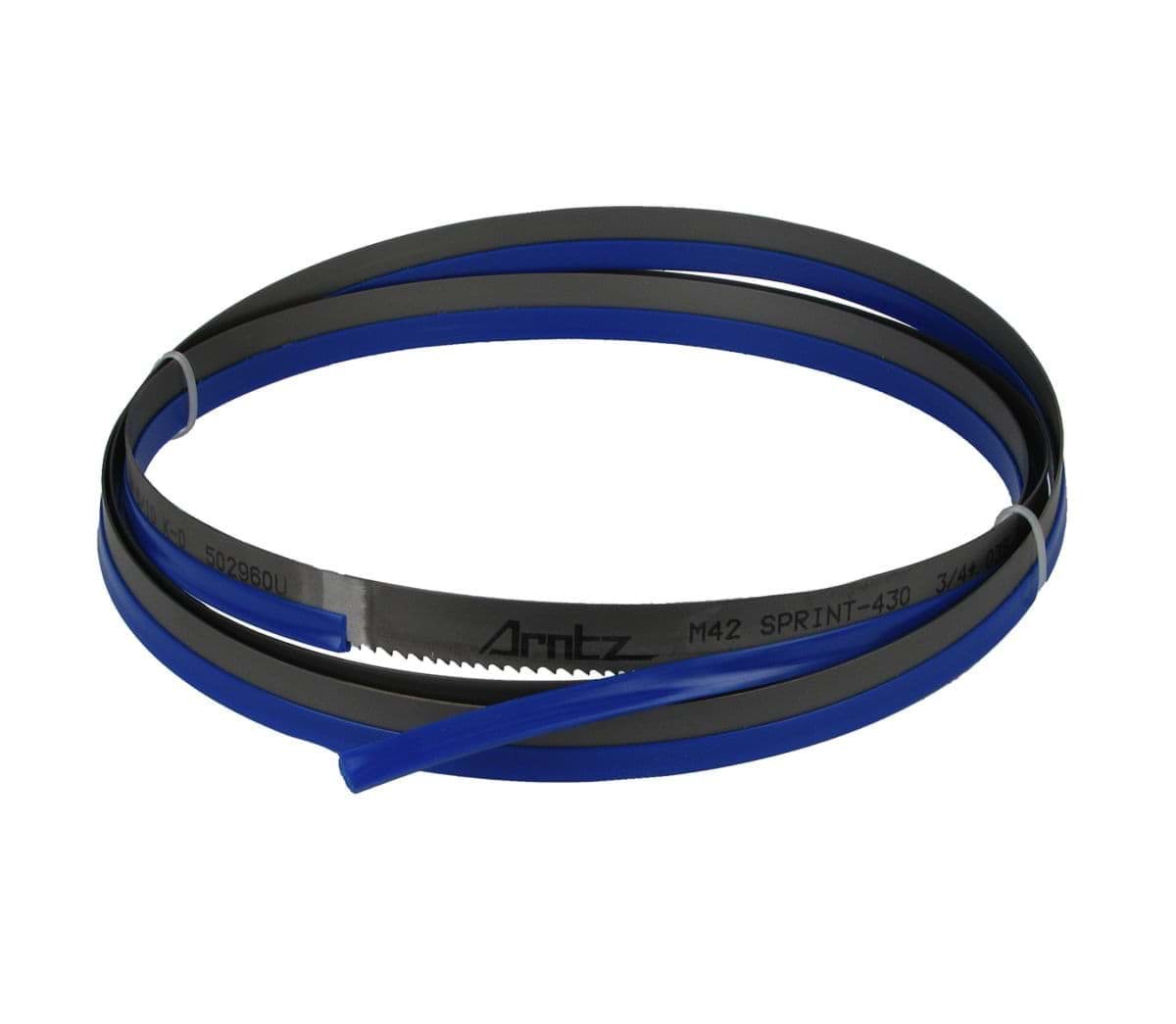

Blade- 3/4"x.035"x 93"x 6/10VT-HVBS-7MW
