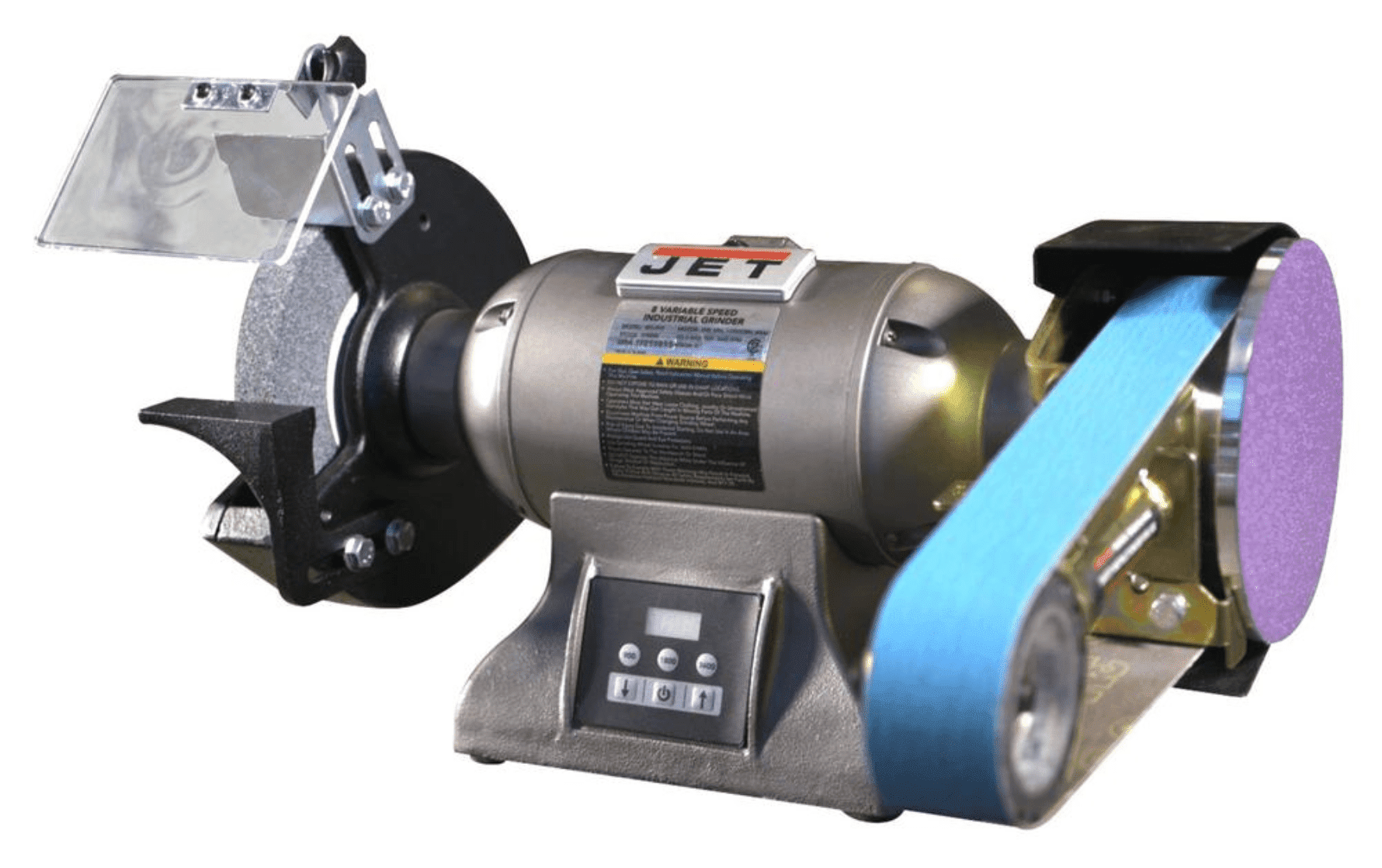

IBGM-8VS Industrial Variable Speed Grinder with Multitool Attachment
- Cast Iron Guard house the 36 Grit Wheel
- Adjustable Cast Iron Tool Rest
- Massive Cast Iron Body
- Totally Enclosed Pre-Lubricated Ball Bearings
- Heavy Duty On/Off Toggle Switch with Safety Key prevents accidental start-up
- Cast iron wheel guarding with Safety shield on the left and sheet metal guard on the belt
- Rubber Mounts Prevent Movement
- Top platen on Belt can be used for straightening or longer edges
- Four grinding surface on the Multi-Tool and the front contact wheel has a serrated surface for deburring as well as grinding along with a grinding wheel for sharpening and grinding
- With a quick change of the belt the Operator can go from grinding to polishing in seconds
| Shaft Diameter (In.) | 5/8 |
| Motor Voltage (V.) | 115/230V , Single Phase |
| Disc Diameter (In.) | 7 |
| Motor (HP) | 1HP |
| Wheel Diameter (Dia.xW)(In.) | 8 x 1 |
| Wheel Speed (RPM) | 900 - 3600 |
| Wheel Grits | 36 |
| Belt Grit | 80 |
| Gross Weight (Lbs.) | 79 |
| Net Weight (Lbs.) | 69 |
| Prewired (V.) | 115V |
| Belt Size (WxL)(In.) | 2 x 36 |
