Indexable ball nose segment copy milling insert for a diameter of .6299" for a maximum depth of cut of .5906", M geometry and M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with copy end mills L2-SZPshoulder mills SLN12X
- Product Name ISO: ZP 16ER-M:M8340
- Ordering Code ANSI: ZP 16ER-M:M8340
- EDP Number: 6803616
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 15 |

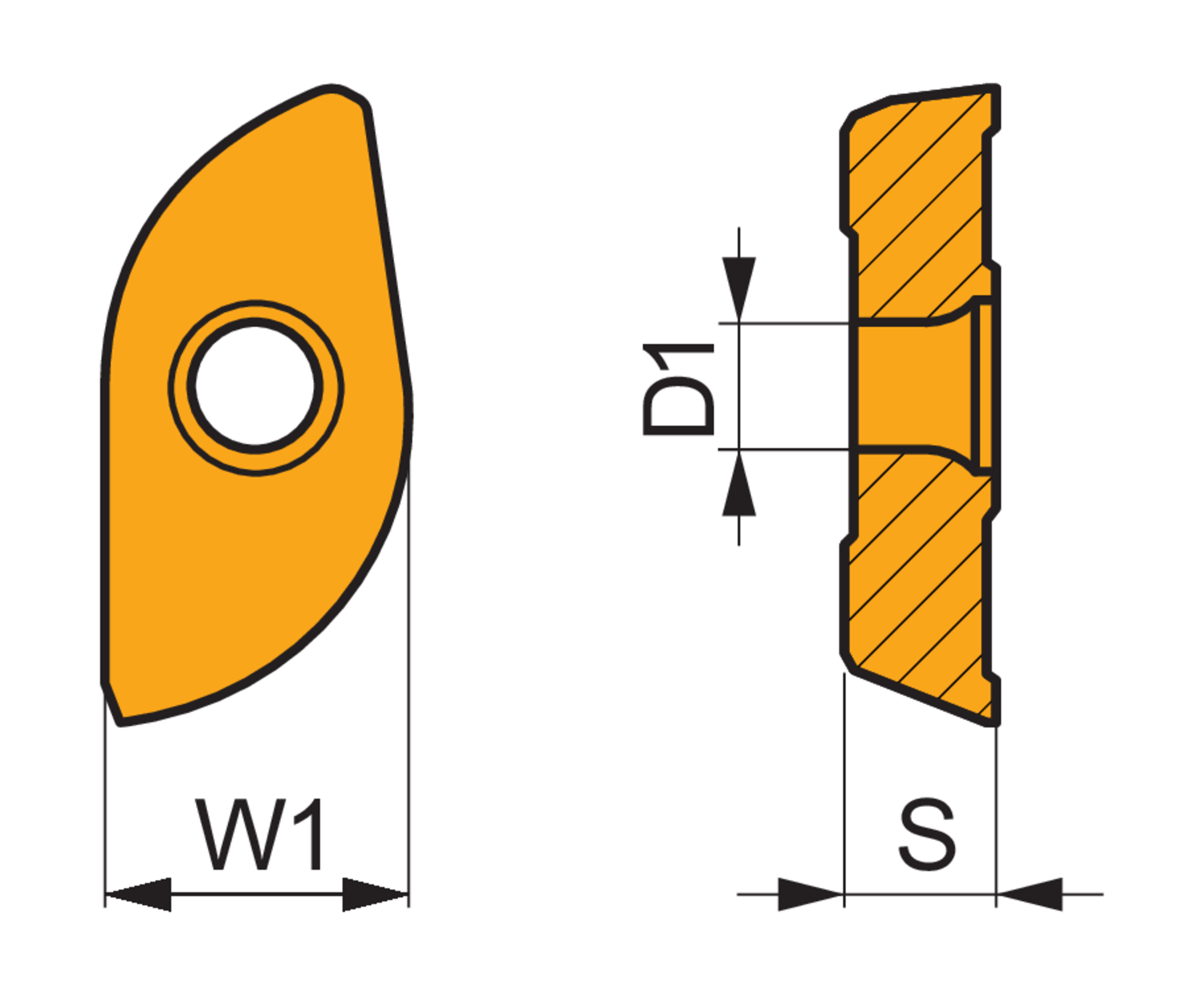

| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.18 |
| Insert Width (Mm.) | 16 |
| Max Depth of Cut (In.) | 0.591 |
| Coating | M8340 |
