Indexable ball nose segment copy milling insert for a diameter of .7874" for a maximum depth of cut of .7047", M geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy end mills L2-SZPshoulder mills SLN12X
- Product Name ISO: ZP 20ER-M:M8330
- Ordering Code ANSI: ZP 20ER-M:M8330
- EDP Number: 7451131
- Coating: M8330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 17.9 |

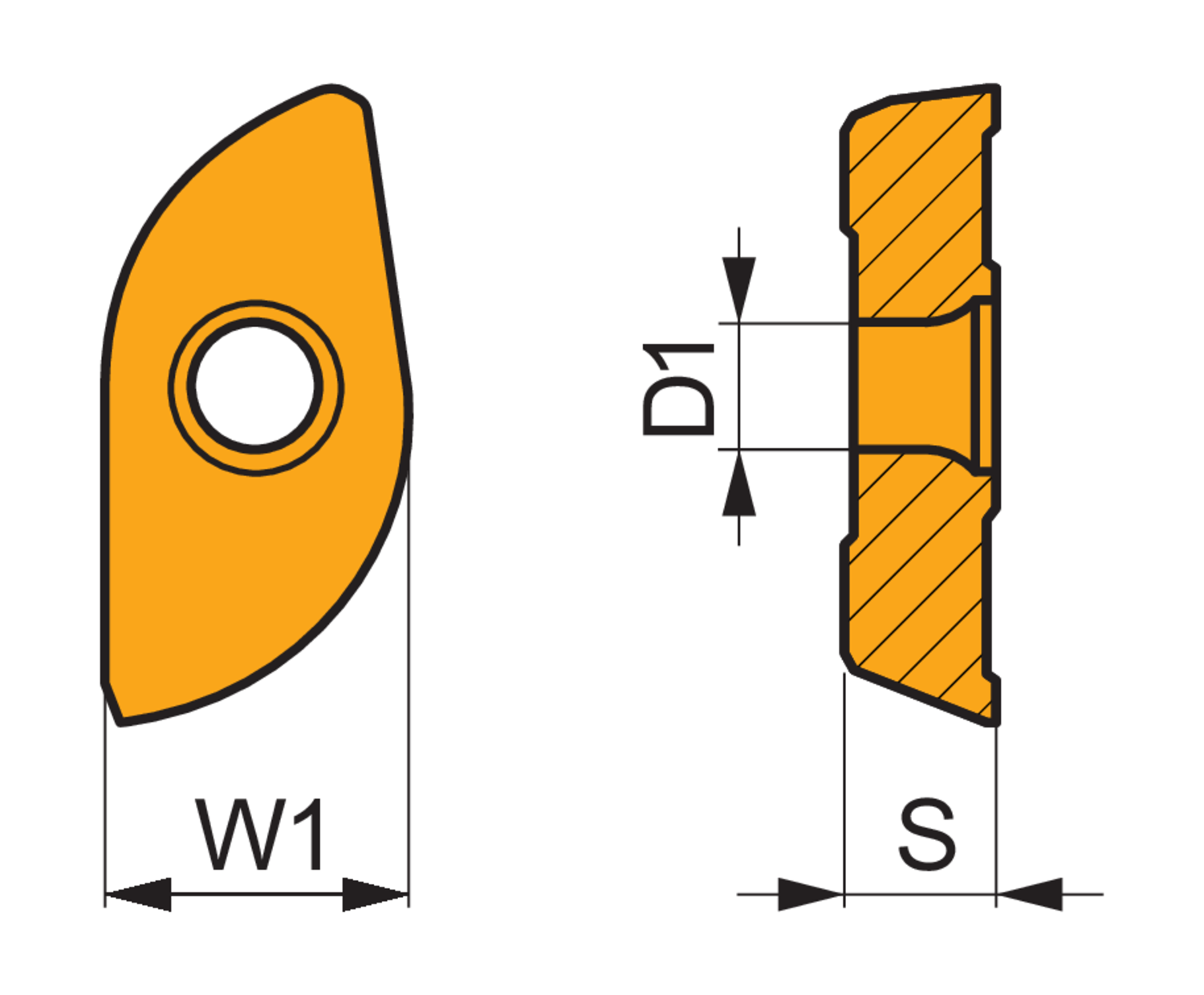

| Fixing Hole Diameter (Mm.) | 4 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Width (Mm.) | 20 |
| Max Depth of Cut (In.) | 0.705 |
| Coating | M8330 |
