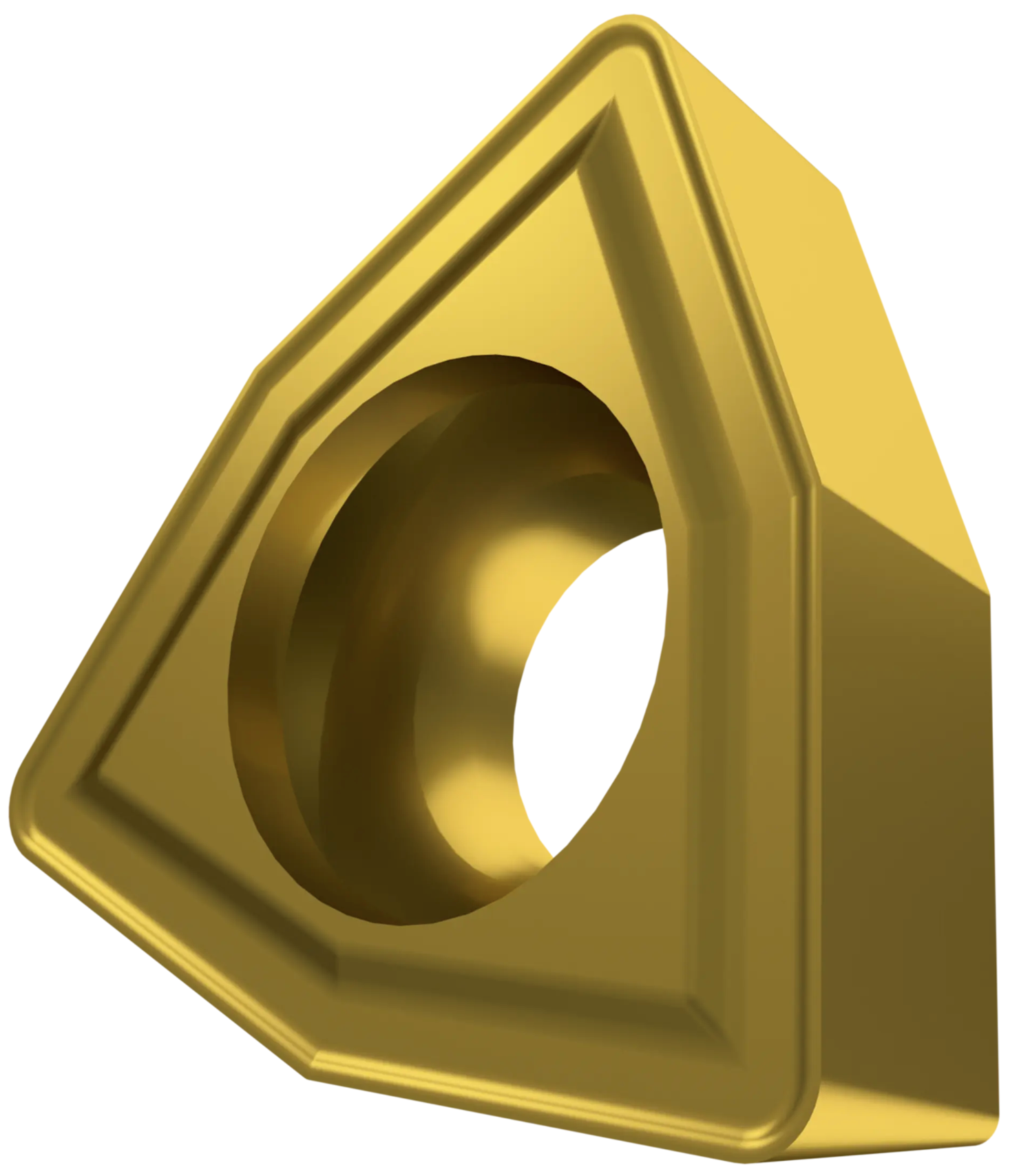

Drilling insert WCMT 0503.., D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UM geometry for machining of steel and cast-iron
- Product Name ISO: WCMT 050308E-UM:D8330
- Ordering Code ANSI: WCMT 2.522-UM:D8330
- EDP Number: 6754642
- Coating: D8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 3.5 |
| Inscribing Circle Dia. (Mm.) | 7.938 |
| Insert Thickness (Mm.) | 3.18 |
| Coating | D8330 |
