Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 1.378 up to 1.732", D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and M15-M30 with SD geometry for machining of steel and stainless-steel
- Product Name ISO: SCET 120408-SD:D8330
- Ordering Code ANSI: SCET 120408-SD:D8330
- EDP Number: 6920801
- Coating: D8330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

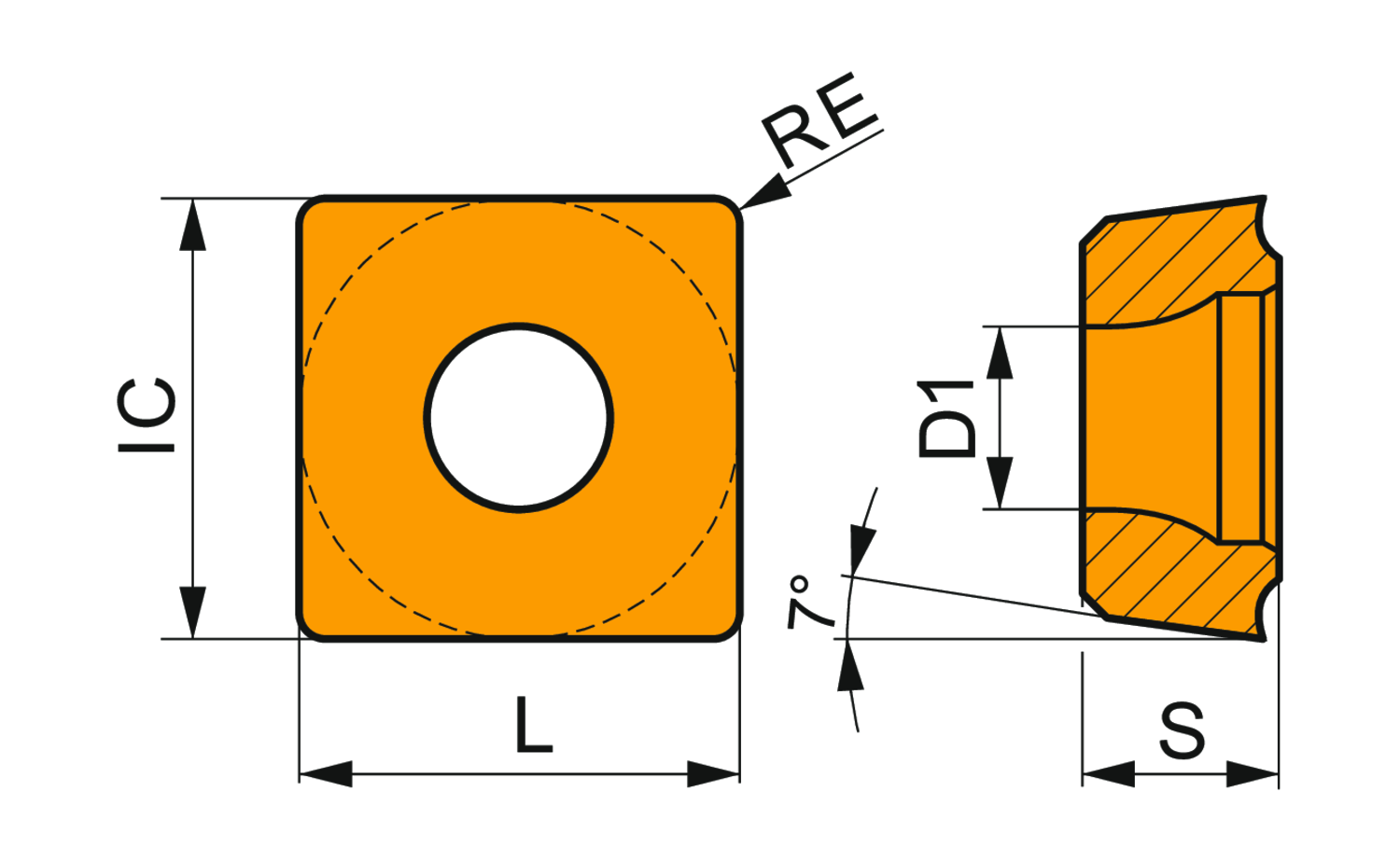

| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.6 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Coating | D8330 |
