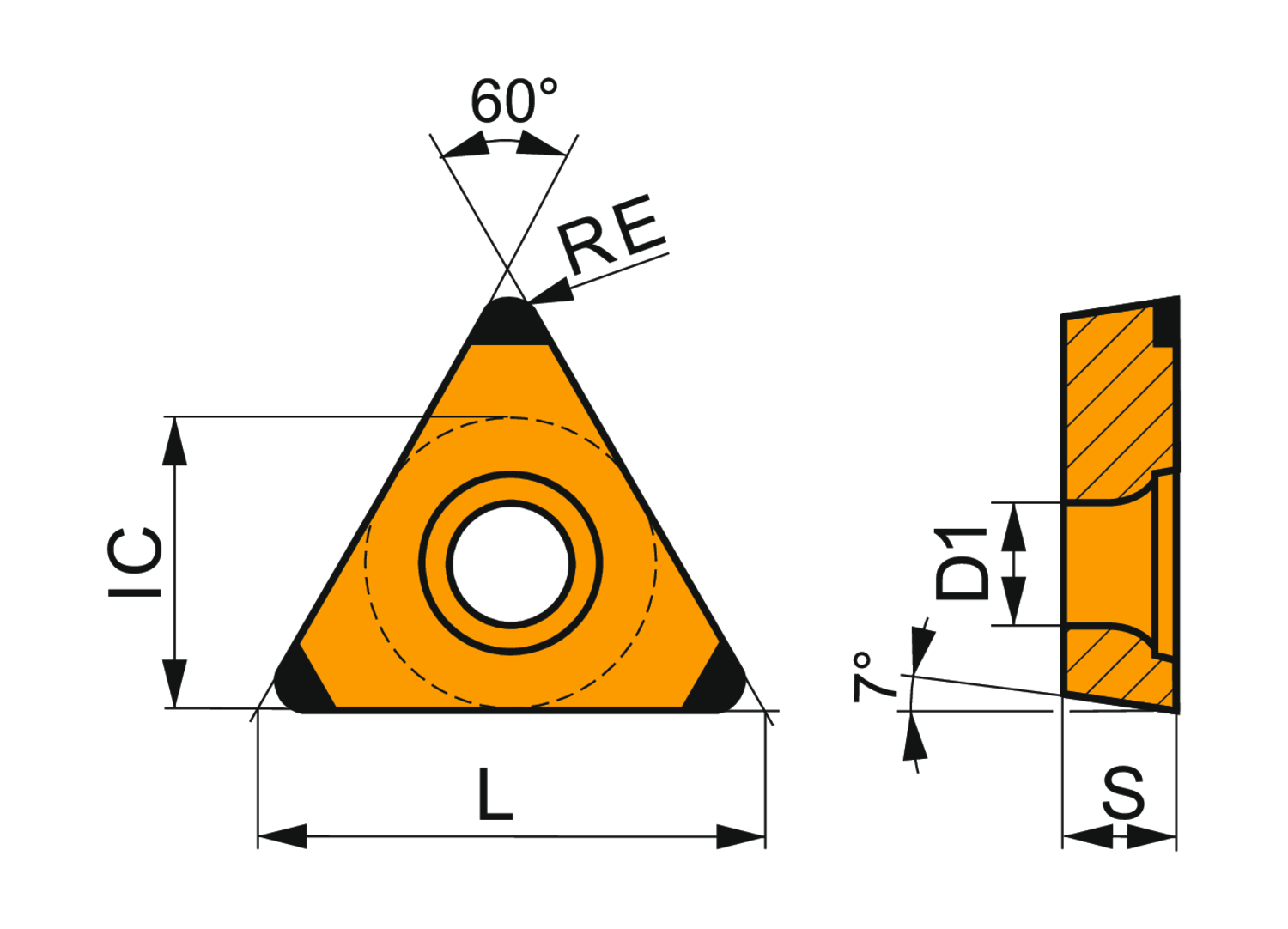

Insert for hard turning with 3 CBN tipped corners on one-side, triangular with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class-G, rounded cutting edges with facet T-land -20°/0.004", in grade TB310, an uncoated cubic boron nitride within ISO range H01-H10, for high-speed machining of hardened materials
- Product Name ISO: TCGW 110208S01020C:TB310
- Ordering Code ANSI: TCGW 21.52S00420:TB310
- EDP Number: 6755927
- Coating: TB310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC)
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 2.5 |
Corner Radius (Mm.) | 0.8 |
Fixing Hole Diameter (Mm.) | 2.9 |
Inscribing Circle Dia. (Mm.) | 6.35 |
Insert Thickness (Mm.) | 2.38 |
Max Depth of Cut (In.) | 0.098 |
Insert Geometry | Positive |
Coating | TB310 |
