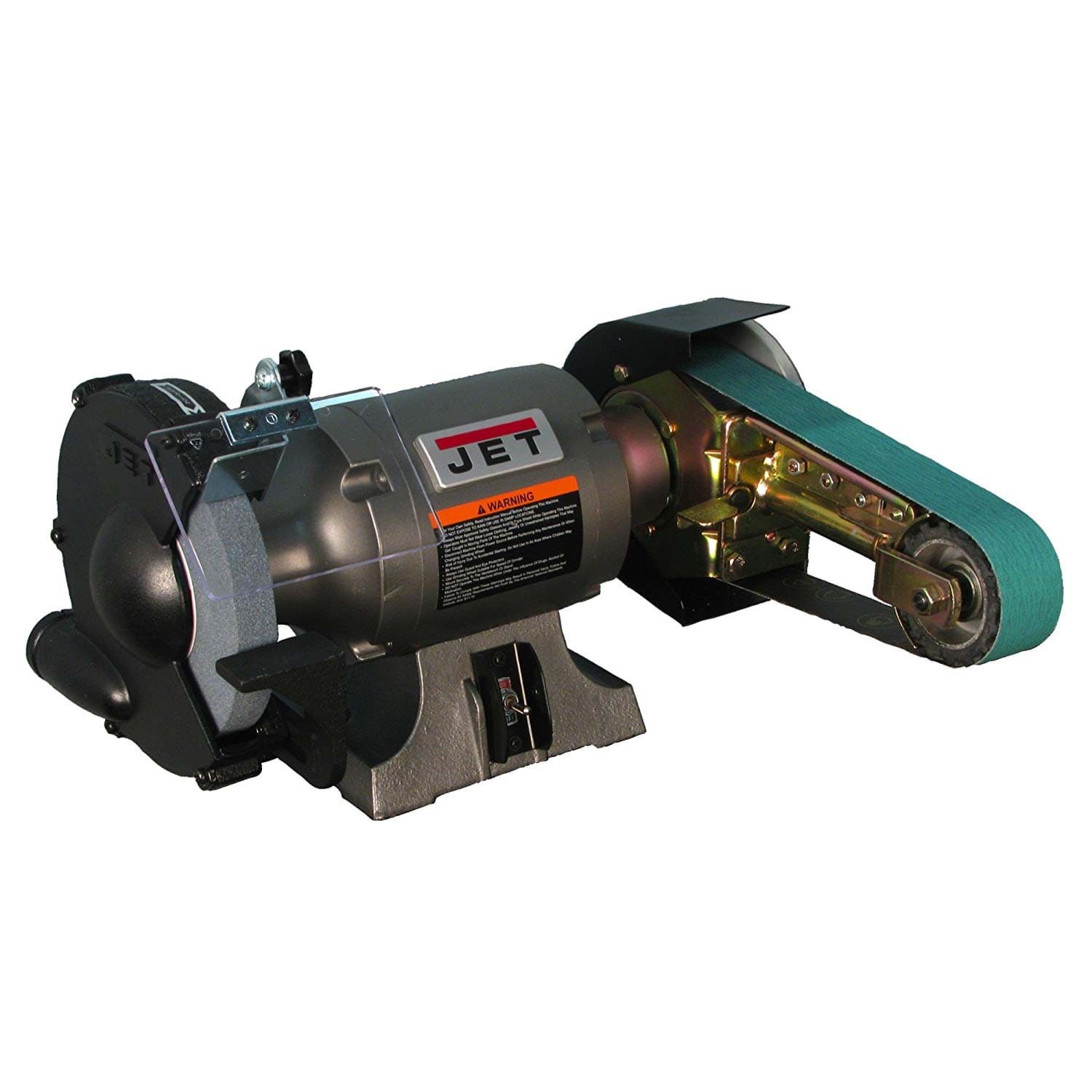

JBGM-8 8" Jet Shop Grinder with Multitool Attachment
- Cast Iron Guard house the 36 Grit Wheel
- Adjustable Cast Iron Tool Rest
- Massive Cast Iron Body
- Totally Enclosed Pre-Lubricated Ball Bearings
- Cast iron wheel guarding with Safety shield on the left and sheet metal guard on the belt
- Rubber Mounts Prevent Movement
- Top platen on Belt can be used for straightening or longer edges
- Four grinding surface on the Multi-Tool and the front contact wheel has a serrated surface for deburring as well as grinding along with a grinding wheel for sharpening and grinding
- With a quick change of the belt the Operator can go from grinding to polishing in seconds
| Overall Dimensions (LxWxH)(In.) | 17 x 10 x 9 |
| Shaft Diameter (In.) | 5/8 |
| Weight (Lbs.) | 52 |
| Motor Voltage (V.) | 115V, Single Phase |
| Disc Diameter (In.) | 7 |
| Motor (HP) | 1/2 HP, 115V, 1Ph |
| Wheel Diameter (Dia.xW)(In.) | 8 x 1 |
| Wheel Speed (RPM) | 3,450 |
| Wheel Grits | 36 |
| Belt Grit | 80 |
| Belt Size (WxL)(In.) | 2 x 36 |
There are no reviews yet
| Manufacturer warranty | ||
| 2 Year | ||
| Warranty details | ||
|
|
||
