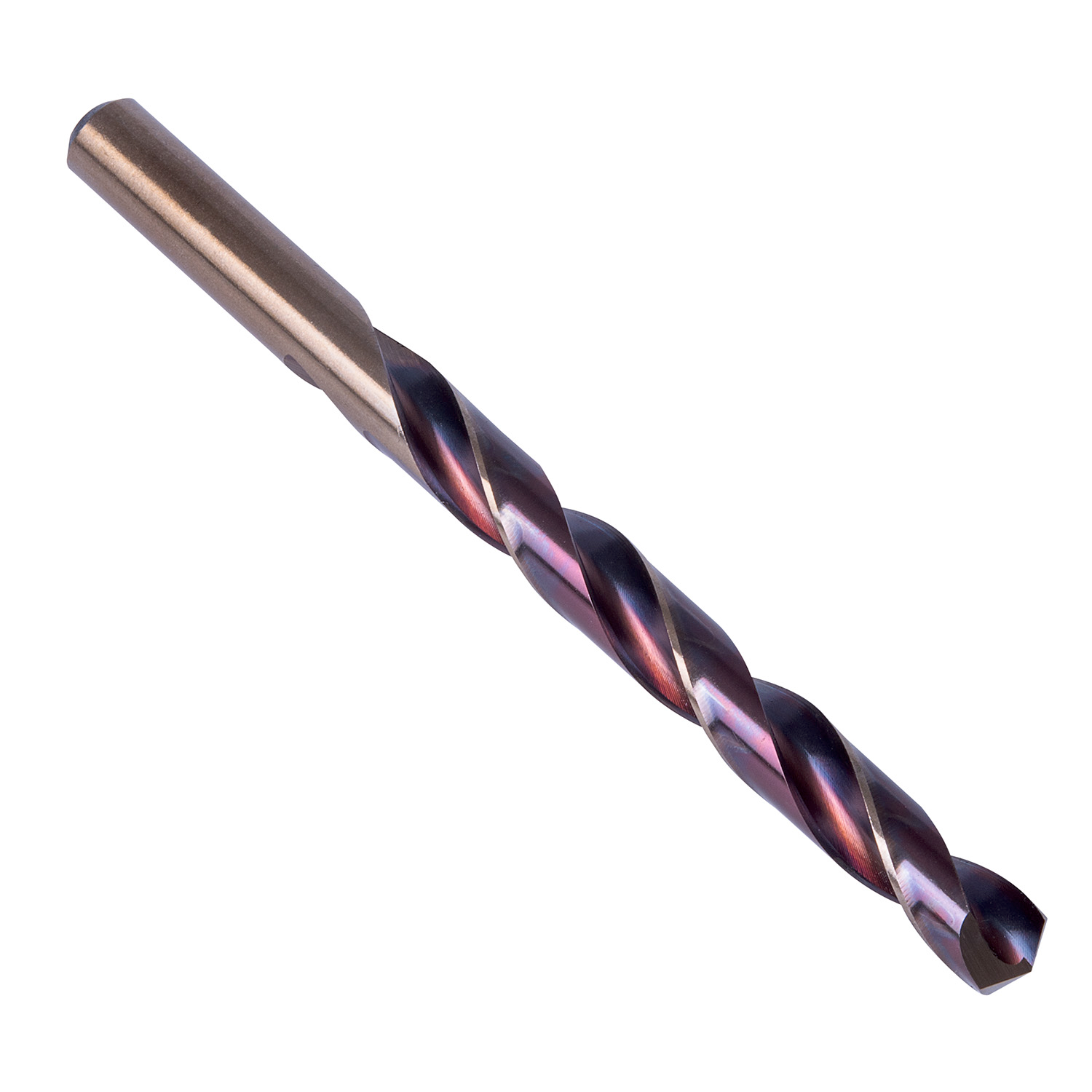

Jobber length drill with straight shank, diameter 0.2090" (N4) with an overall length of 3.3/4" and flute length of 2.1/2" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron
- Product Name ISO: HX18N4
- Ordering Code ANSI: HX18N4
- EDP Number: 022104
- Coating: Purple/Bronze
- Material Code (BMC): HSS
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

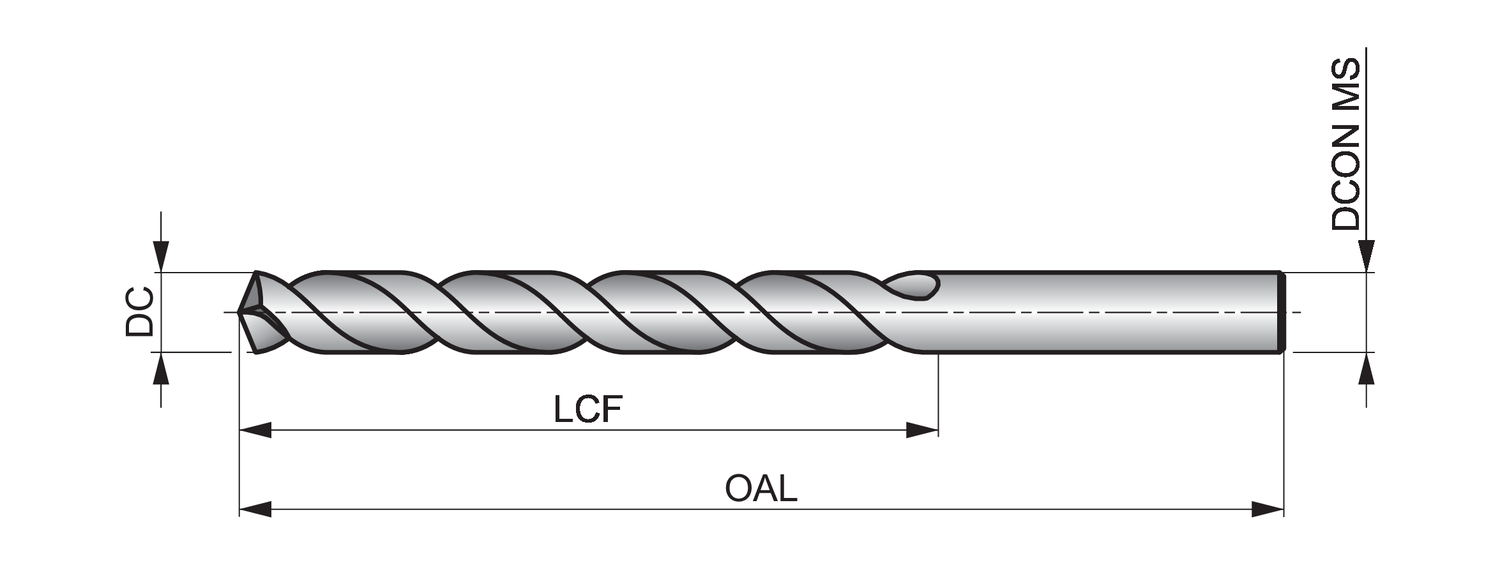

| Cutting Diameter (Mm.) | 5.31 |
| Cutting Diameter (In.) | 0.209 |
| Cutting Diameter Wire Gauge | N4 |
| Overall Length (Mm.) | 95.25 |
| Length Chip Flute (In.) | 2.5 |
| Connection Diameter (In.) | 0.209 |
| Overall Length (In.) | 3.75 |
| Material Code | HSS |
| Coating | Purple/Bronze |
| Shank | Cylindrical Shank |
| Point Angle | 135 |
| Cutting Direction | Right |
