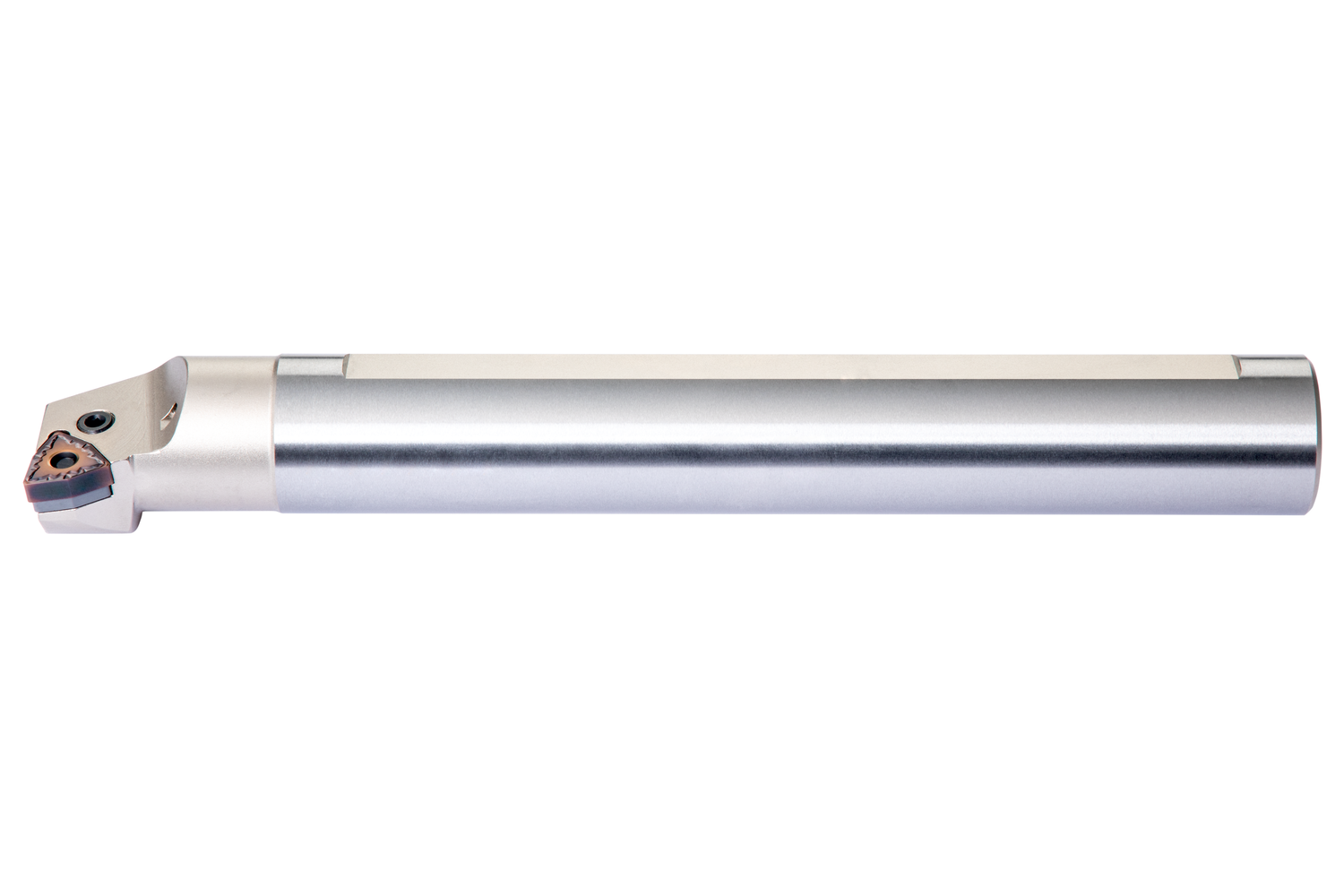

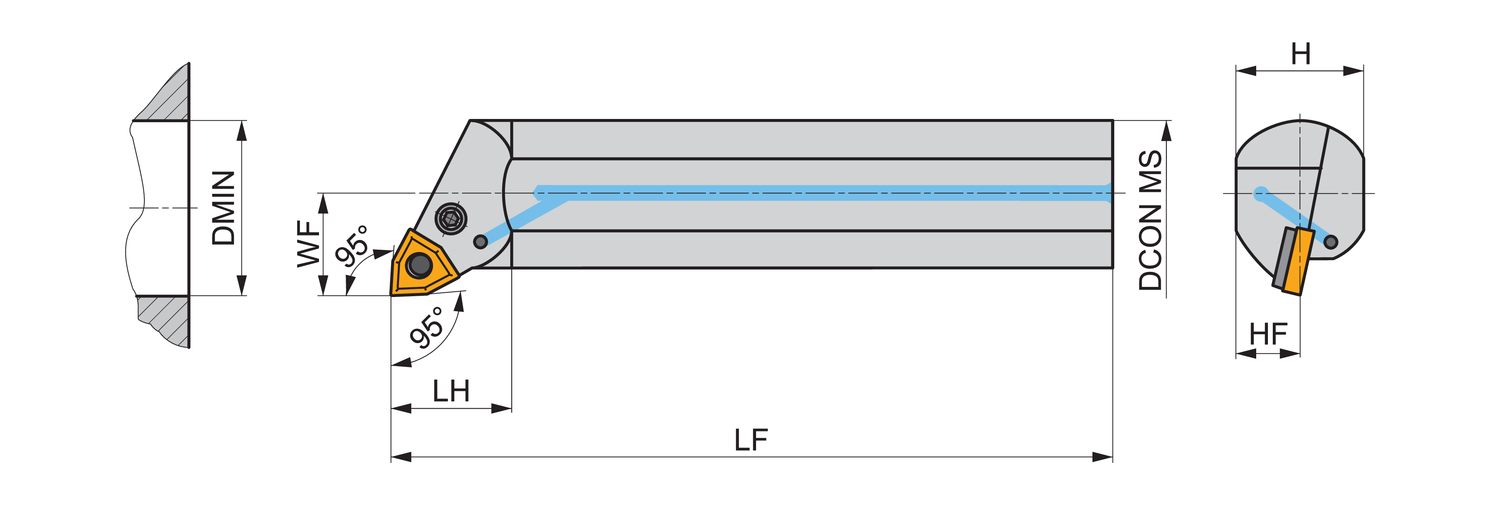

Lever lock boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 20mm diameter x 180mm long for taper boring and longitudinal boring with and without shoulder

• Product Name ISO: A20Q-PWLNR 0604
• Ordering Code ANSI: A20Q-PWLNR 0604
• EDP Number: 6761036
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
