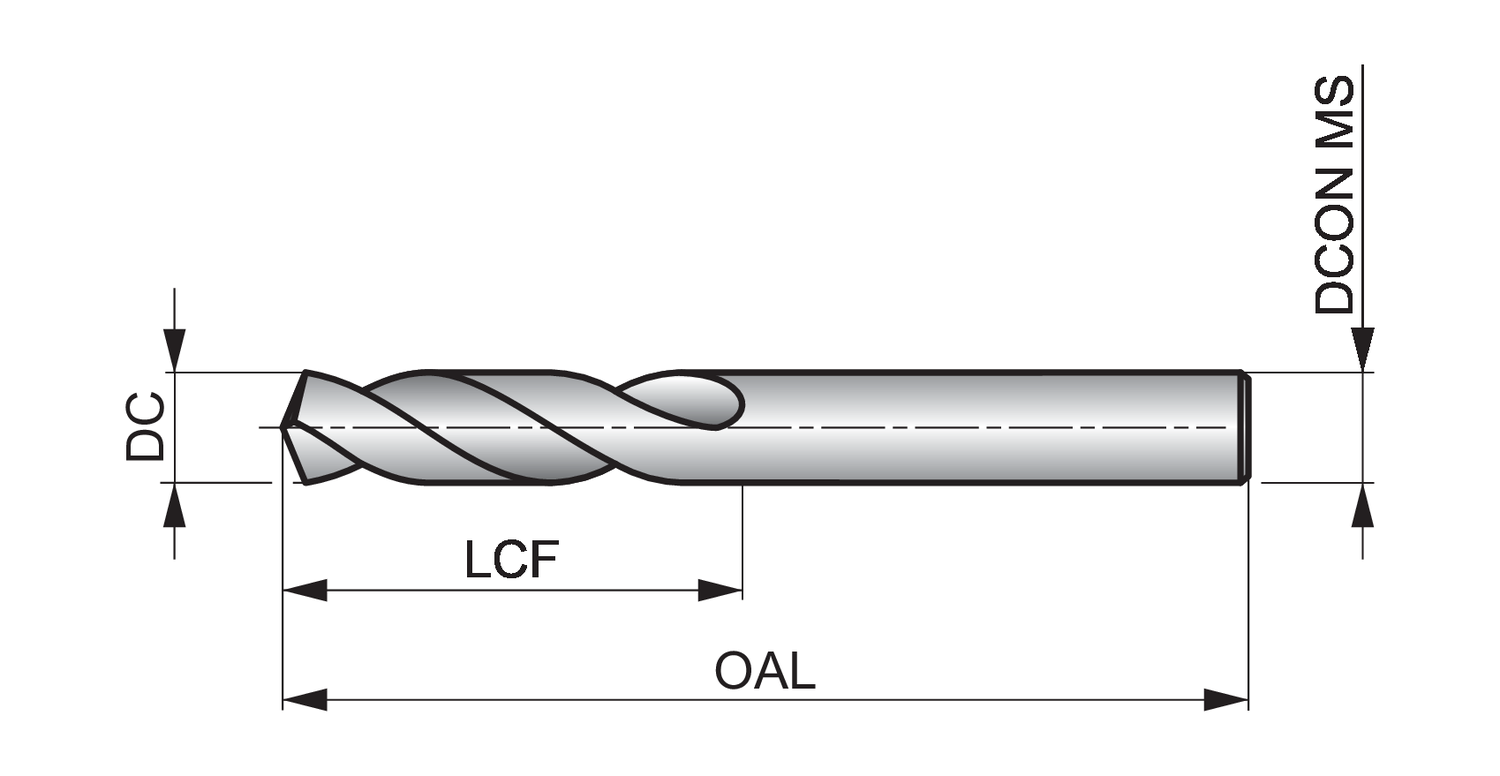

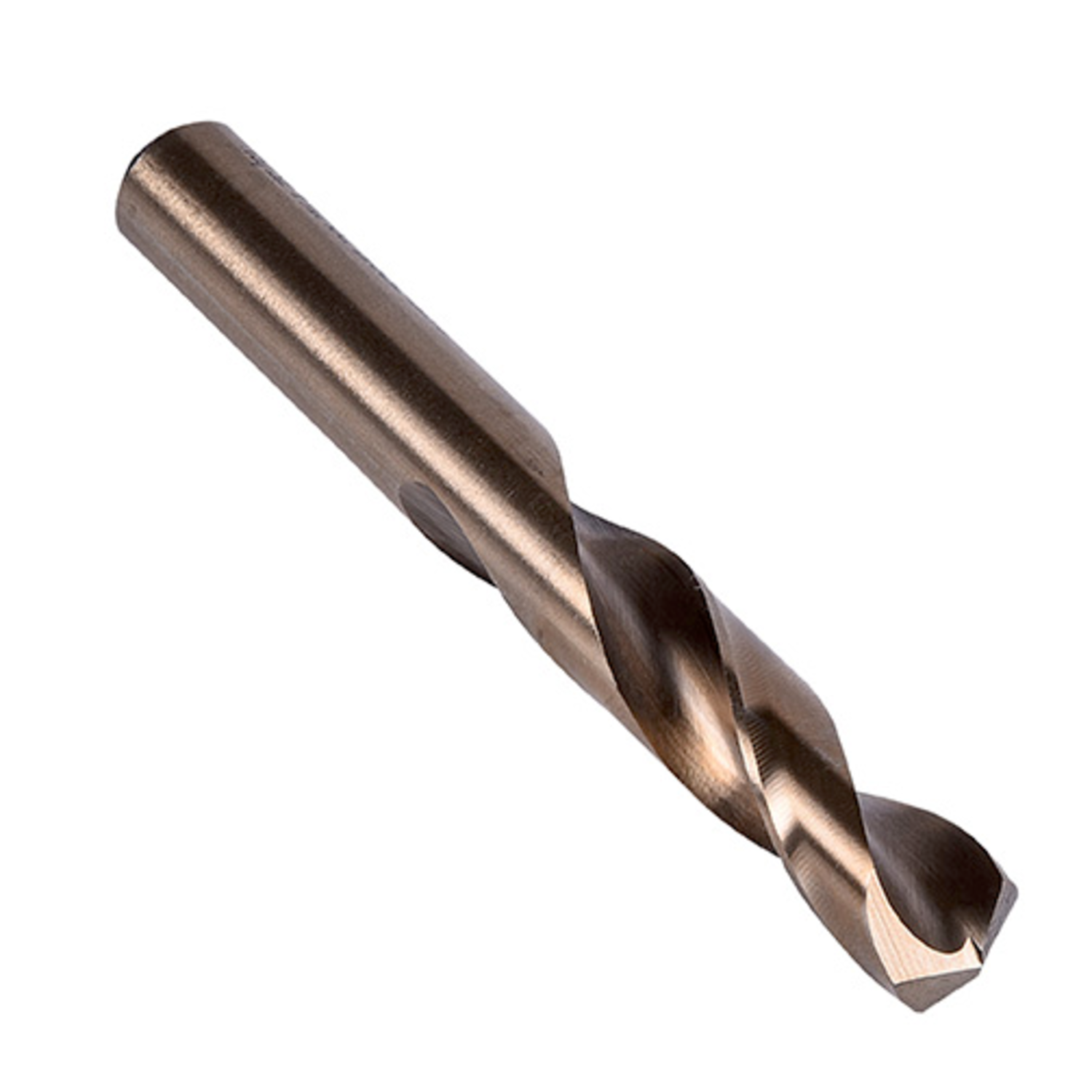

Stub length drill with straight shank, diameter 0.2969" (19/64) with an overall length of 2.3/4" and flute length of 1.9/16" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in steel, stainless steel, cast iron and super-alloy
- Product Name ISO: M40CO19/64
- Ordering Code ANSI: M40CO19/64
- EDP Number: 040319
- Coating: Bronze
- Material Code (BMC): HSS-E
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 7.54 |
| Cutting Diameter (In.) | 0.2969 |
| Cutting Diameter Fractional (In.) | 19/64 |
| Overall Length (Mm.) | 69.85 |
| Length Chip Flute (In.) | 1.5625 |
| Connection Diameter (In.) | 0.2969 |
| Overall Length (In.) | 2.75 |
| Material Code | HSS-E |
| Coating | Bronze |
| Shank | Cylindrical Shank |
| Point Angle | 135 |
| Cutting Direction | Right |
