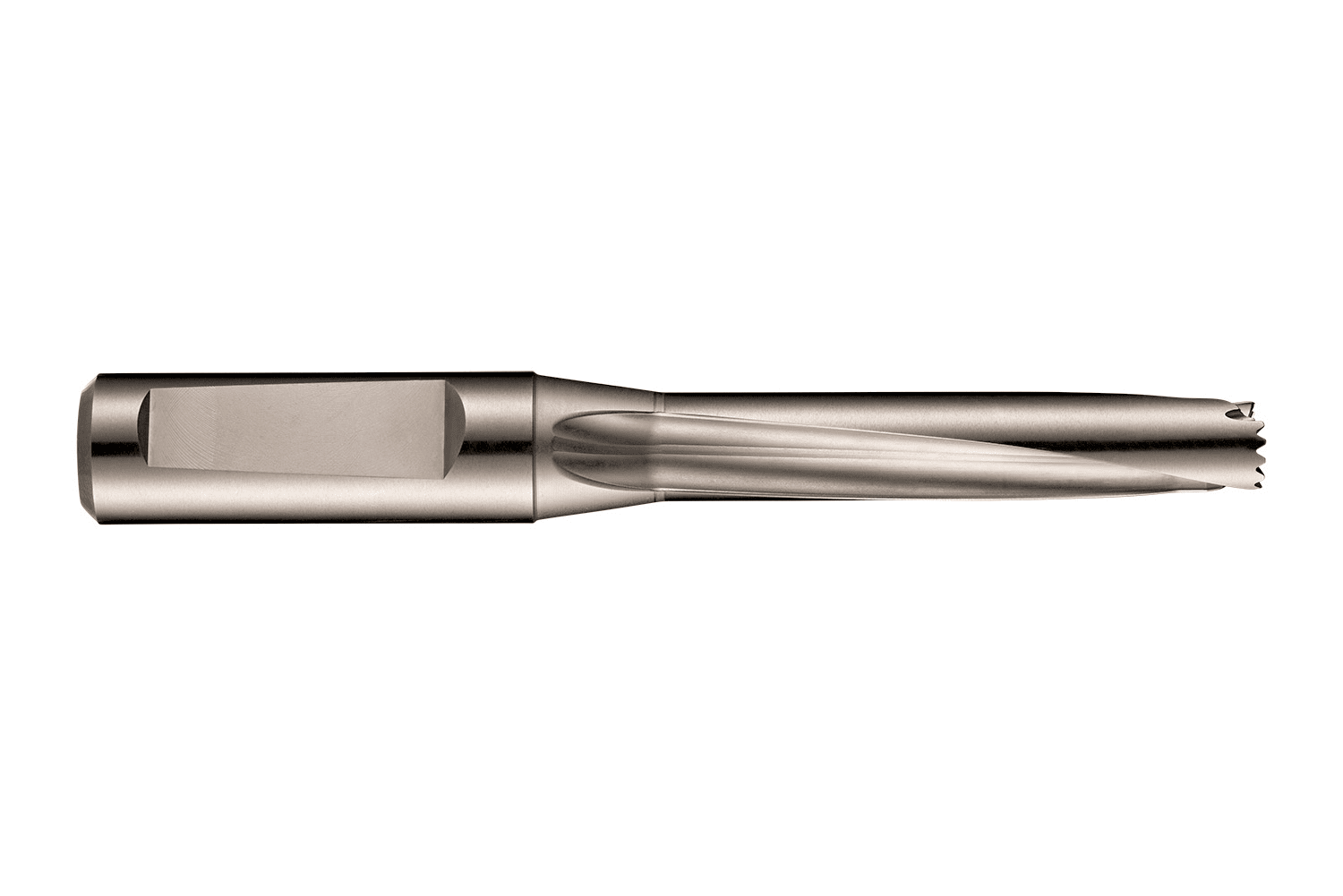

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 1.1/8" with an overall length of 240mm and flute length of 157mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 1.1024 up to 1.1250" (1.1/8)
- Product Name ISO: H8551.1/8
- Ordering Code ANSI: H8551.1/8
- EDP Number: 0034903
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

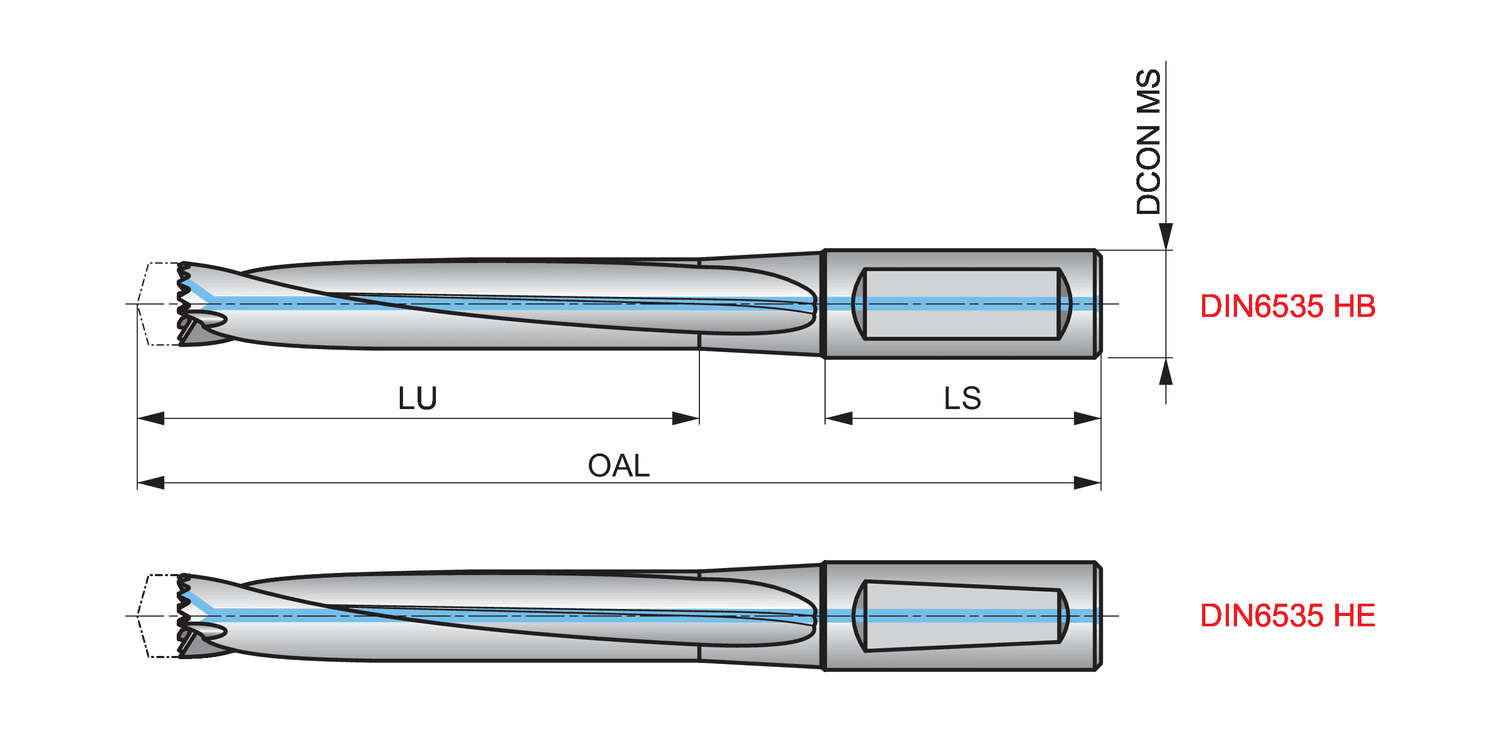

| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 240 |
| Usable Length (Mm.) | 157 |
| Shank Length (Mm.) | 60 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 9.4488 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
