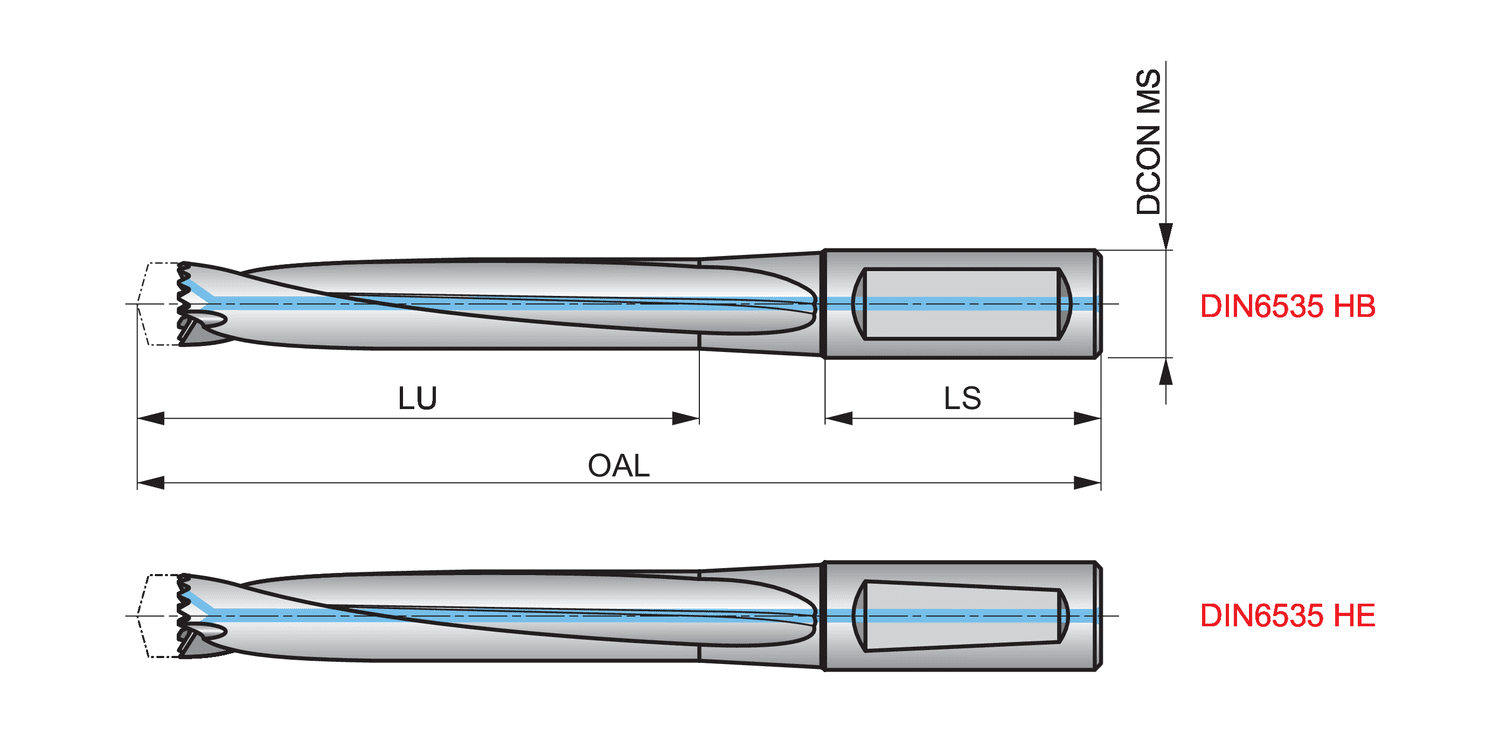

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 22.0mm with an overall length of 201.1mm and flute length of 125.1mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 21.83 up to 22.7mm
- Product Name ISO: H85522.0
- Ordering Code ANSI: H85522.0
- EDP Number: 0018576
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
| Material Code | HSS |
| Overall Length (In.) | 7.9173 |
| Connection Diameter (In.) | 0.9843 |
| Shank Length (Mm.) | 56 |
| Usable Length (Mm.) | 125.1 |
| Overall Length (Mm.) | 201.1 |
| Connection Diameter (Mm.) | 25 |
| Product Measurement Standard | Metric |
| Quick Ship Items | No, but I will Ship Soon |
