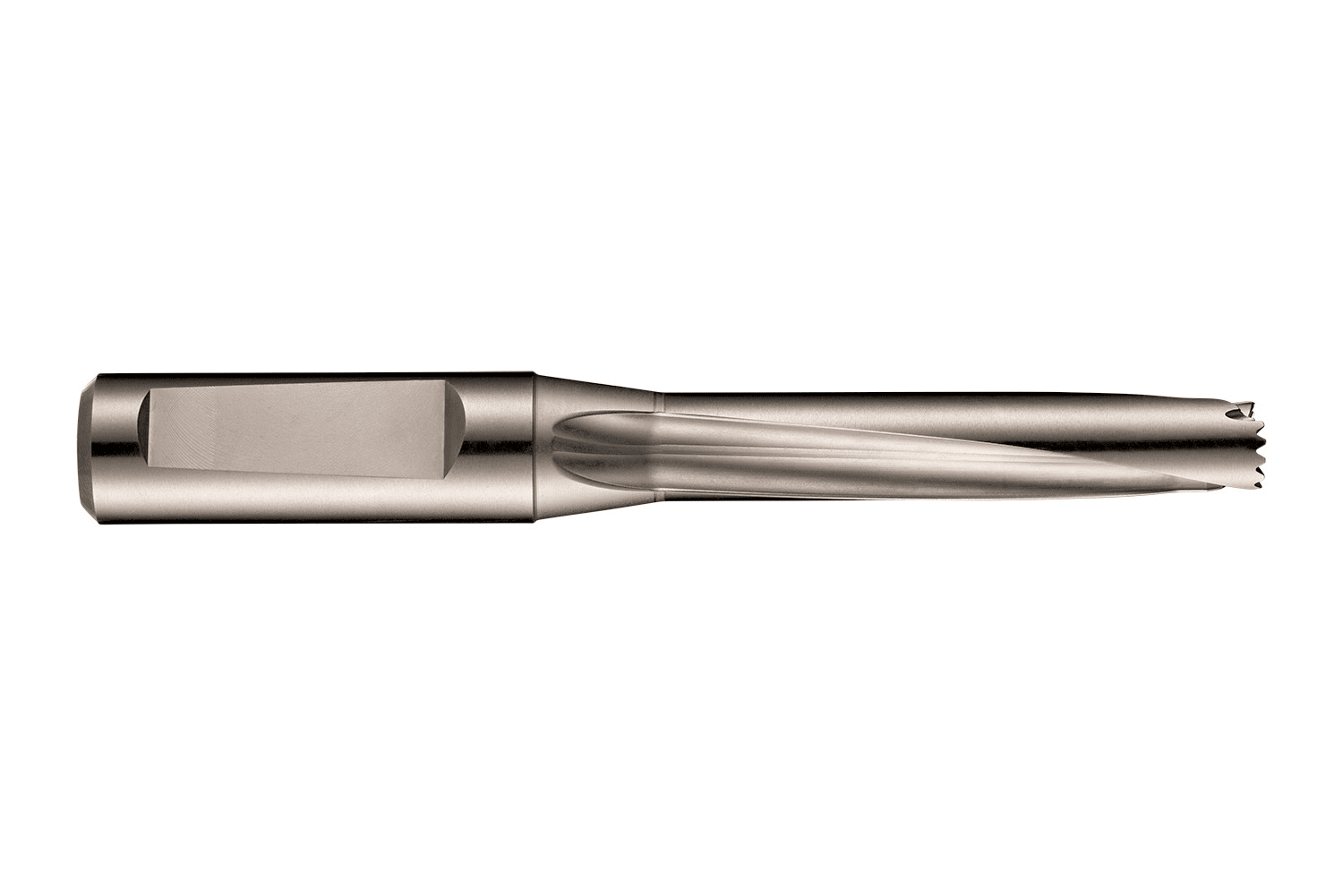

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 23.0mm with an overall length of 210.5mm and flute length of 129.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 23 up to 23.5mm
- Product Name ISO: H85523.0
- Ordering Code ANSI: H85523.0
- EDP Number: 0018583
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

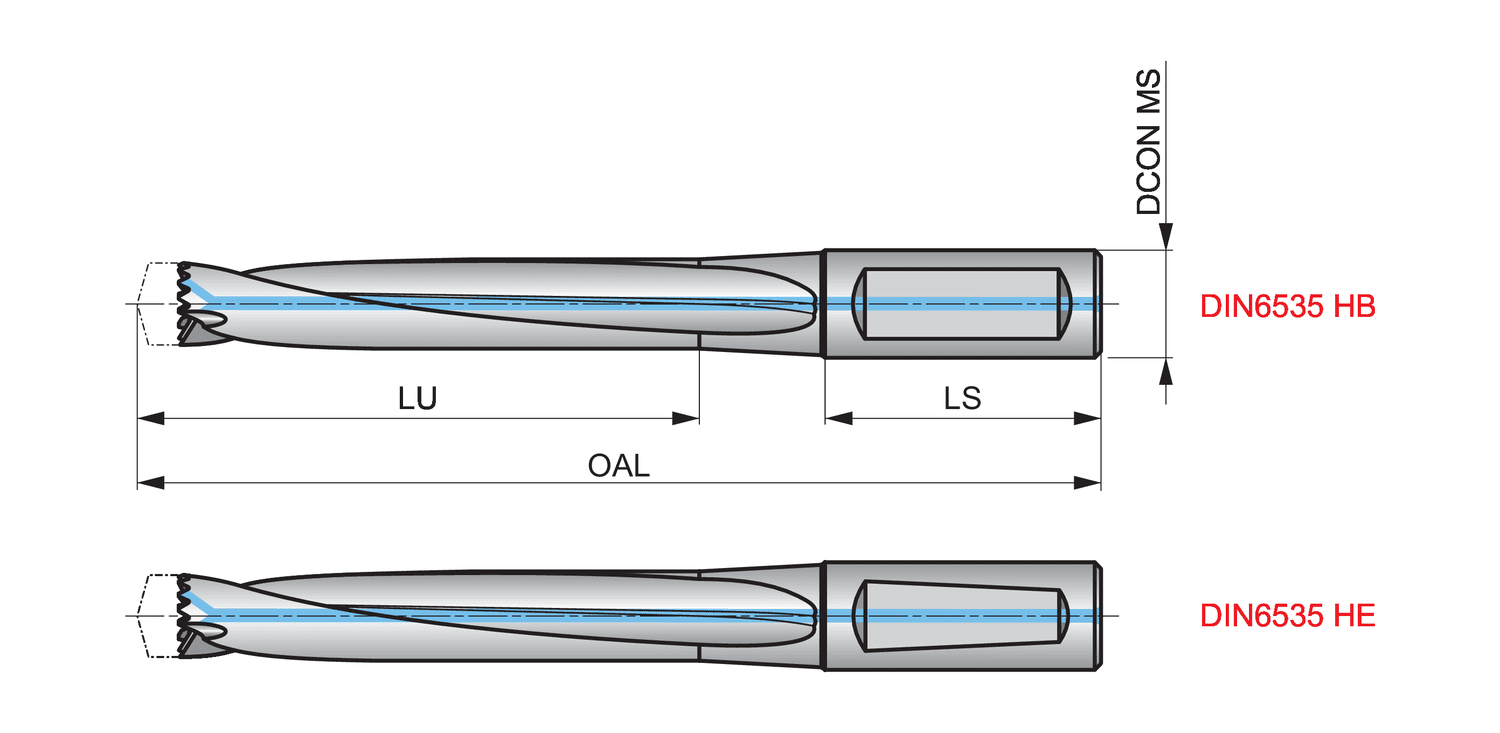

| Connection Diameter (Mm.) | 25 |
| Overall Length (Mm.) | 210.5 |
| Usable Length (Mm.) | 129.5 |
| Shank Length (Mm.) | 56 |
| Connection Diameter (In.) | 0.9843 |
| Overall Length (In.) | 8.2874 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
