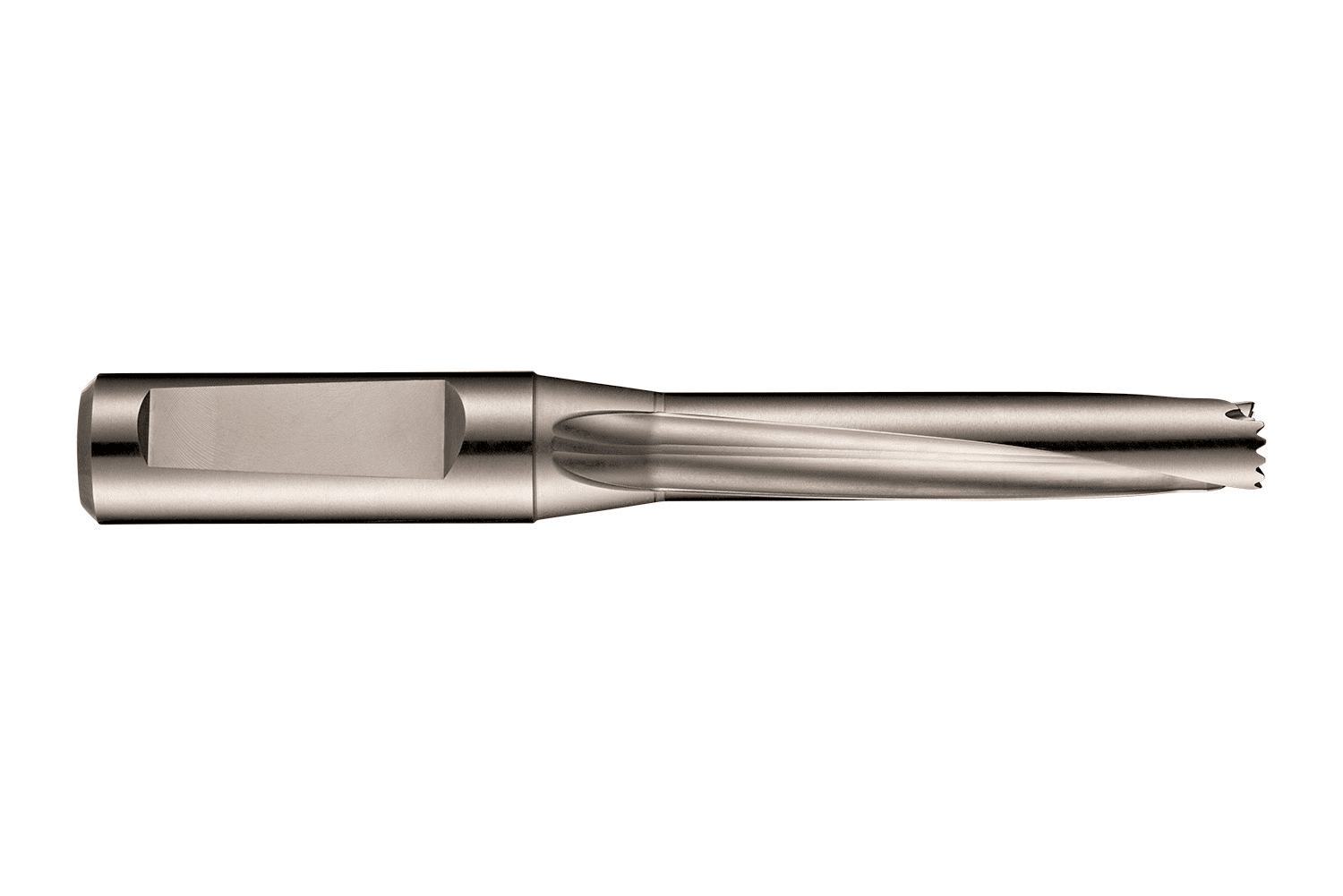

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 31/64" with an overall length of 130mm and flute length of 69mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.4688 (15/32) up to 0.4844" (31/64)
- Product Name ISO: H85531/64
- Ordering Code ANSI: H85531/64
- EDP Number: 0033586
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 15.88 |
| Overall Length (Mm.) | 130 |
| Usable Length (Mm.) | 69 |
| Shank Length (Mm.) | 48 |
| Connection Diameter (In.) | 0.625 |
| Overall Length (In.) | 5.1181 |
| Material Code | HSS |
| Coating | Nickel Plated |

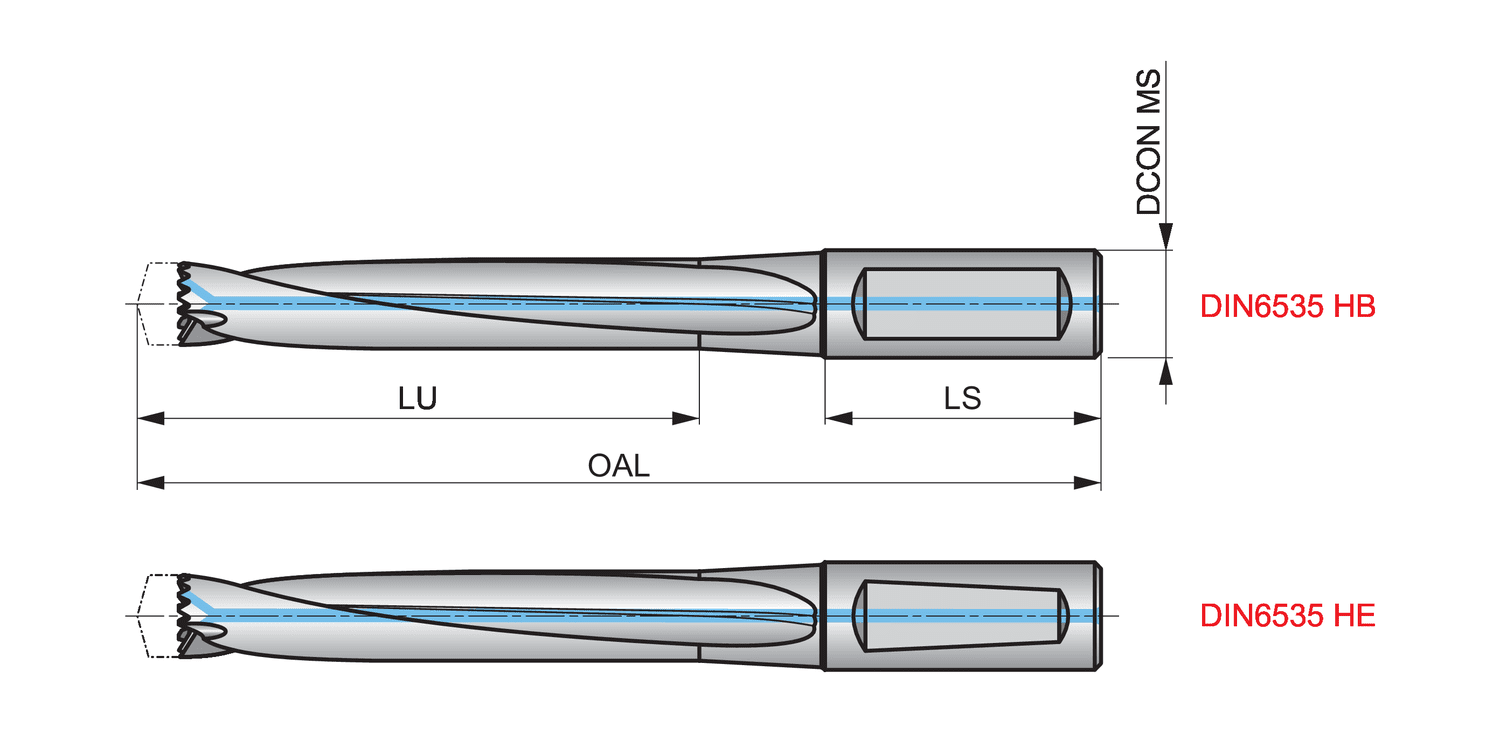

| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
