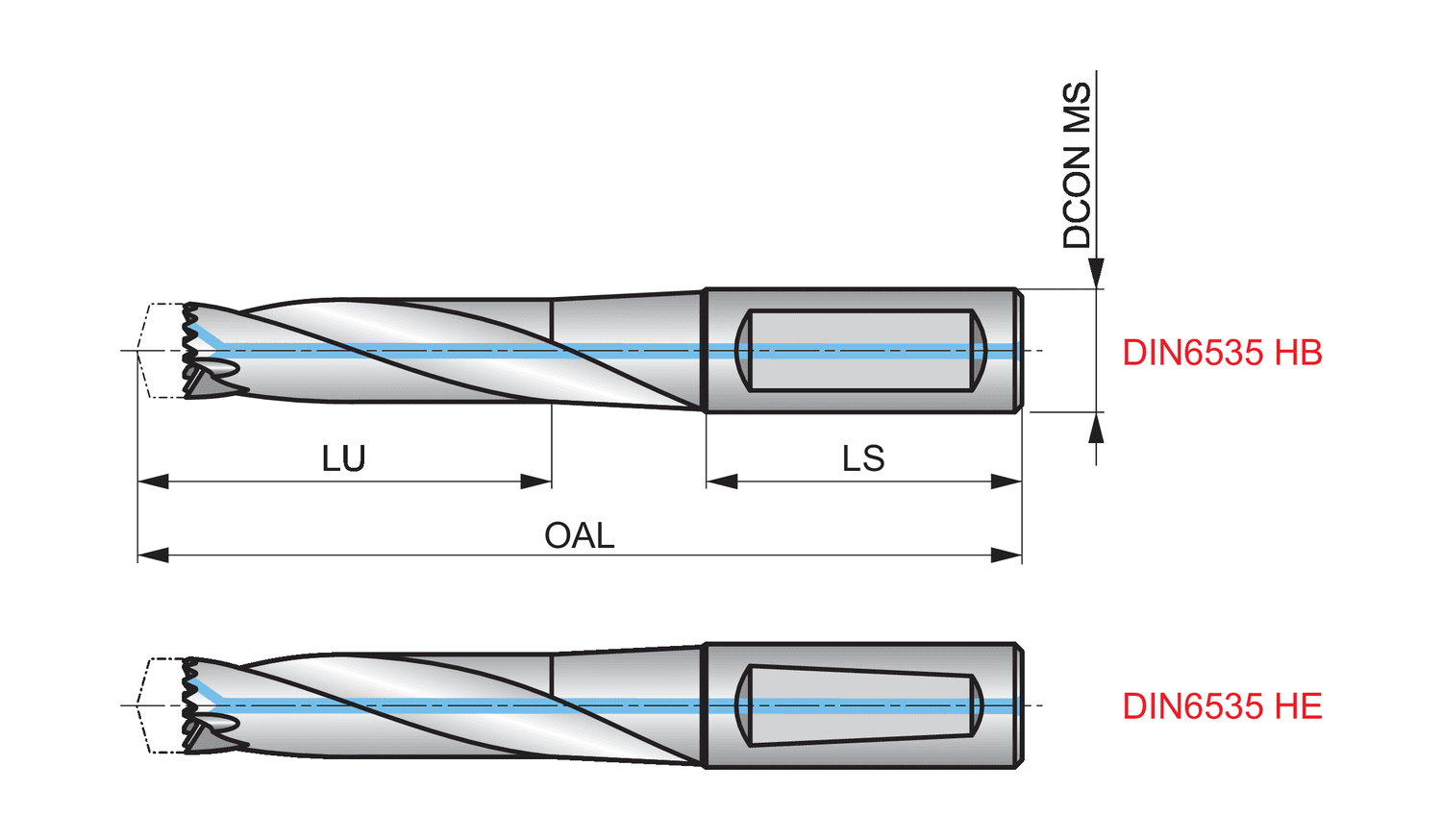

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 39/64" with an overall length of 126.5mm and flute length of 55.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5748 up to 0.6102"
- Product Name ISO: H85339/64
- Ordering Code ANSI: H85339/64
- EDP Number: 0033081
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 19.05 |
| Overall Length (Mm.) | 126.5 |
| Usable Length (Mm.) | 55.5 |
| Shank Length (Mm.) | 50 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 4.9803 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
