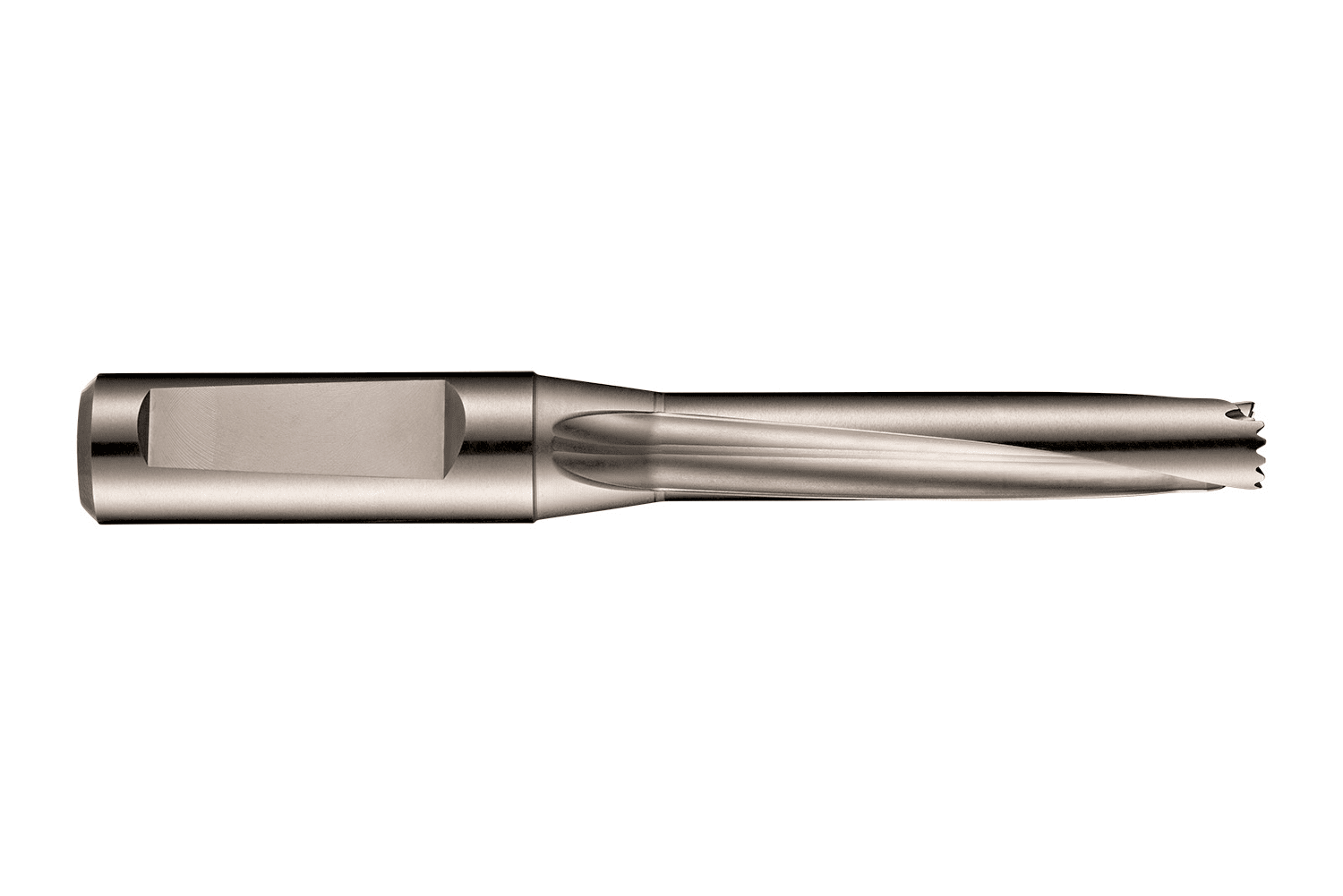

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 57/64" with an overall length of 201.1mm and flute length of 125.1mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.8594 (55/64) up to 0.8937"
- Product Name ISO: H85557/64
- Ordering Code ANSI: H85557/64
- EDP Number: 0034835
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 201.1 |
| Usable Length (Mm.) | 125.1 |
| Shank Length (Mm.) | 56 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 7.9173 |
| Material Code | HSS |
| Coating | Nickel Plated |

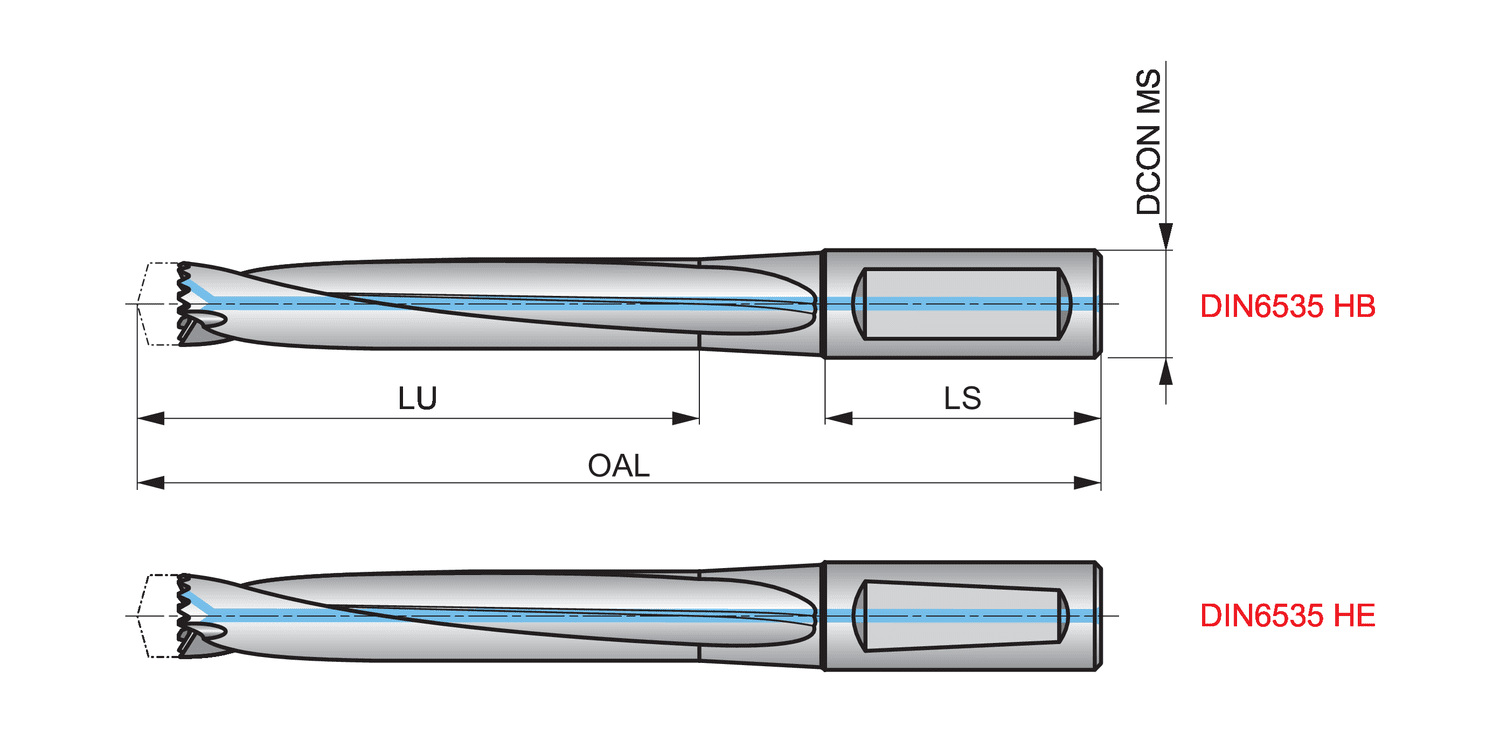

| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
