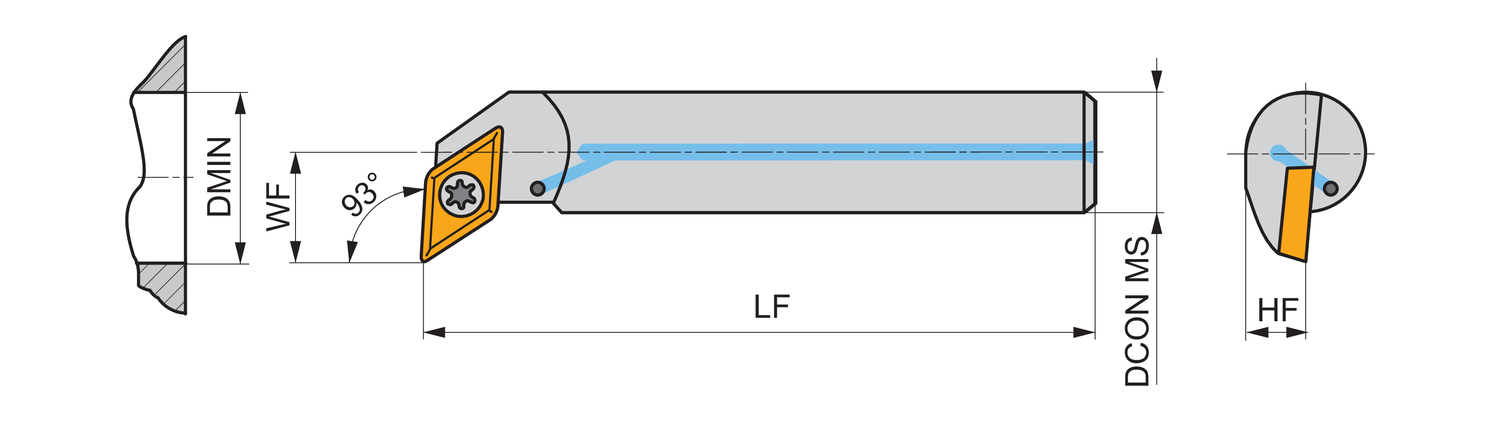

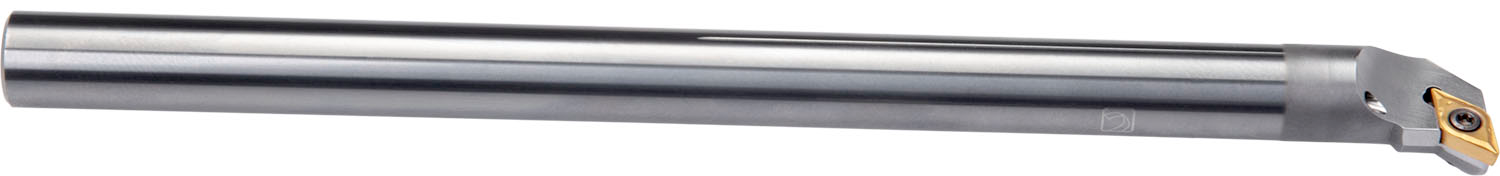

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), left hand 93° end cutting with off-set shank, carbide with coolant hole, 16mm diameter x 200mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

• Product Name ISO: E16R-SDUCL 07-ER
• Ordering Code ANSI: E16R-SDUCL 07-ER
• EDP Number: 6760506
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
