Screw Clamp Boring Bar for Holding A 80° Rhombic Shape Pos Insert with an ICD 6.35mm, 2.38mm Thick, Right Hand

Boring System - Boring Bar ISO S (EDP Number: 6760715)

SKU	6760715
MPN	6760715
Weight	0.20 lb
Width	3.15 inch
Length	1.89 inch
Height	1.89 inch

$149.99 excl tax

excl. VAT plus shipping

Order within 21 hrs 9 mins and this product can SHIP ON Saturday, July 05!

Add to cart

Add to List

Compare

Questions?

Email a friend

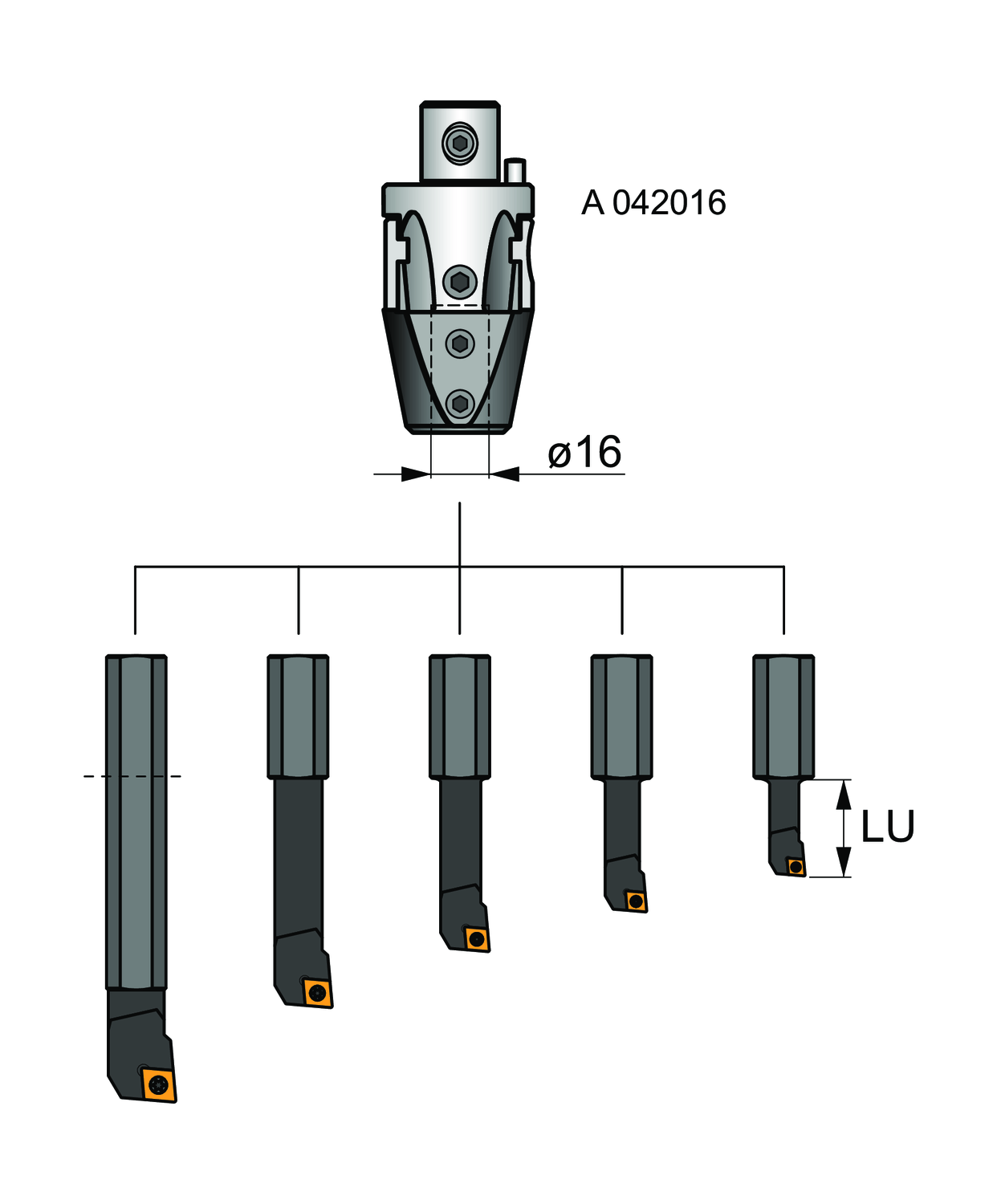

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 8mm diameter 35mm protrusion length for cone boring and longitudinal boring with and without shoulder

Product Name ISO: S08/16 SCLCR 06
Ordering Code ANSI: S08/16 SCLCR 06
EDP Number: 6760715

Quick Ship Items	No, but I will Ship Soon
Product Measurement Standard	Metric
Usable Length (Mm.)	35
