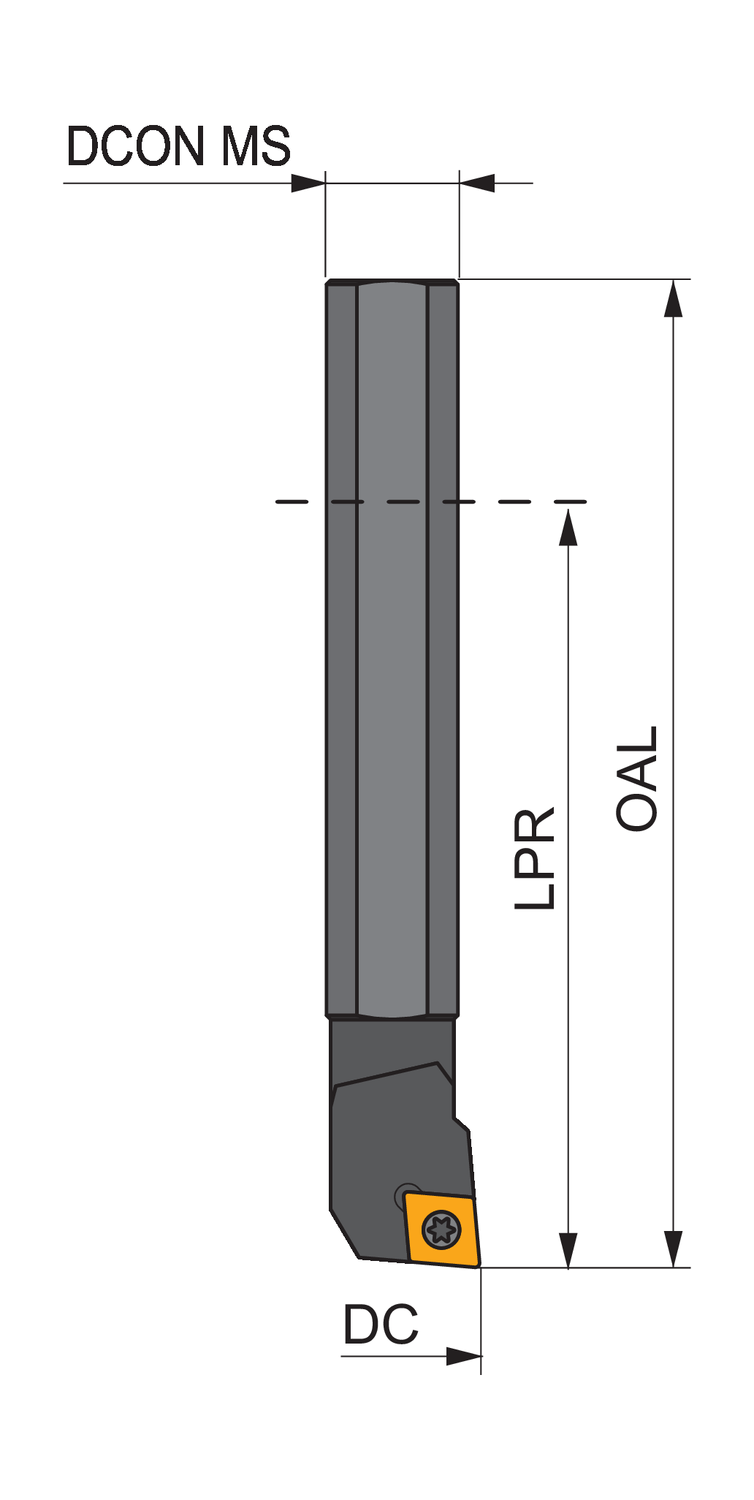

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 10mm diameter 54mm protrusion length for cone boring and longitudinal boring with and without shoulder
- Product Name ISO: S10G SCLCR 06-B
- Ordering Code ANSI: S10G SCLCR 06-B
- EDP Number: 6760720
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 13 |
| Cutting Diameter (In.) | 0.512 |
| Connection Diameter (Mm.) | 10 |
| Overall Length (Mm.) | 90 |
| Connection Diameter (In.) | 0.394 |
| Overall Length (In.) | 3.543 |
