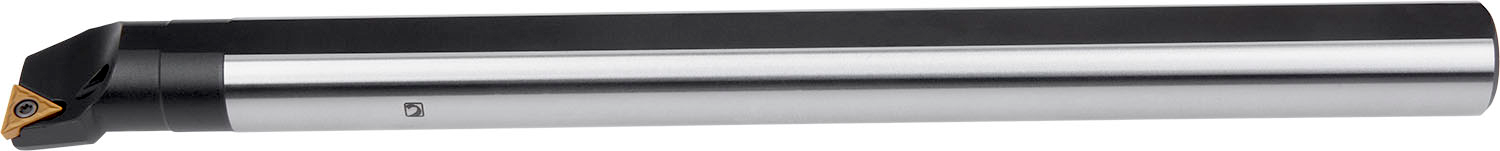

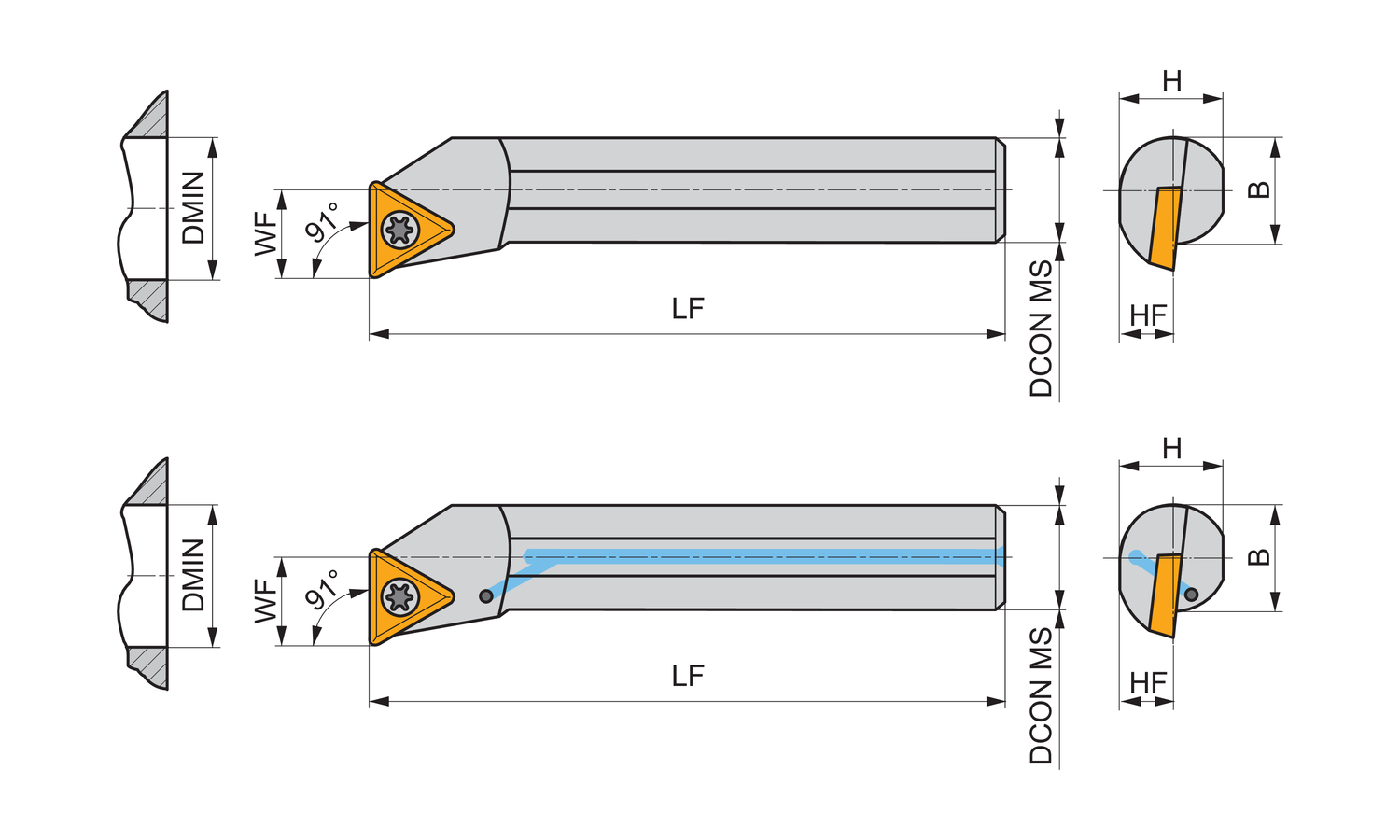

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 1/4'', 3/32'' thick (ANSI designation TC.. 21.5. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 5/8'' diameter x 8'' long for taper boring and longitudinal boring with and without shoulder

• Product Name ISO: A10R-STFCR 2
• Ordering Code ANSI: A10R-STFCR 2
• EDP Number: 6788462
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
