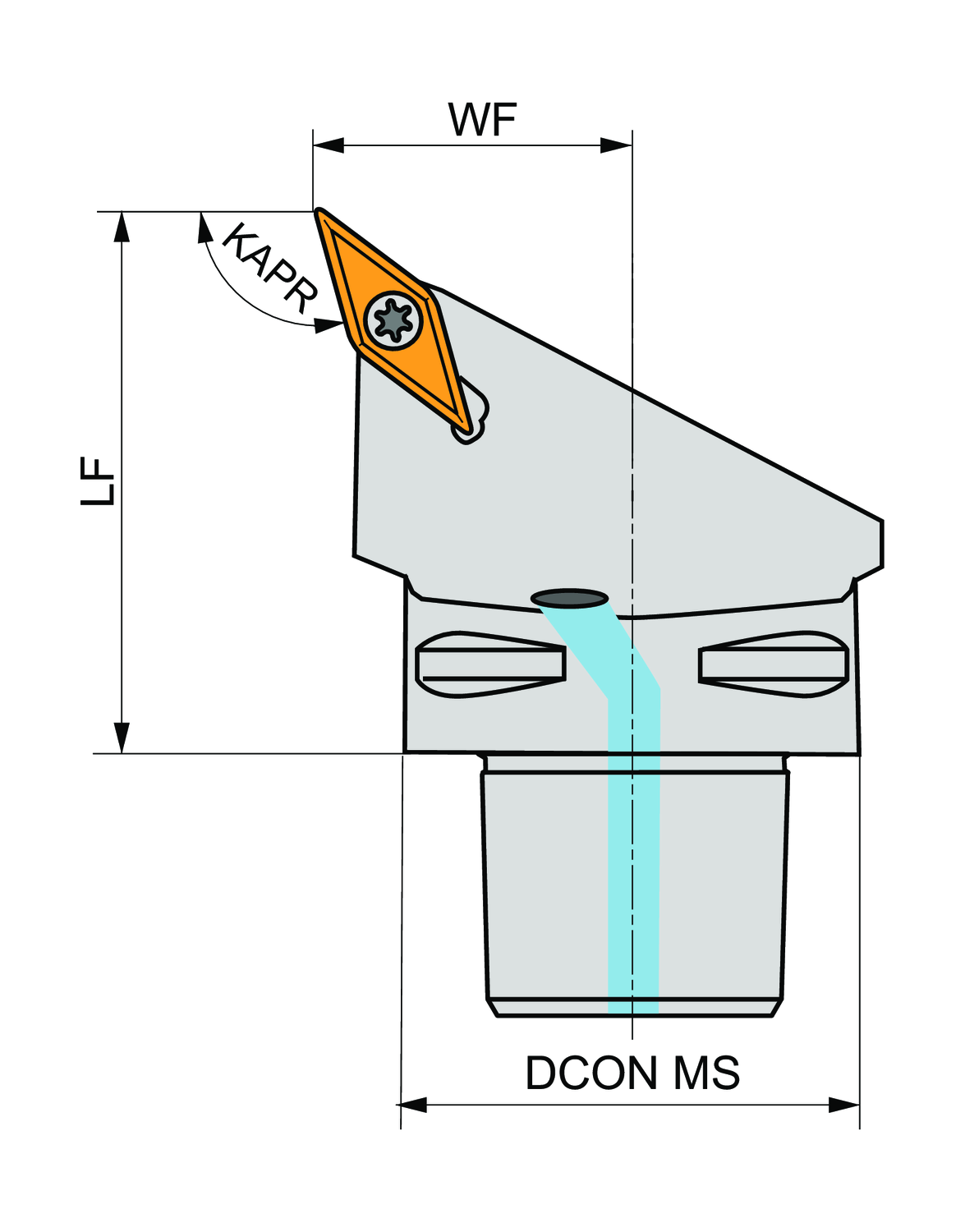

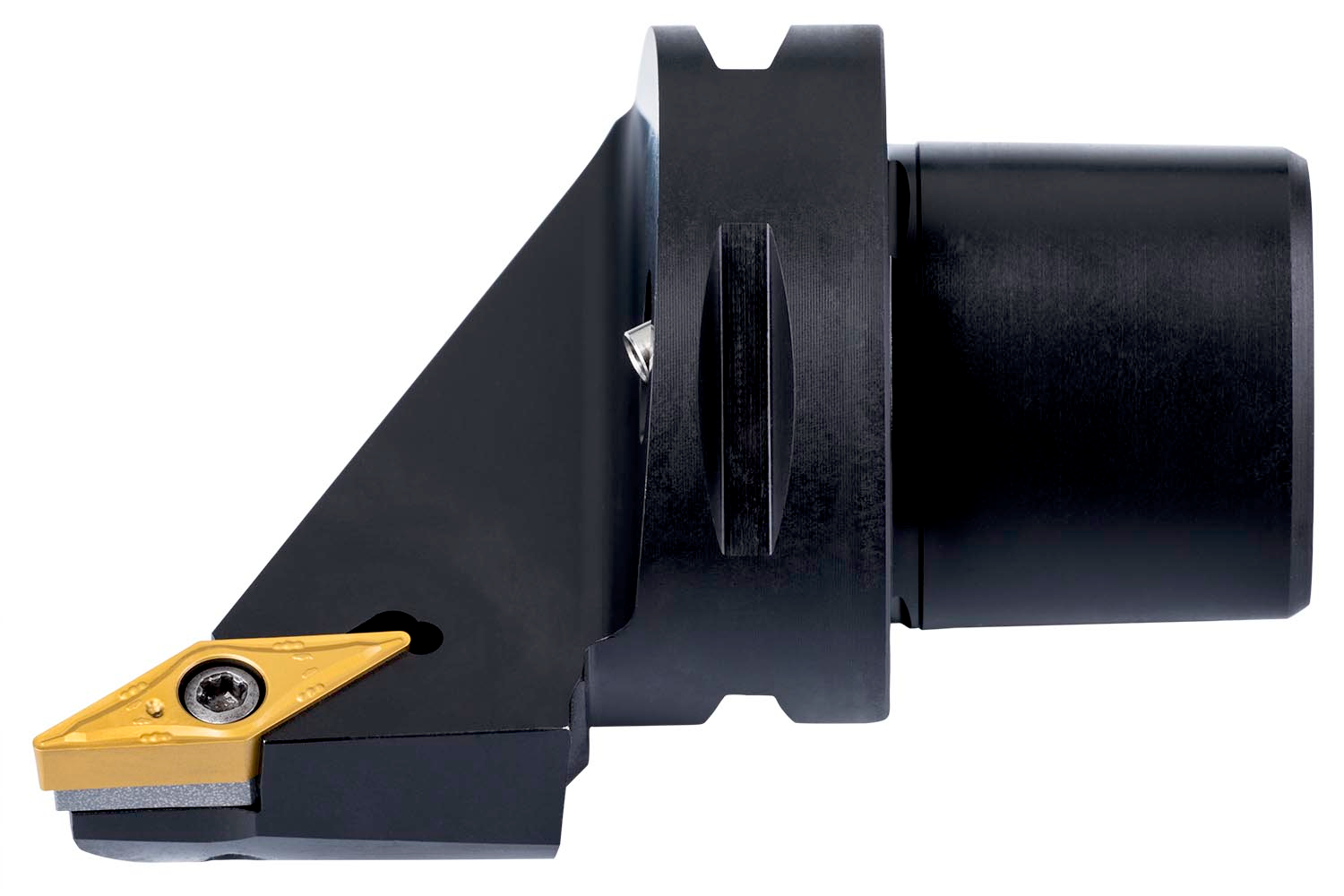

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 107°30' side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 35mm funtional width and 60mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

• Product Name ISO: C5-SVHBR-35060-16
• Ordering Code ANSI: C5-SVHBR-35060-16
• EDP Number: 7809847
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
