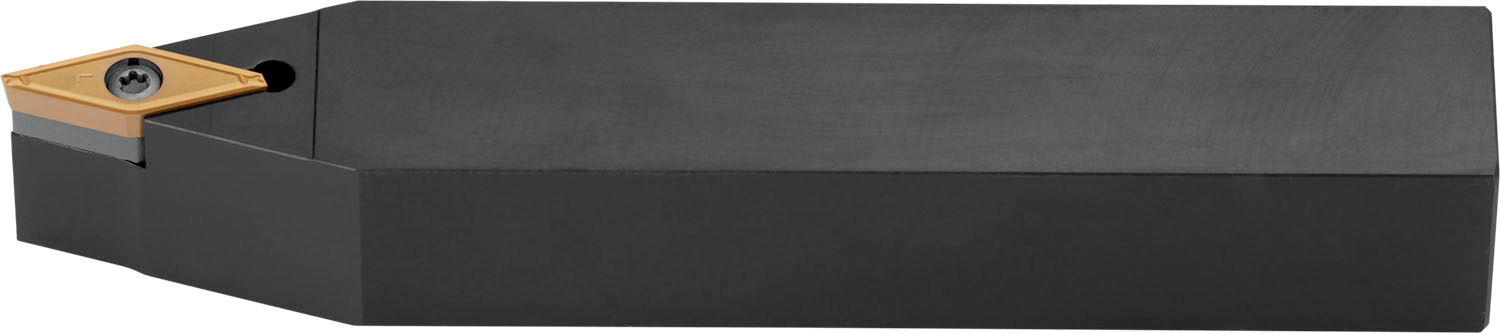

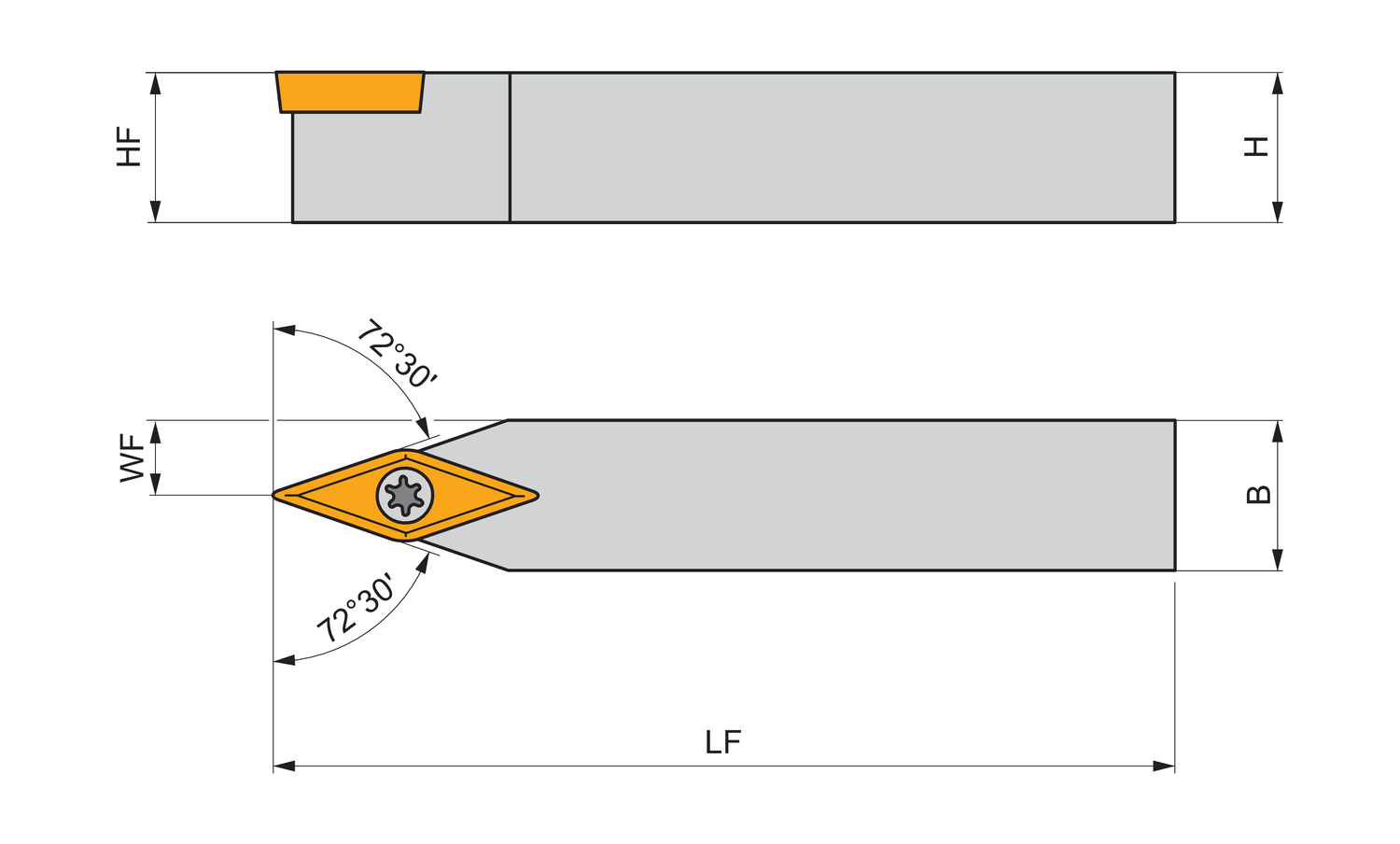

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation VB.. 33. ), neutral hand 72°30' side cutting with straight shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

• Product Name ISO: SVVBN 20 3D
• Ordering Code ANSI: SVVBN 20 3D
• EDP Number: 6788700
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
