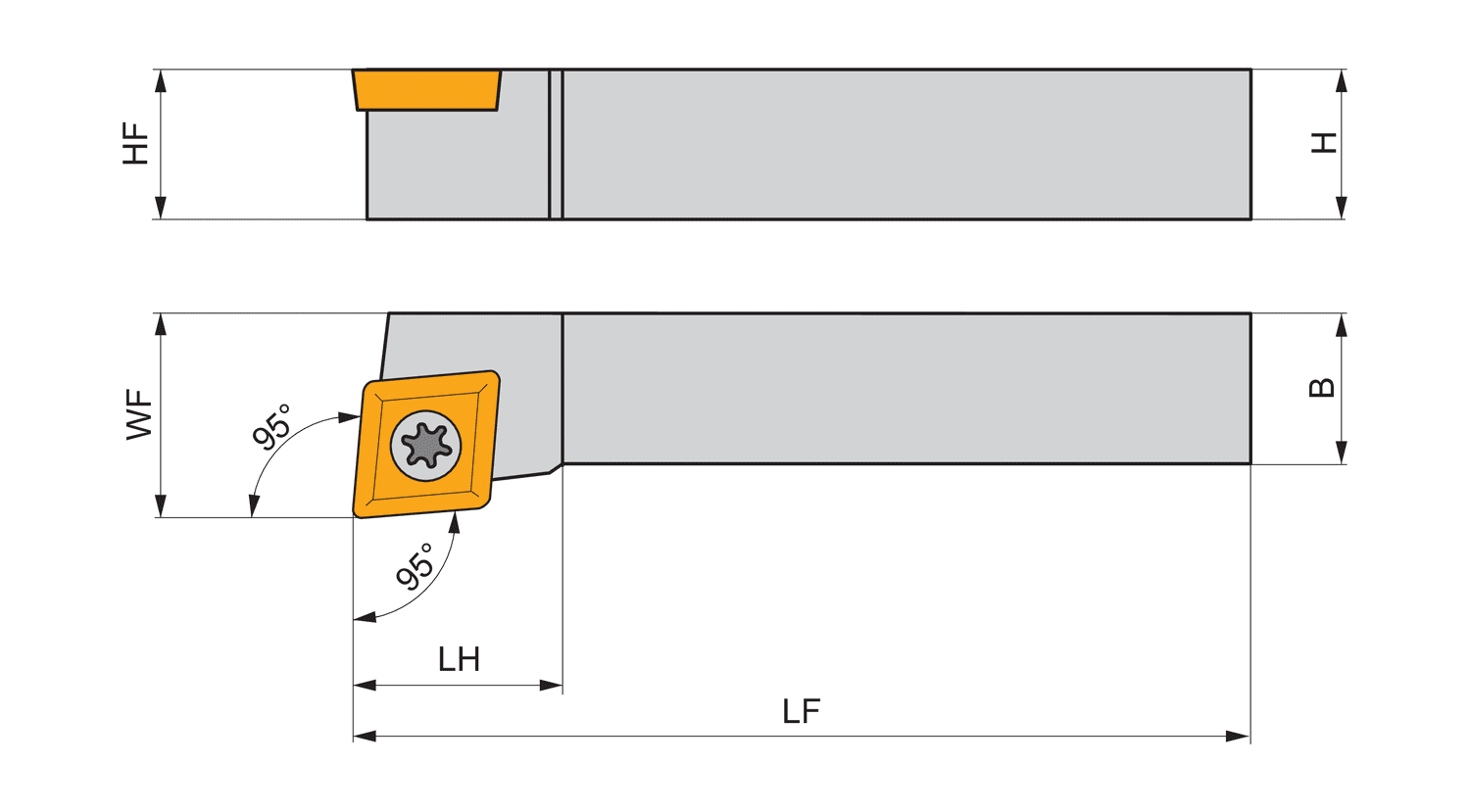

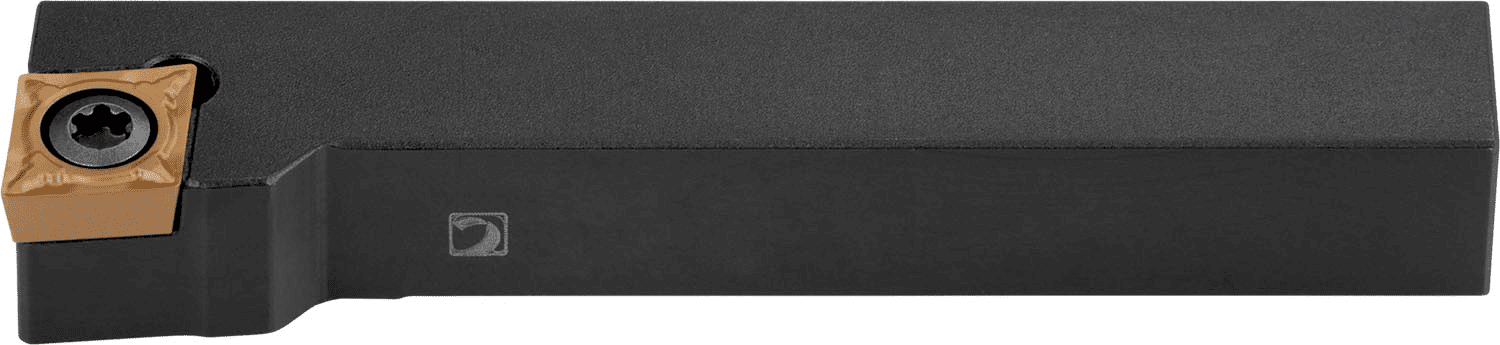

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CC.. 43. ), right hand 95° side and end cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

• Product Name ISO: SCLCR 12 4B
• Ordering Code ANSI: SCLCR 12 4B
• EDP Number: 6788659
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
