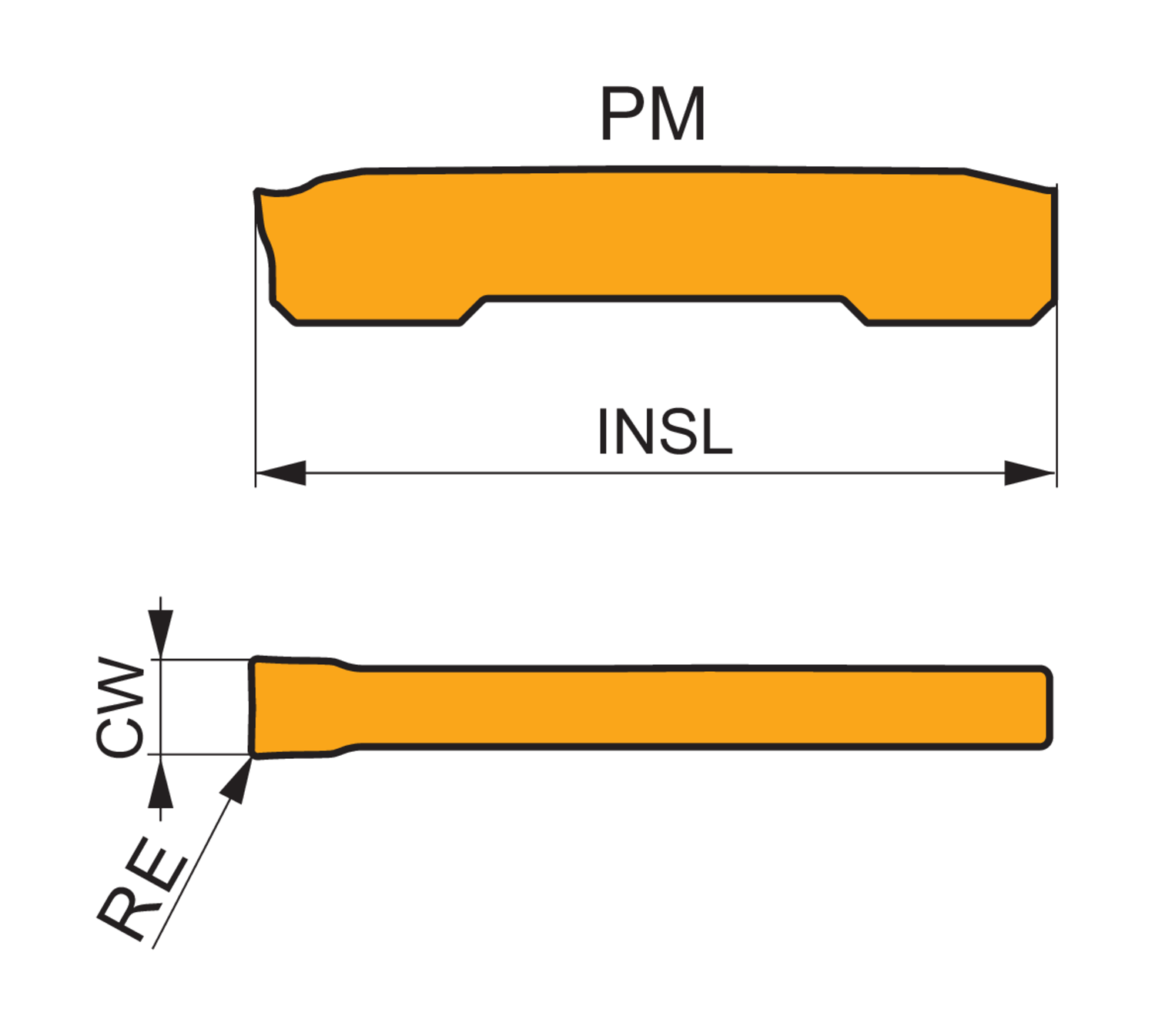

Single ended parting and grooving insert, 0.957 inch long with a 0.157 inch cutting width and 0.008 inch corner radii. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P40 and M20 -M35 for machining of steel and stainless-steel. PM geometry with highly positive rake on single sided insert, first choice for deep parting-off, and continuous to slightly interrupted cuts.
- Product Name ISO: GL4-S400M02-PM:G8330
- Ordering Code ANSI: GL4-S400M02-PM:G8330
- EDP Number: 8178697
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.2 |
| Insert Length (Mm.) | 24.3 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
