Single-sided milling insert ADEX 11T3, 85° parallelogram and high-feed design for a maximum depth of cut of .0236", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with shoulder mills SAD11E
- Product Name ISO: ADEX 11T308SR-HF:8215
- Ordering Code ANSI: ADEX 11T308SR-HF:8215
- EDP Number: 6800779
- Coating: 8215
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

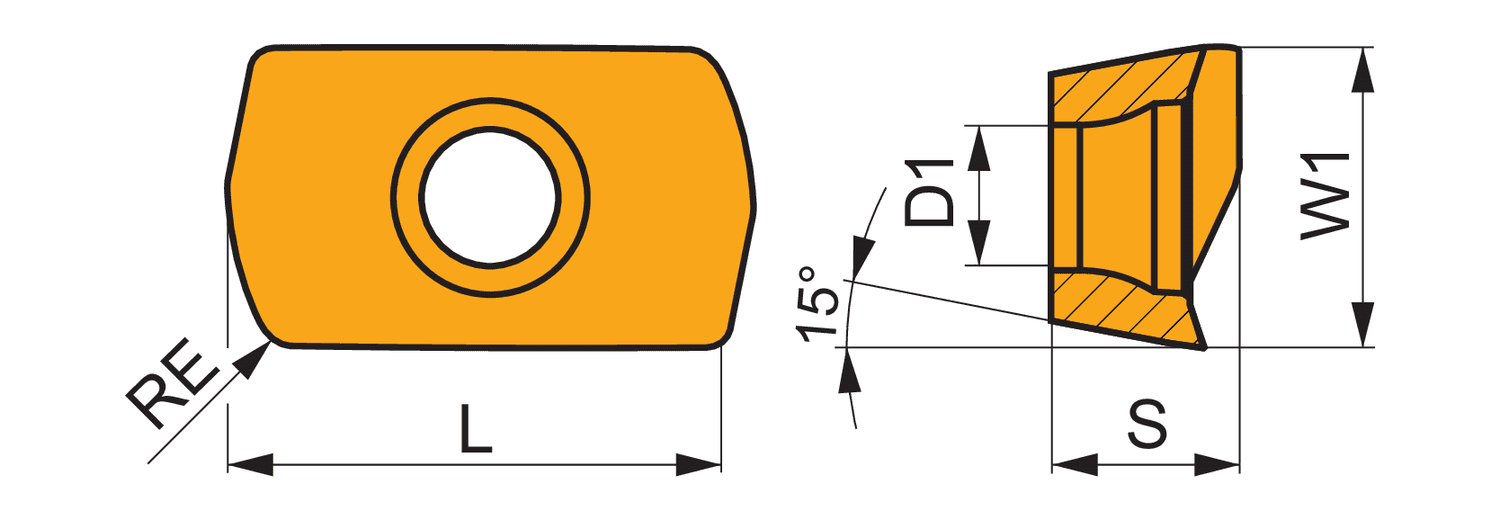

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 0.6 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.82 |
| Insert Width (Mm.) | 6.45 |
| Max Depth of Cut (In.) | 0.024 |
| Coating | 8215 |
