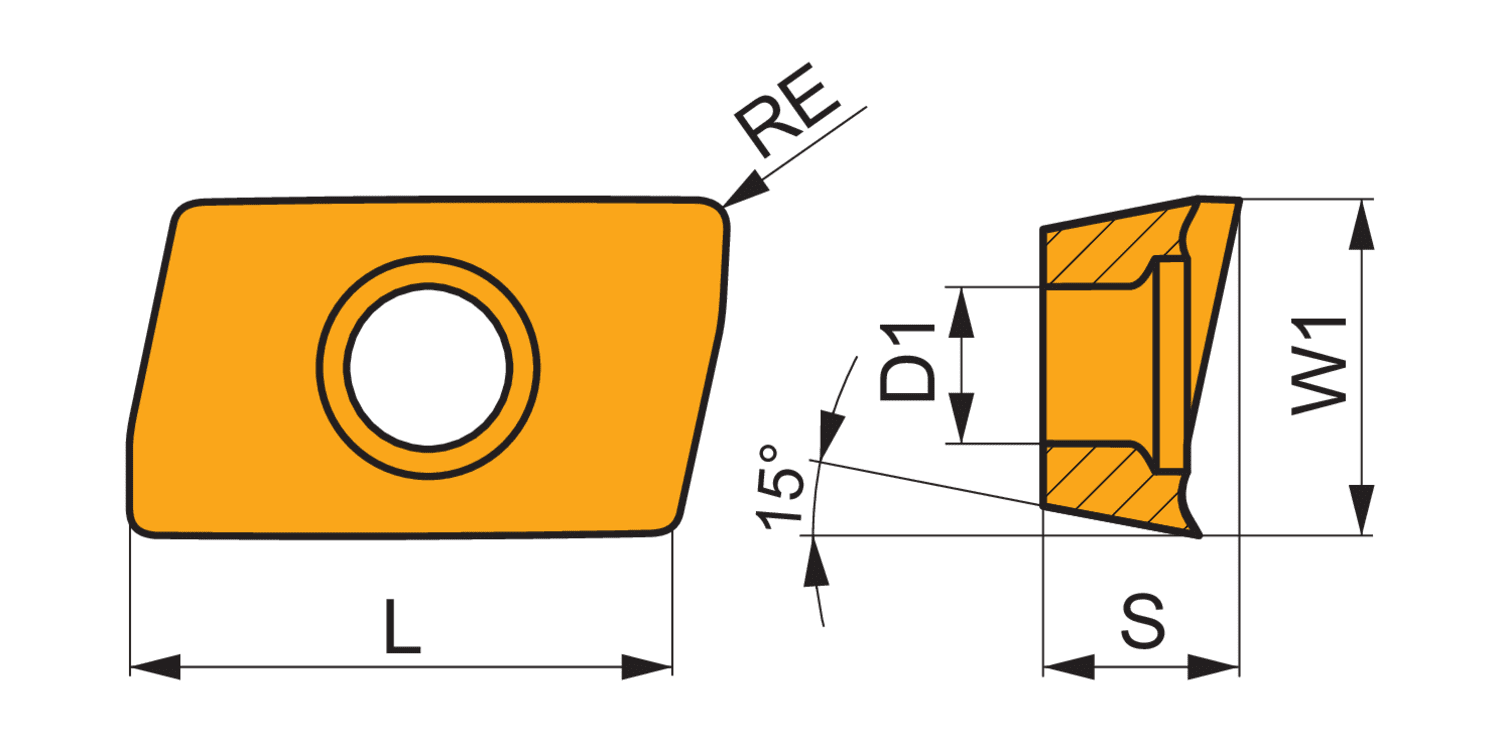

Single-sided milling insert ADEX 11T3, 85° parallelogram for a maximum depth of cut of .3543", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
- Product Name ISO: ADEX 11T316FR-FA:HF7
- Ordering Code ANSI: ADEX 11T316FR-FA:HF7
- EDP Number: 6754620
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.91 |
| Insert Width (Mm.) | 6.45 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | HF7 |
