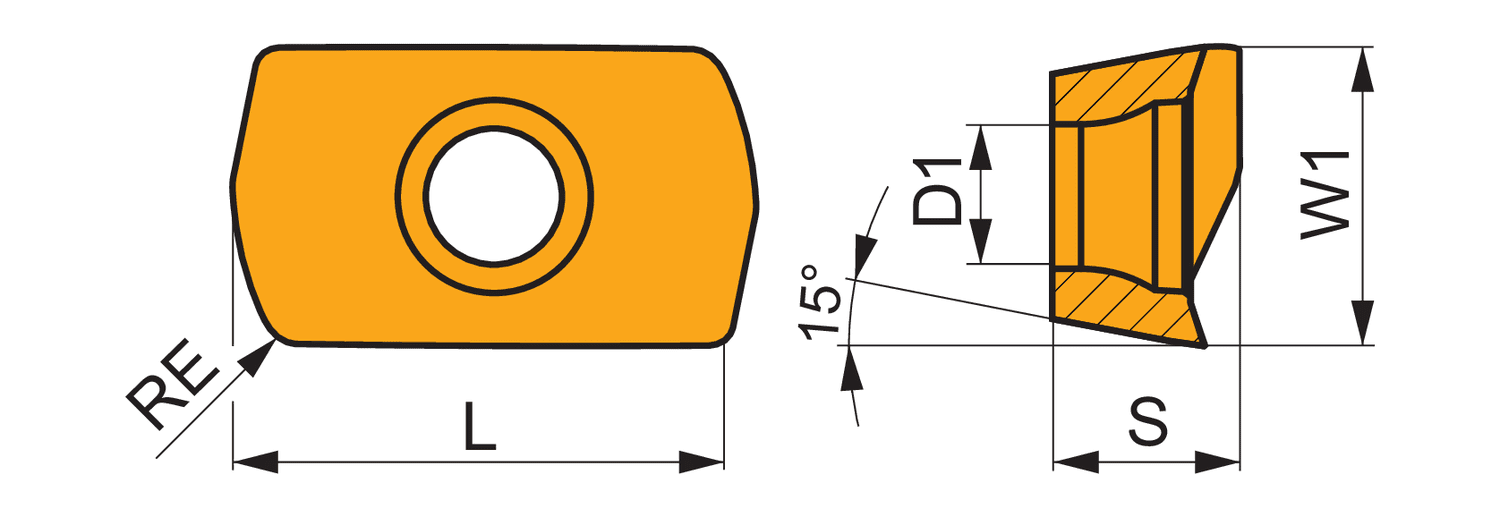

Single-sided milling insert ADEX 1606, 85° parallelogram and high-feed design for a maximum depth of cut of .0512", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAD16E
- Product Name ISO: ADEX 160612SR-HF:M8340
- Ordering Code ANSI: ADEX 160612SR-HF:M8340
- EDP Number: 6838416
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.3 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 5.88 |
| Insert Width (Mm.) | 9.95 |
| Max Depth of Cut (In.) | 0.051 |
| Coating | M8340 |
