Single-sided milling insert ADMX 0702, 85° parallelogram for a maximum depth of cut of .1969", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with shoulder mills SAD07D
- Product Name ISO: ADMX 070208SR-M:M8310
- Ordering Code ANSI: ADMX 070208SR-M:M8310
- EDP Number: 6922515
- Coating: M8310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

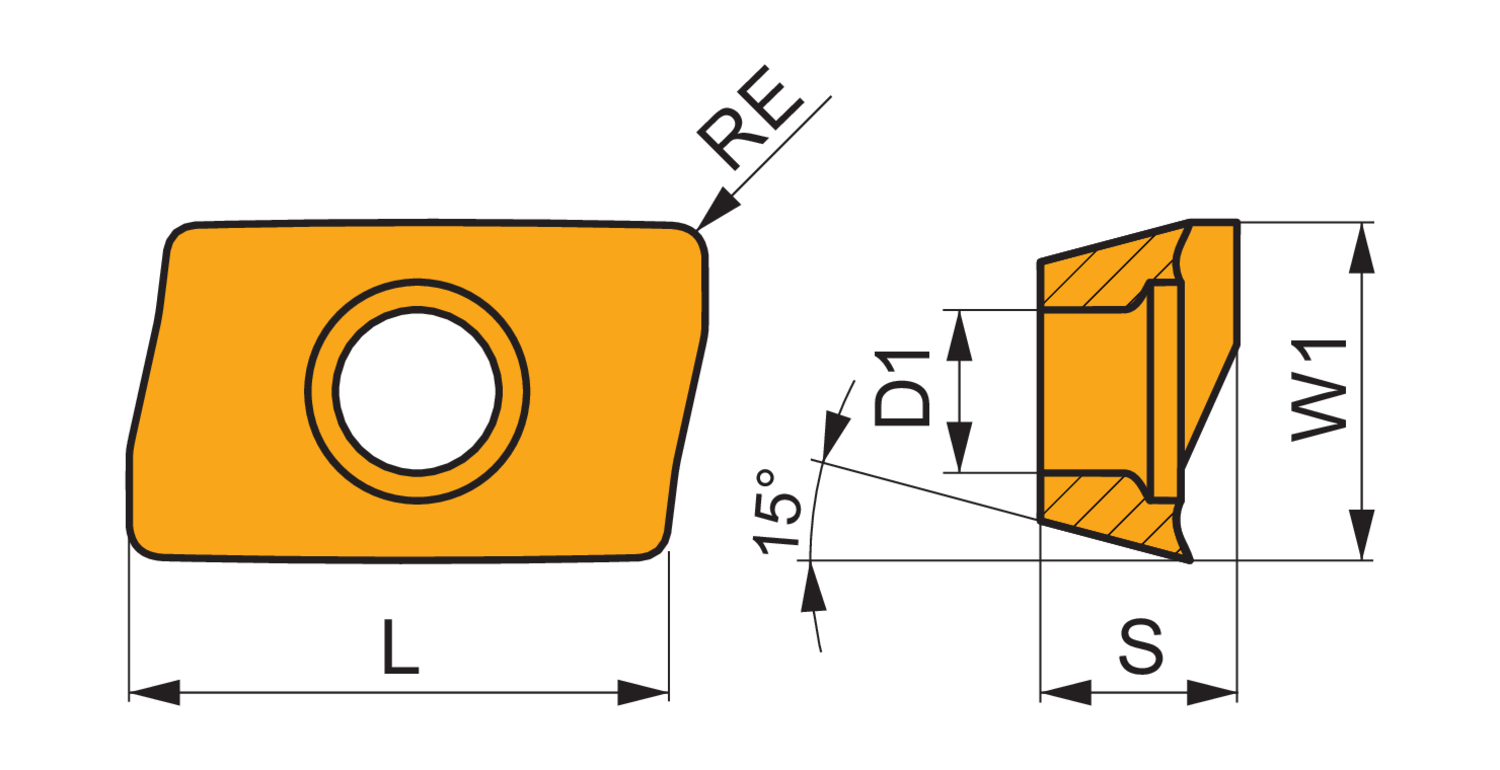

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Insert Thickness (Mm.) | 2.48 |
| Insert Width (Mm.) | 4.482 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M8310 |
